Có thể bán buôn Khuếch đại tín hiệu RF băng rộng 5M-5GHz Tăng Khuếch đại băng thông rộng 19dB @ 2G Hàng giao ngayWestvirginia058
Mô tả ngắn
Dụng cụ và thiết bị tiện ích > Thiết bị mạch điện > Thiết bị mạch điện khác > 💯Có thể bán buôn😁 Khuếch đại tín hiệu RF băng rộng 5M-5GHz Tăng Khuếch đại băng thông rộng 19dB @ 2G 💖Hàng giao ngay💖Westvirginia058
- Giao hàng toàn quốc
- Được kiểm tra hàng
- Thanh toán khi nhận hàng
- Chất lượng, Uy tín
- 7 ngày đổi trả dễ dàng
- Hỗ trợ xuất hóa đơn đỏ
Sản phẩm tương tự
Giới thiệu Có thể bán buôn Khuếch đại tín hiệu RF băng rộng 5M-5GHz Tăng Khuếch đại băng thông rộng 19dB @ 2G Hàng giao ngayWestvirginia058
@Dear master, it's been a long time for you, welcome to Xiaoer's industrial shop *westvirginia058*❥(^_-)Welcome the owner to pay attention to Xiaoer's industrial shop, we will have more and more exquisite gifts waiting for the owner❥(^_-)
❥#This shop has enough stock, the owner can add and place an order if he finds his favorite products. The owner is also welcome to collect this shop#❥
%#After the owner places the order, Xiaoer will deliver the goods quickly#The quality and quantity will be delivered to the owner#%
❥(^_-) If you place an order for this shop again or again, you will get more benefits. Xiaoer looks forward to your additional purchase and order❥(^_-)
------------------------------------Welcome Host-------------------------------------
Seller information & Disclaimer:
Company name：Shenzhen Huotong Bafang Cross-border E-commerce CO., Ltd
Address：Room 310, No 2007, Baoyuan Road, Labor Community, Xixiang Street, Baoan District, Shezhen
Business license number: 91440300MA5G3KT301
Any issue could directly contact us via shop web chat!
Disclaimer: We will take all the responsibility for the goods shipping not Shopee.
Features:

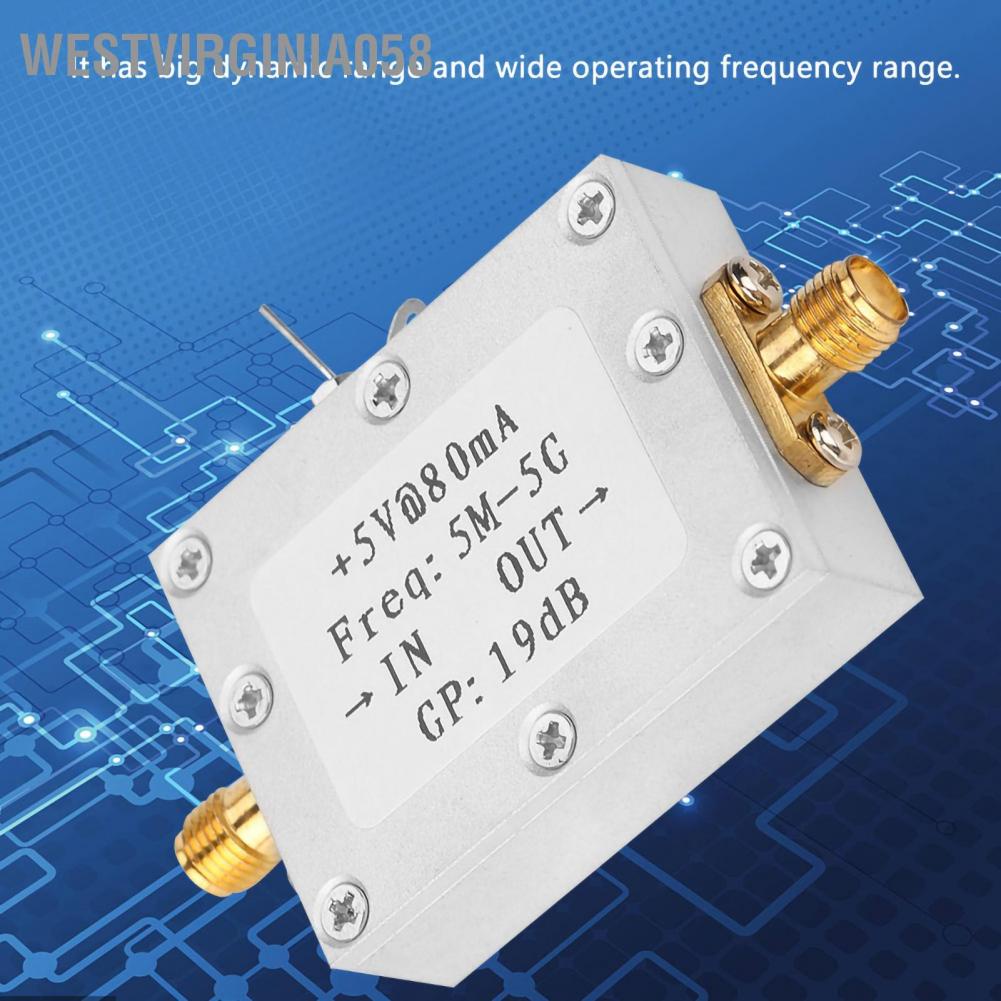

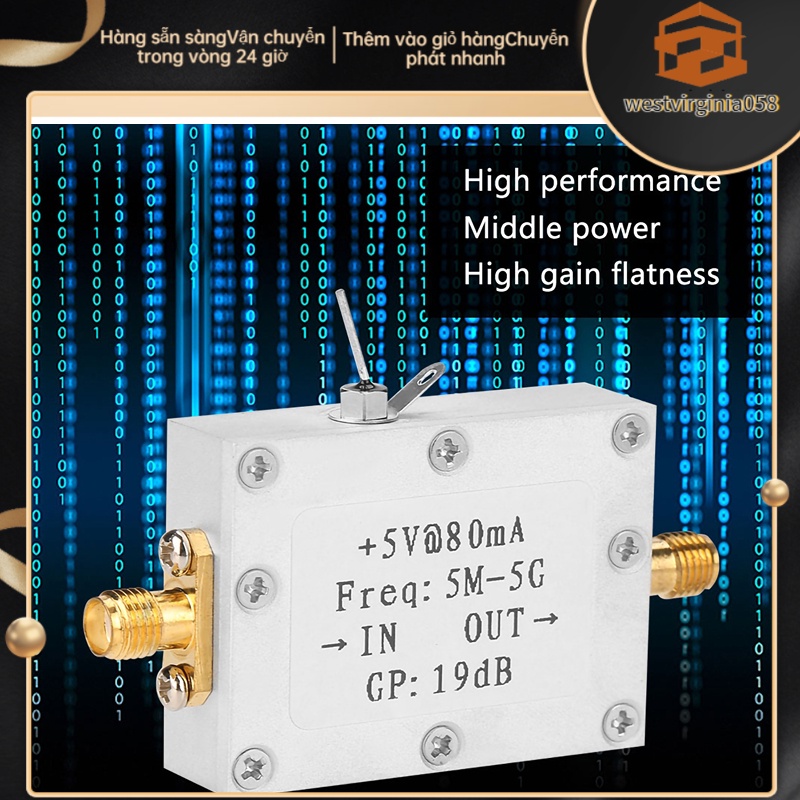

This is a 5M-5GHz RF signal amplifier with 19dB gain.
It has big dynamic range and wide operating frequency range.
The power supply voltage is 5VDC, and working current is 85mA.
Maximum output power is P1db+19dBm at 2GHz.
It is suitable for fixed gain amplification of radio frequency signal.
Specification:
Power Supply Voltage: Typical +5V (typical current 80mA)
Gain: Typical 19dB@2G
Input Output Impedance: 50Ω
Maximum Output Power: P1db+19dBm (@2GHz)
Input Signal: +10dBm, output signal has already been in distortion)
Bandwidth: 5M-5GHZ (gain will differ at different frequency, high gain flatness)
Noise Factor: 4.5dB@1GHz

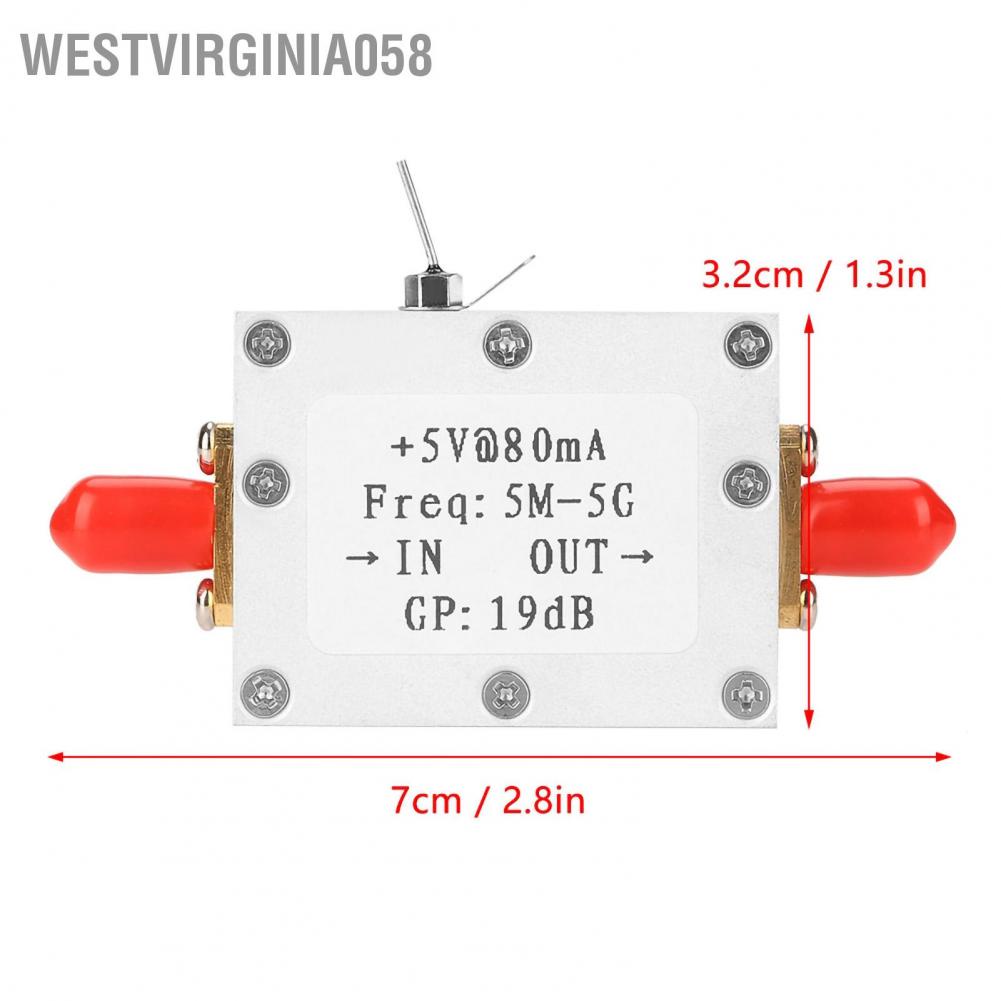

Size: 7*3.2cm / 2.8*1.3in
Weight: 40g / 1.4oz (approx.)
Package List:
1 * Amplifier
Note:

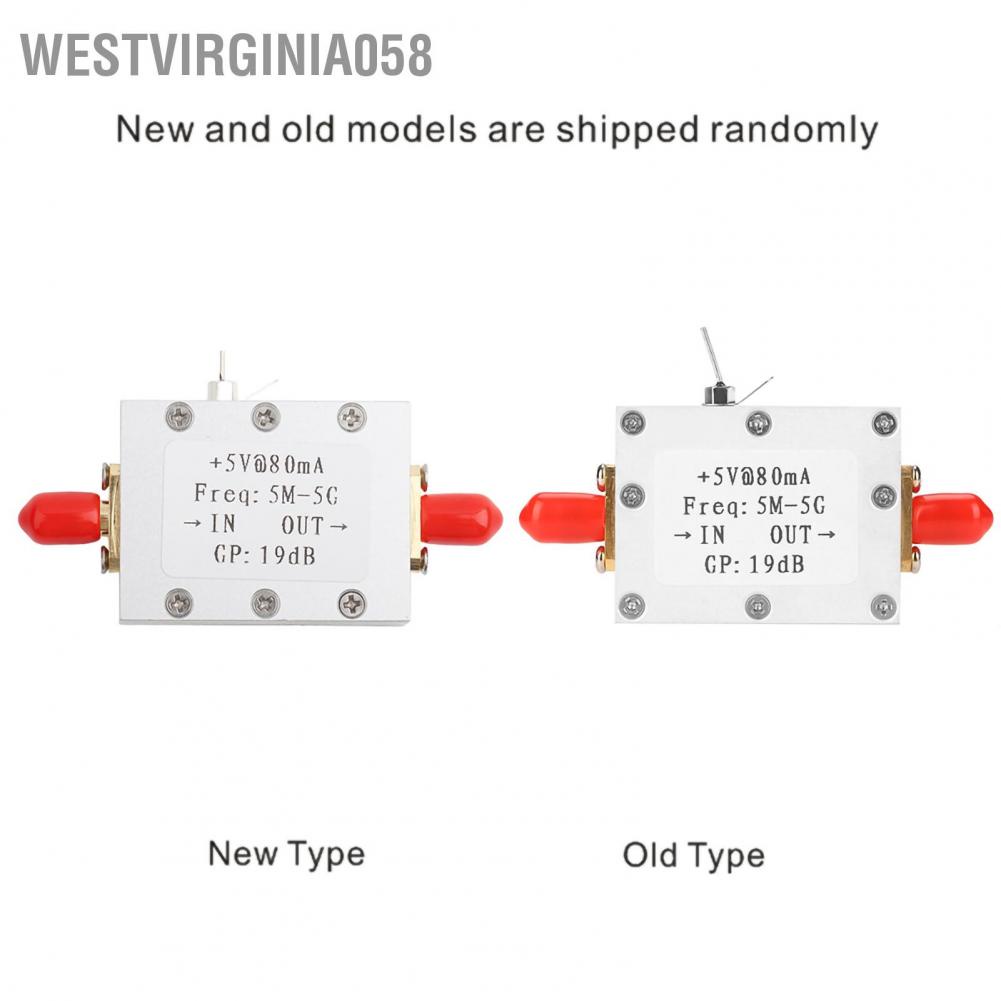

Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
