Dây Dò Cảm Biến Mực Nước Bằng Thép Không Gỉ H2O 5m 5m

Giới thiệu Dây Dò Cảm Biến Mực Nước Bằng Thép Không Gỉ H2O 5m 5m

Description:

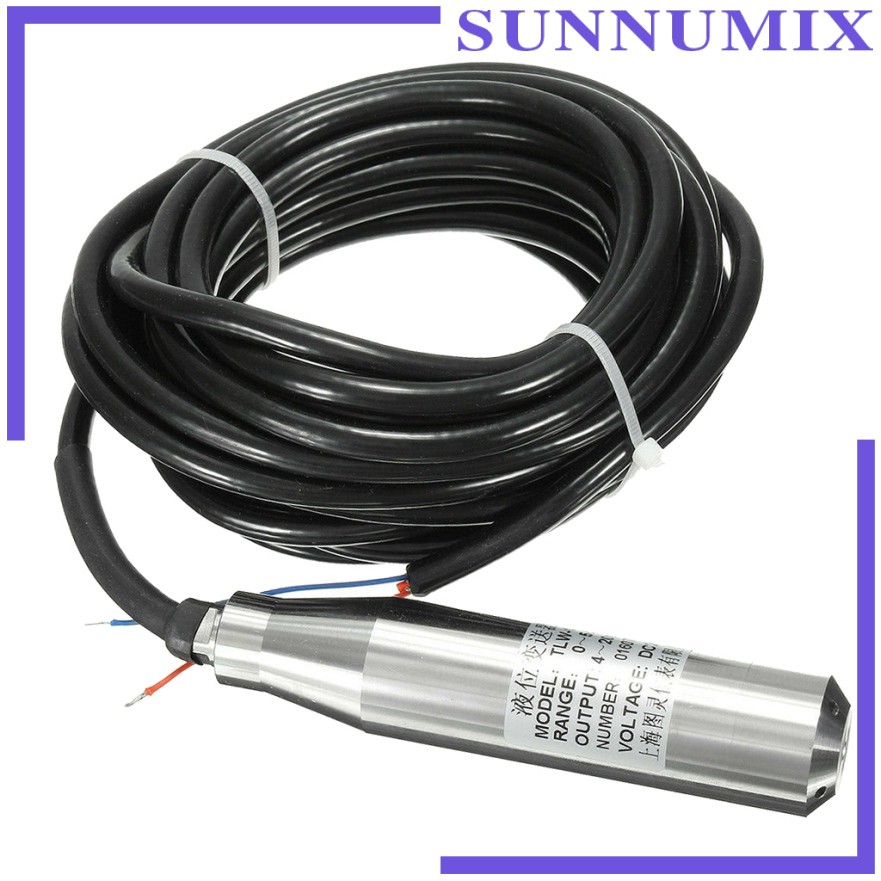

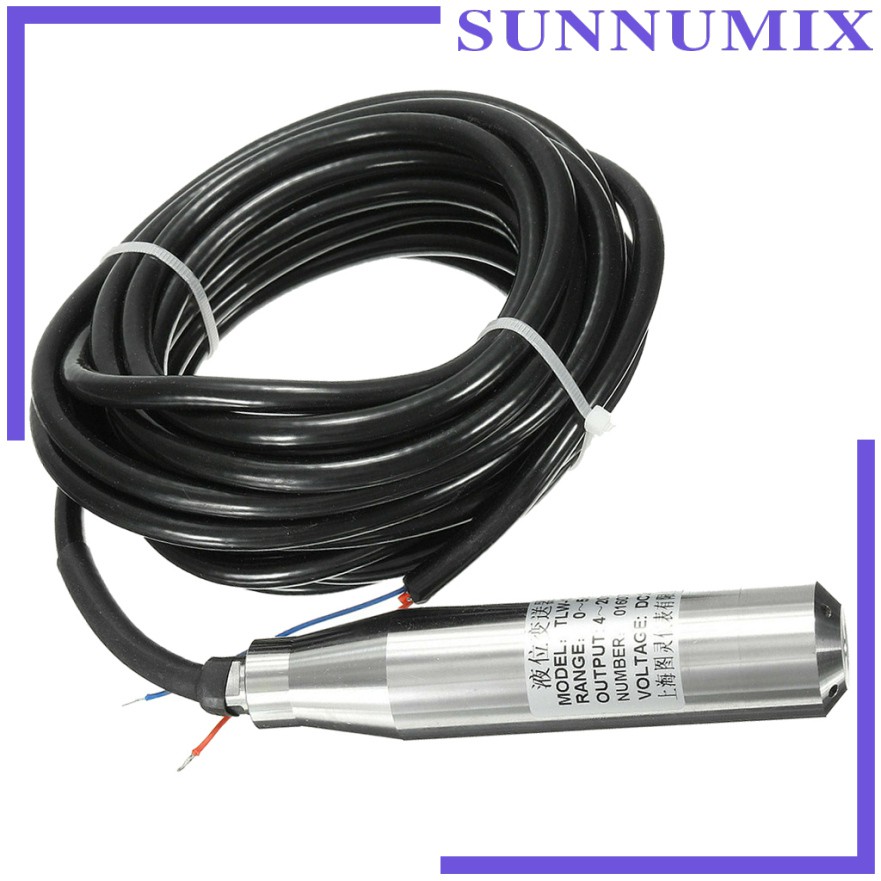

4-20mA Submersible Water Level Transimtter Transducer Sensor with 5meters Cable.

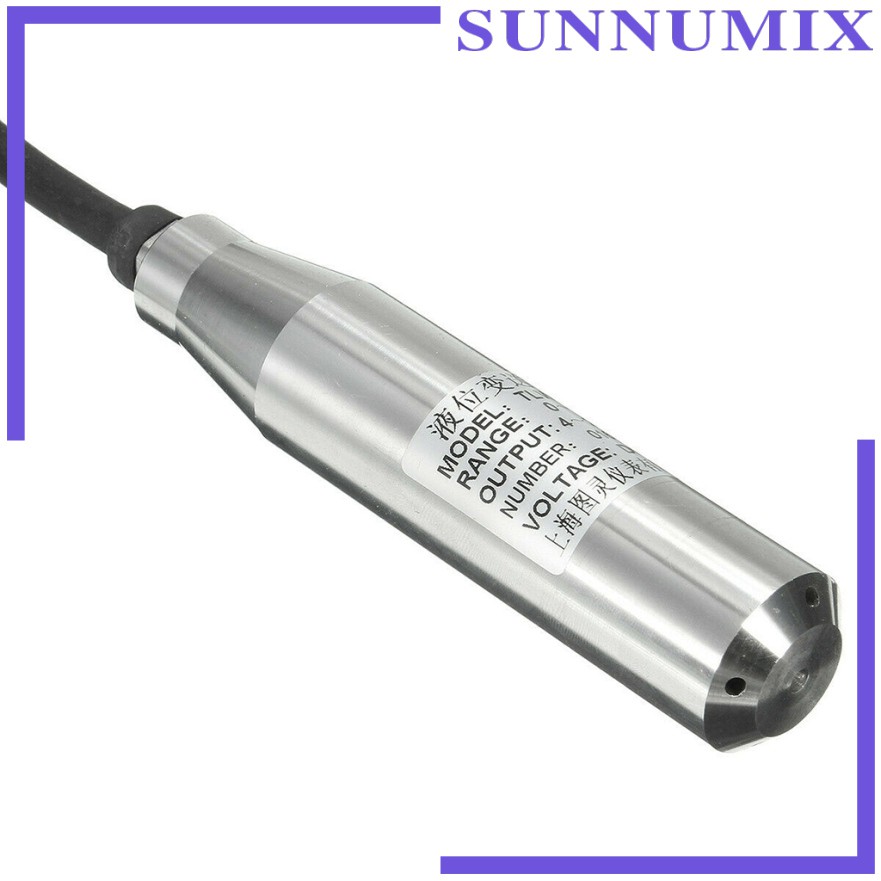

Stainless steel probe, small size, light weight, anti-vibration, stable and precision.
Prevent from the surge voltage, over-voltage, over-current and the protection of reversed polarity.
Low level monitoring in open tanks, depth or level measurement in wells and open waters, groundwater level measurements.
Widely used for agricultural irrigation, Urban water supply and drainage, Hydrographic survey, Environmental protection.
Specification:
Measurement Range: 0-5mH2O/50kPa
Cable Length: 5m/16ft
Measurement Medium: Water
Power Supply: 24VDC
Output Signal: 4-20mA
Accuracy: ±0.5%FS
Overload Capacity: Two times full-scale pressure
Using Temperature: -20c—120c
Compensation Temperature Range: -10c—80c
ZTC: (typical):±0.02%FS/c
STC: (typical):±0.02%FS/c
Long-term Stability: (typical):±0.1%FS/year;
Waterproof Grade: IP68;
Load Resistance: less than (U-10)/0.02Ω;
Probe Material: 304 stainless steel;
Explosion-proof Type: Exia II CT6
Package Includes:
1 Piece Submersible Water Level Transducer
Note:
The measurement medium should be compatible with stainless steel.
Don't connect the wires when the power is on,connect the power after checking the connection wires.
Don't change the welded parts and connected wires of the outgoing products when customer use it.
