Thiết Bị Chuyển Đổi Mạng Lan Washington057 Waveshare RS485 Cortex-M0 Tốc Độ Cao (Phích Cắm US 100-240V)

Giới thiệu Thiết Bị Chuyển Đổi Mạng Lan Washington057 Waveshare RS485 Cortex-M0 Tốc Độ Cao (Phích Cắm US 100-240V)

@My master, Xiao Er has been waiting for you for a long time,
welcome to Xiao Er's electronic shop *washington057*

❥#This e-shop has enough stock, the owner can add and place an order if he finds the items he loves. The owner is also welcome to collect Xiaoer's e-shop#❥

❥(^_-)Welcome dear owner to pay attention to Xiaoer's electronic shop, we will have more and more exquisite gifts waiting for the owner❥(^_-)

@%After the owner places the order, Xiaoer will deliver the goods quickly #with quality and quantity delivered to the owner%@

❥(^_-) If the owner consumes the products of this shop for two or more times, he will get more benefits for you. Xiaoer is looking forward to your additional purchase and order❥(^_-)

------------------------------------Welcome Host-------------------------------------
Seller information & Disclaimer:
Company name：Shenzhen Huotong Bafang Cross-border E-commerce CO., Ltd
Address：Room 310, No 2007, Baoyuan Road, Labor Community, Xixiang Street, Baoan District, Shezhen
Business license number: 91440300MA5G3KT301
Any issue could directly contact us via shop web chat!

Disclaimer: We will take all the responsibility for the goods shipping not Shopee.

Features:
1. M0 series 32-bit ARM processor, fast speed, high efficiency.
2. 10/100M Auto-MDI/MDIX ethernet interface, regardless of cross-over or straight-through cable.
3. Configurable RS485 baudrate (600bps~230.4Kbps), supports five parity check options: None, Odd, Even, Mark, Space.
4. Available working modes: TCP Server, TCP Client, UDP Server, UDP Client, HTTPD Client (supports GET and POST).
5. Configurable via webpage, AT commands, serial protocol, and network protocol, provides configuration protocol which can be integrated to your own software.
6. Supports customized heartbeat packets, make sure the connection is truthful, as well as for actively retrieving sensor data.
7. Supports customized registration packets, auto passing the registered packet as identifier after the connection is established, so that different devices can be distinguished.
8. Supports customized webpage, allows user to customize the module configuration page.
9. Supports RFC2217-like protocol, be able to communicate with devices whose serial setting (baudrate, data bit, etc.) may change.
10. KeepAlive mechanism, detects broken connection, auto re-connecting.
11. Supports time-out reboot (no-data reboot), ensures a long-term stable connection, configurable reboot time.
12. Supports DNS domain name resolution, configurable DNS server.
13. Supports DHCP, auto-obtained IP or static IP.
14. Firmware is upgradable via the network.
15. Restore to factory settings via software and/or hardware.
16. Comes with default MAC address, which is customizable.
17. Provided software: module configuration software, TCP/UDP testing tool, VCOM virtual serial port software.
18. Example code: Fit For host computer (socket ), Fit For VB, Fit For

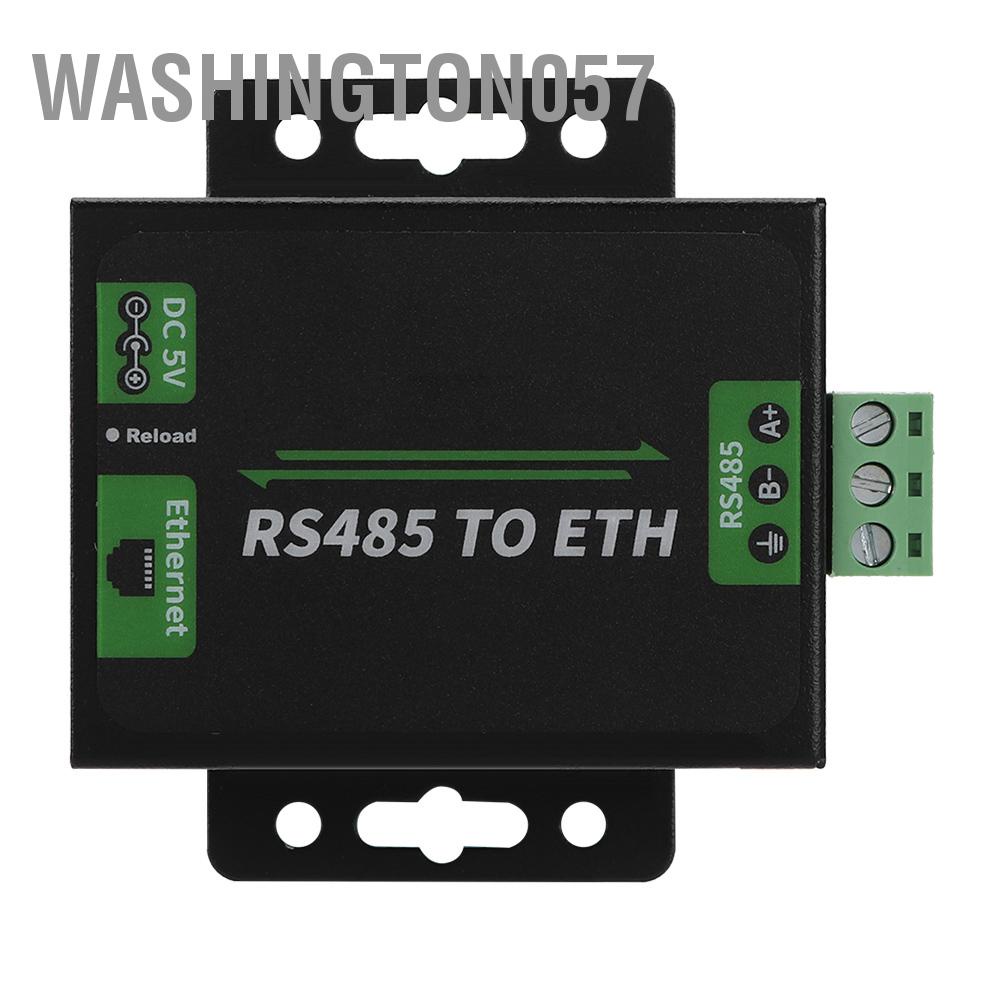

Hình ảnh sản phẩm
