Thiết Bị Điều Khiển Từ Xa Điện Tử 1 Kênh 220v 433mhz

Giới thiệu Thiết Bị Điều Khiển Từ Xa Điện Tử 1 Kênh 220v 433mhz

Welcome to Oorange.vn

Wiring instructions:
L: Fireline input
N: Zero Line Input
OUT L: Fireline Output
OUT N: Zero Line Output
Technical Indicators:
Input voltage: AC85V-AC220V
RF operating frequency: 315M, 433M optional.
RF mode: superheterodyne reception
Receiving sensitivity: -107 dBm
Remote control distance: the open space is more than 100 meters.
Number of Storable Remote Controllers: 32
Support remote control type: learning code, fixed code
Various working modes: point, self-locking and interlocking.
Wiring mode: fixed wiring post
Interpretation of working mode:
1. Point mode: press the "A" key of the remote control, turn on the relay, release the "A" key of the remote control, and turn off the relay. If the "A" key of the remote control is pressed all the time, the relay will always be on. When the remote control is on, the relay will be off.
2. Self-locking mode: press the same remote control button, press it, turn on the relay, press again, turn off the relay.
3. Interlocking mode: press the "A" key of the remote control, turn on the relay, press the "B" key of the remote control, turn off the relay.
Package included: 1pcs

We will ship to you asap
Always need 13-18 business days to ship before delivering because we ship your parcel from oversea
Please wait with patience
Thank you
Have a nice day

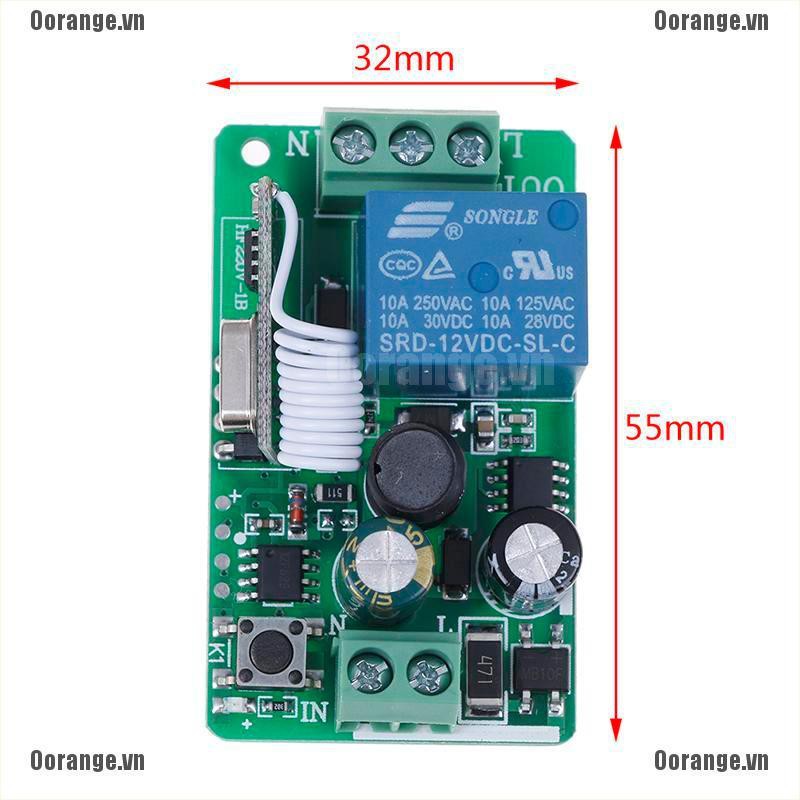

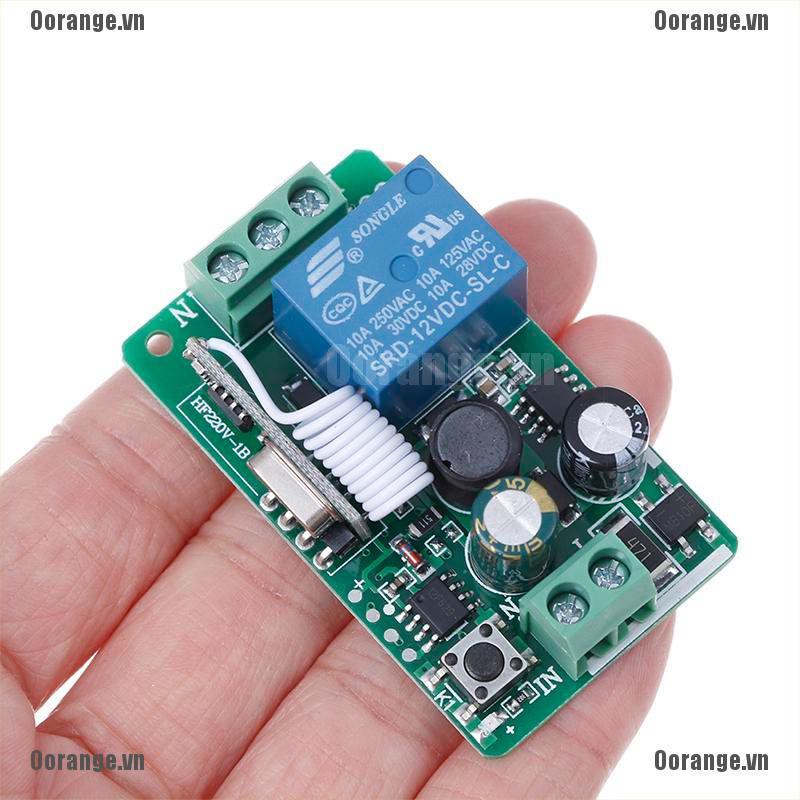

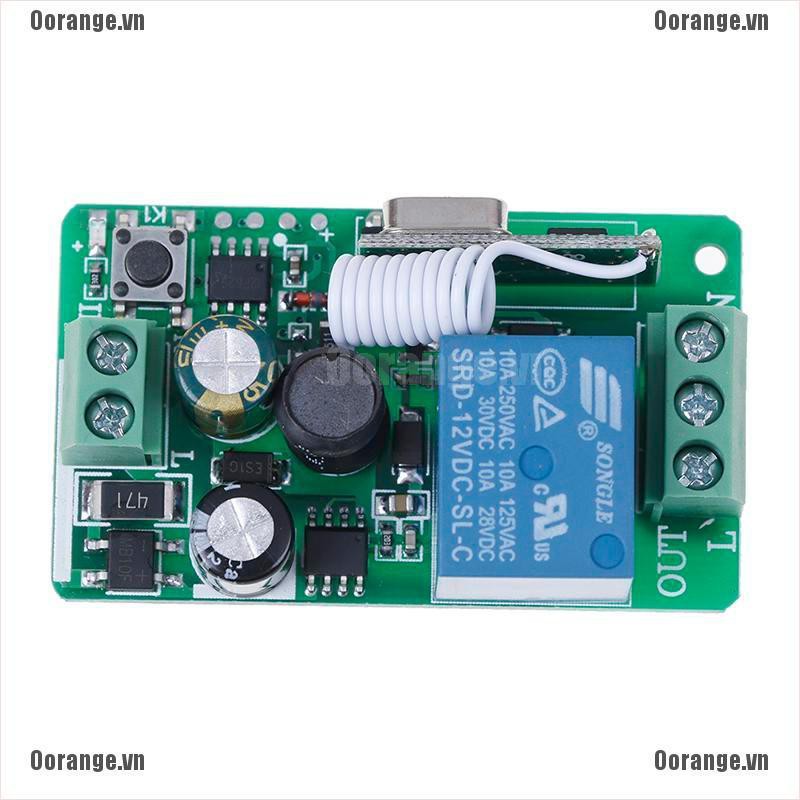

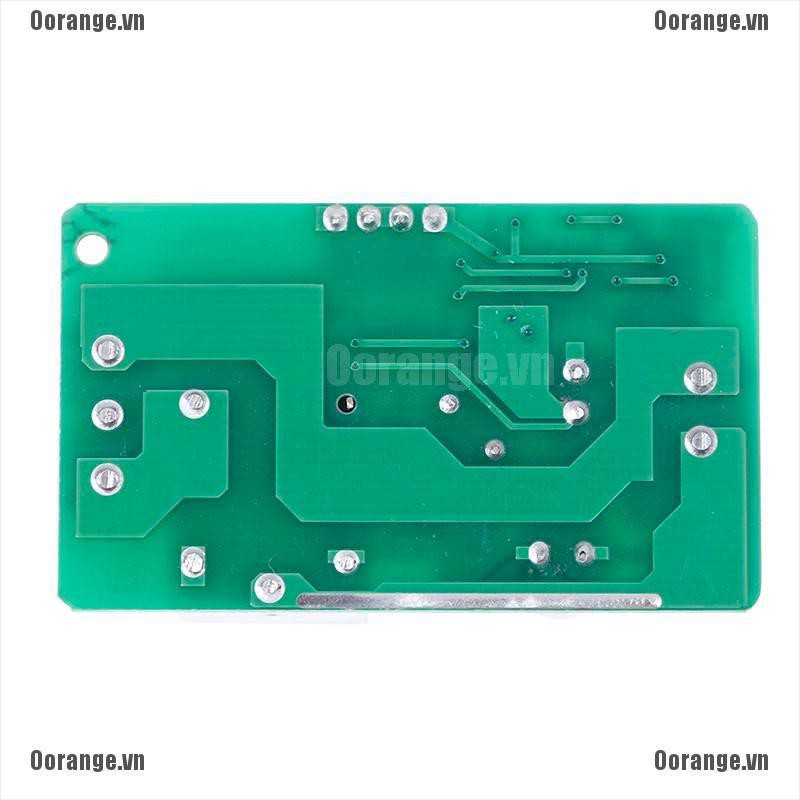

Hình ảnh sản phẩm
