Thiết bị đo dung lượng pin 10-100V 12V/24V/36V/48V/60V/72V màn hình hiển thị LCD

Temperature range -19 ~ 80 °C Celsius

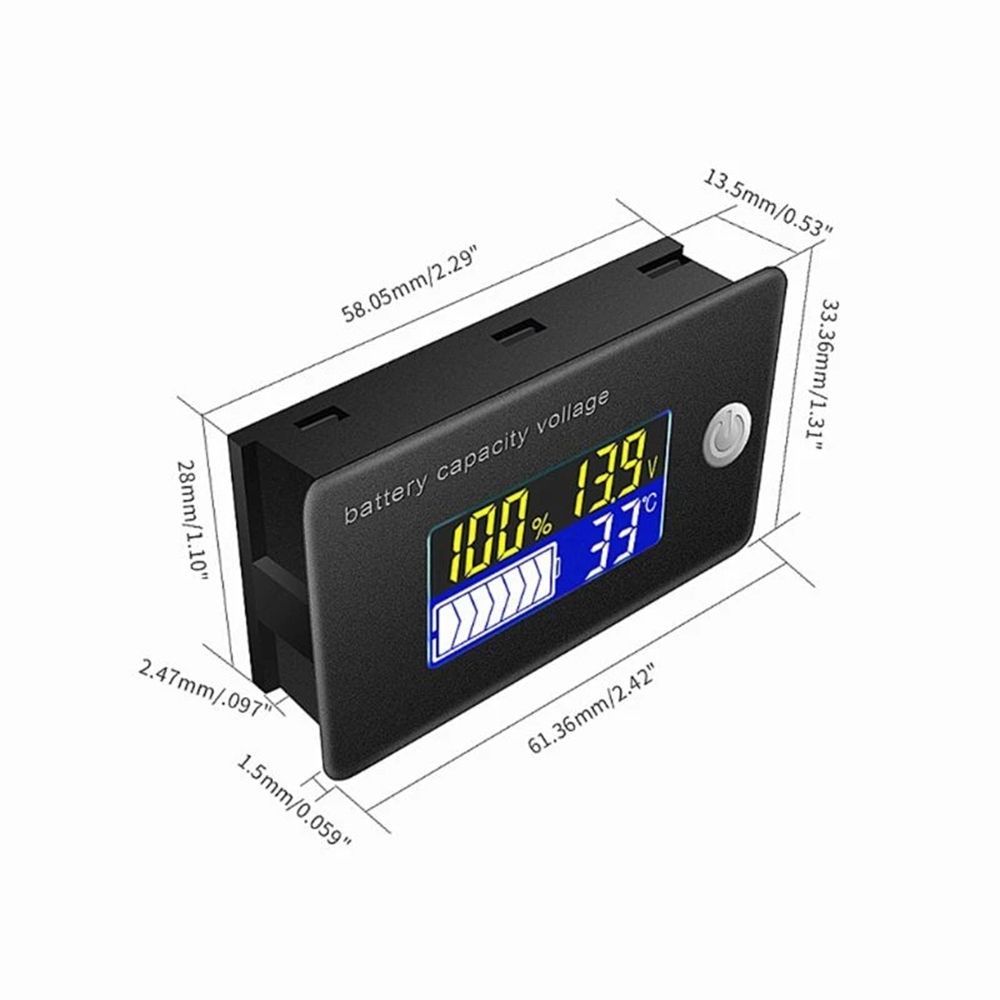

Product size 61.5*33.5*13.5 mm (2.42*1.32*0.53in)
Temperature accuracy ±0.5 / ±1 °C Built-in standard (external 30CM probe option)
Operating power 8/10 mA backlight on
Working temperature -10 ~65 °C
Low-voltage alarm adjustable 10.5~ 60.0 V (1 second interval after low voltage buzzer) voltage value flashing
Operating voltage 10V to 100 V
Over temperature alarm adjustable 0 ~179 °F (1 second interval after over temperature buzzer) temperature value flashing
Mounting size 58.5*28.5 mm (2.30*1.12in)
Sleep power consumption 15/20 uA 20V
Display size 33*16.5 mm (1.30*0.65in)
Delay time adjustable 10~120S (10.20.30.60.120 seconds adjustable)
Over temperature alarm adjustable 0 ~ 79 °C (1 second interval after over temperature) buzzer temperature value flashing
Voltage accuracy ±0.1 / ±0.5 %
Temperature range -2.2~ 179 °F Fahrenheit
Features:
1. Patented product, using neutral production packaging, the surface is dustproof and waterproof, with full protection of the back cover
2. One-piece display port, anti-puncture sunscreen, soft button feels good experience
3. Color LCD material, clear light display, soft night display
4. Custom battery type, suitable for lead acid, lithium battery, lifepo4, nickel hydrogen battery

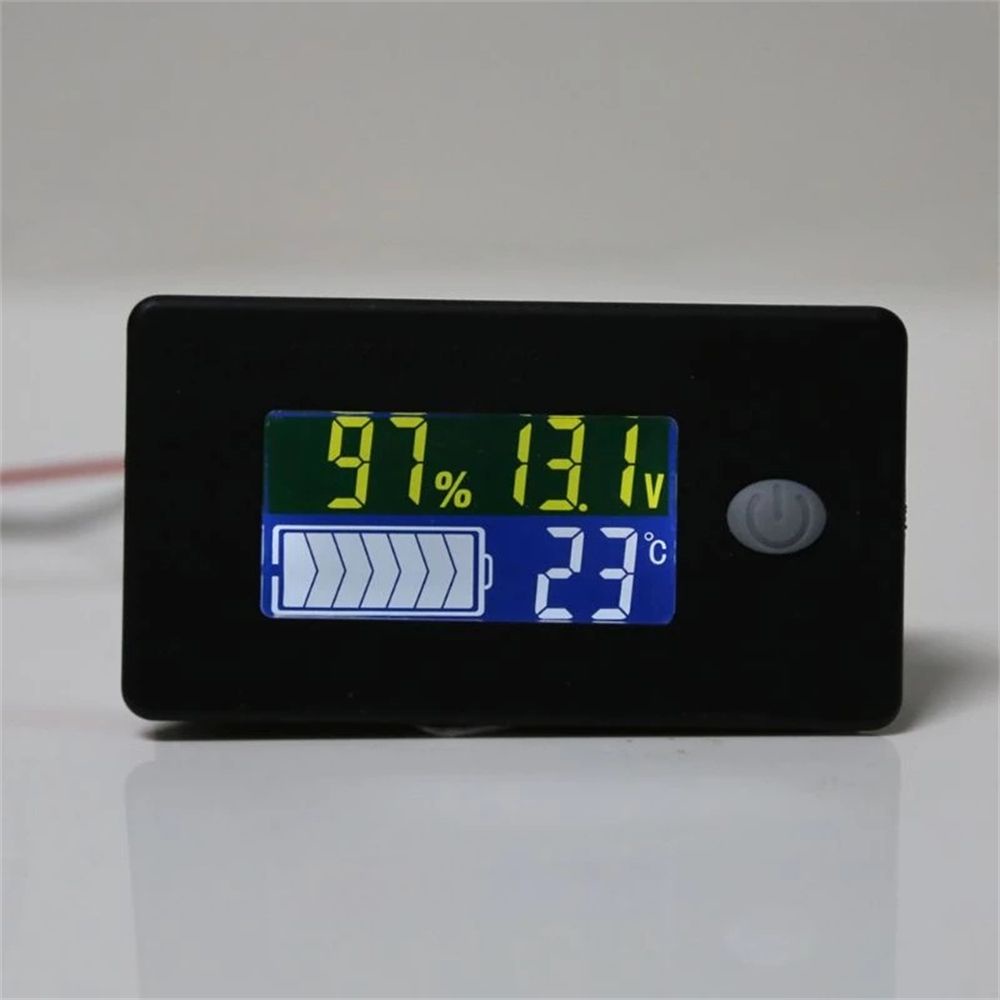

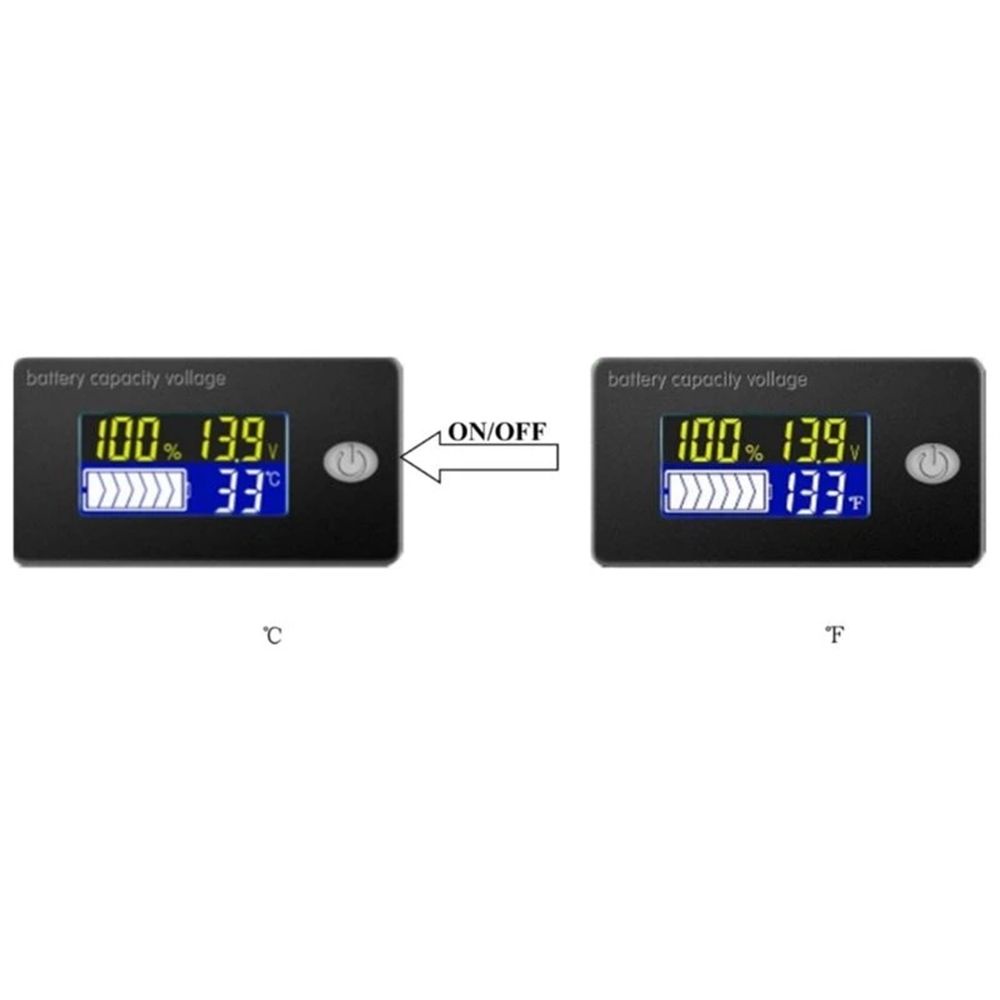

5. Display percentage remaining power, voltage, temperature value (degrees Celsius, Fahrenheit can be set)
6.10-100V wide voltage input, reverse connection protection
7. Custom delay 10-120 seconds sleep
8. Shutdown sleep low power consumption
9. Simple installation, self-contained buckle free screw
10. Low pressure alarm
11. Over temperature alarm (shared built-in buzzer optional)

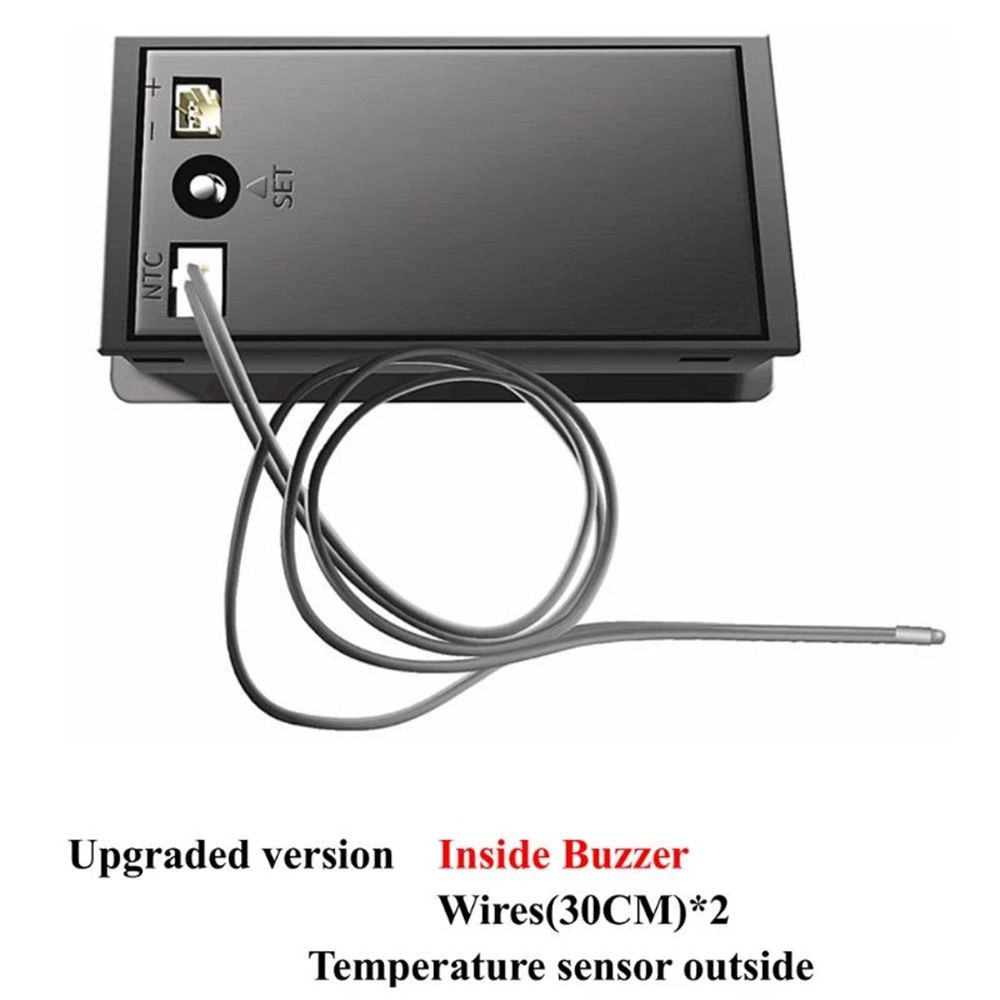

12. Battery temperature real-time detection (optional external temperature probe)
13. Open programming mode

Notice:
The default setting is suitable for use in 12V lead acid batteries.
Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
Please allow 1-3mm slight deviation due to manual measurement. Thank you!

Package included:
1 * Battery Capacity Indicator Voltmeter with Temperature Display
1 * Cable
