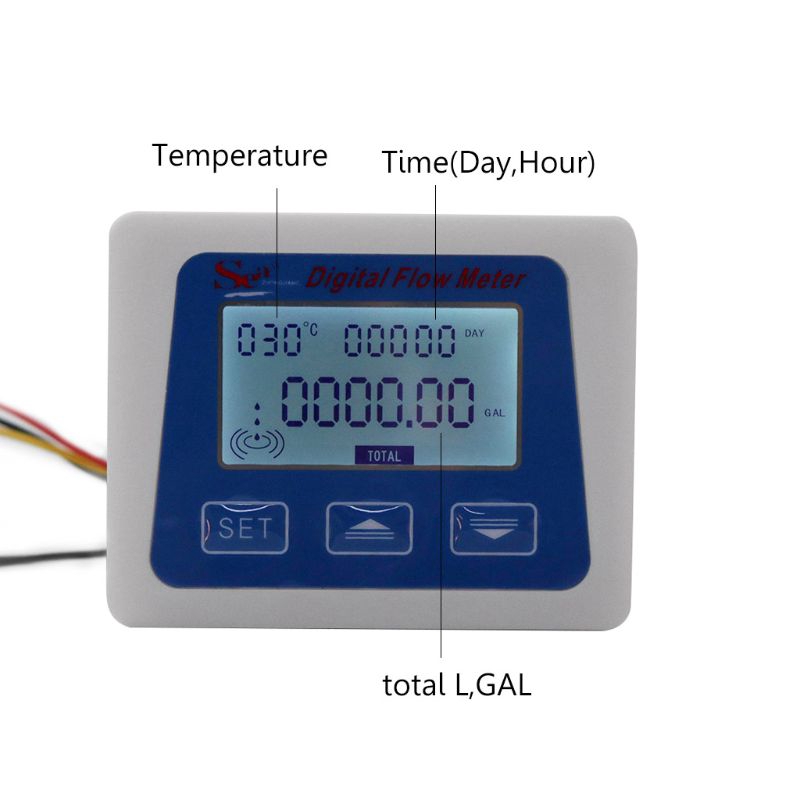

5, Total water consumption, flow rate display The maximum measurement 999999L (Note: If the upgrade, if the unit is set Into the GAL, also count 999999L clear 0, that is, remember to 219969GAL clear 0), after more than Remeasurement starts at 0. 6, K value setting character (K SETTING) The K value setting character will be displayed when entering the interface number: 00 for the K value setting interface (K SETING) Show it 7, Total Traffic Character (TOTAL) When the system is powered on, the total flow character is displayed on the main screen. , three, settings and interface description A, how to set the system operating mode Use the battery three AAA battery interface to power the system.(Not include battery) B, the main interface and the main interface settings The characters TOTAL, total water consumption, temperature, total usage time, etc. will be displayed under the main screen. C. Setting of K value setting interface and K value setting interface In the main interface, short press “SET” key once to jump to the K value setting interface. “K SETTING”, interface number 00, and K value are displayed under the K value setting screen. Press the “SET” key in the K value setting interface to set the K value. The first digit of the K value after long pressing the "SET" key Flashes, short press “+” flashes digits increases by 1; short press “-” flashes digits decreases by 1; short press “SET” Press to switch to the next digit. After setting, long press “SET” key to save the settings. D, other a, the system's sleep mechanism In the use of battery interface power supply, in order to save energy and improve battery life, the system is unmanned And if there is no water flow, it will go to sleep. The display will automatically jump to the sleep state The main interface and keep the display function. Automatically wakes up to the metering state when water flows through. b, the system reset There is a RESET symbol on the back of the board with two contacts next to it. Two contacts after the system is powered on Short-circuit to about 2 seconds, the system will restore the factory settings, clear the total time and total water consumption.

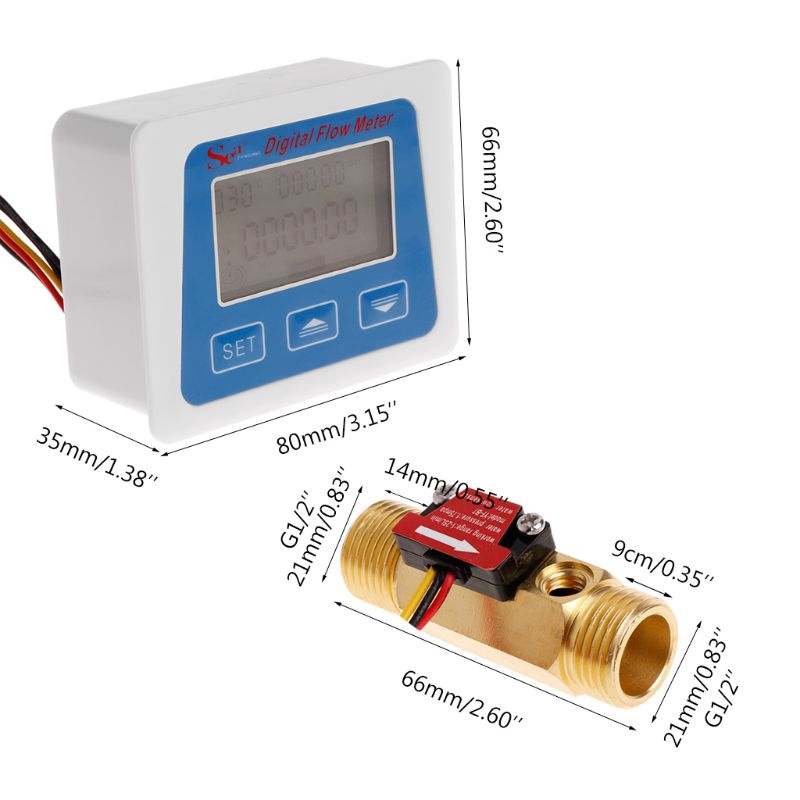

G1/2 flow sensor : Water pressure resistance> 1.75MPa Flow range 1-25L / min
With Temperature Sensor
This Flow Meter Only can use this Flow Sensor , Because this Flow sensor is Customized version Low power consumption ,If use other Flow Sensor not Low power consumption, the battery only can use two days.

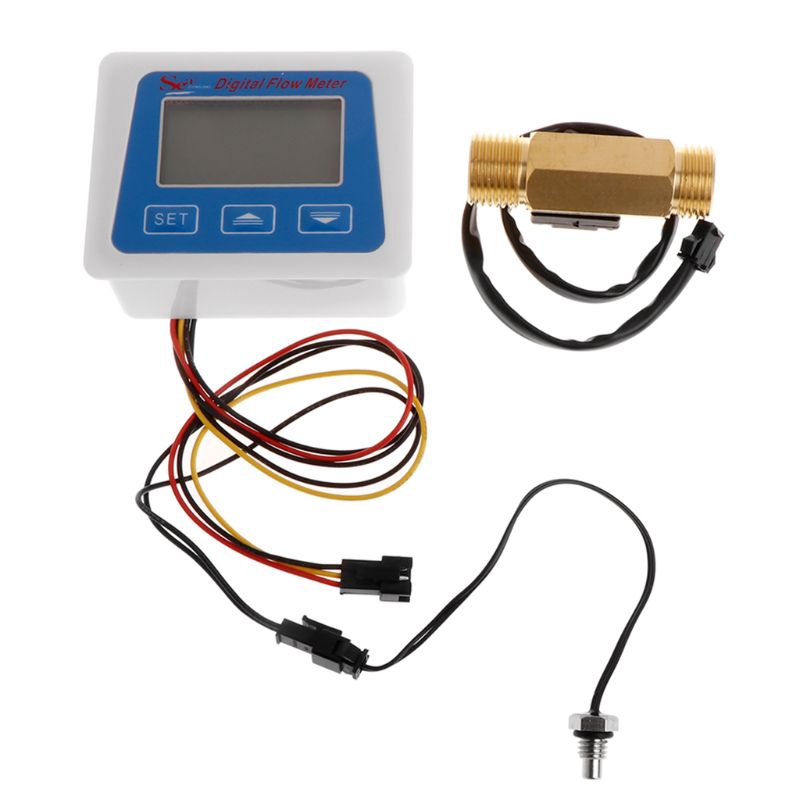

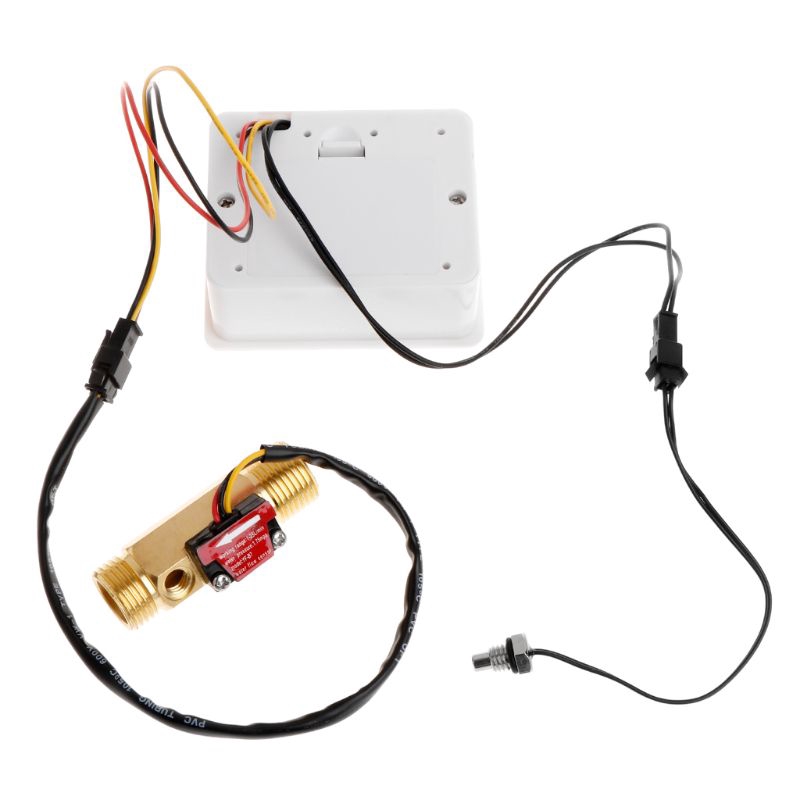

Package included: 1 x Digital Flow Meter 1 x G1/2 Flow sensor 1 set of mounting accessories
