Bộ Thiết Bị Giải Mã Âm Thanh Kỹ Thuật Số Giắc Cắm 3.5mm Tiện Dụng

Giới thiệu Bộ Thiết Bị Giải Mã Âm Thanh Kỹ Thuật Số Giắc Cắm 3.5mm Tiện Dụng

"describe:

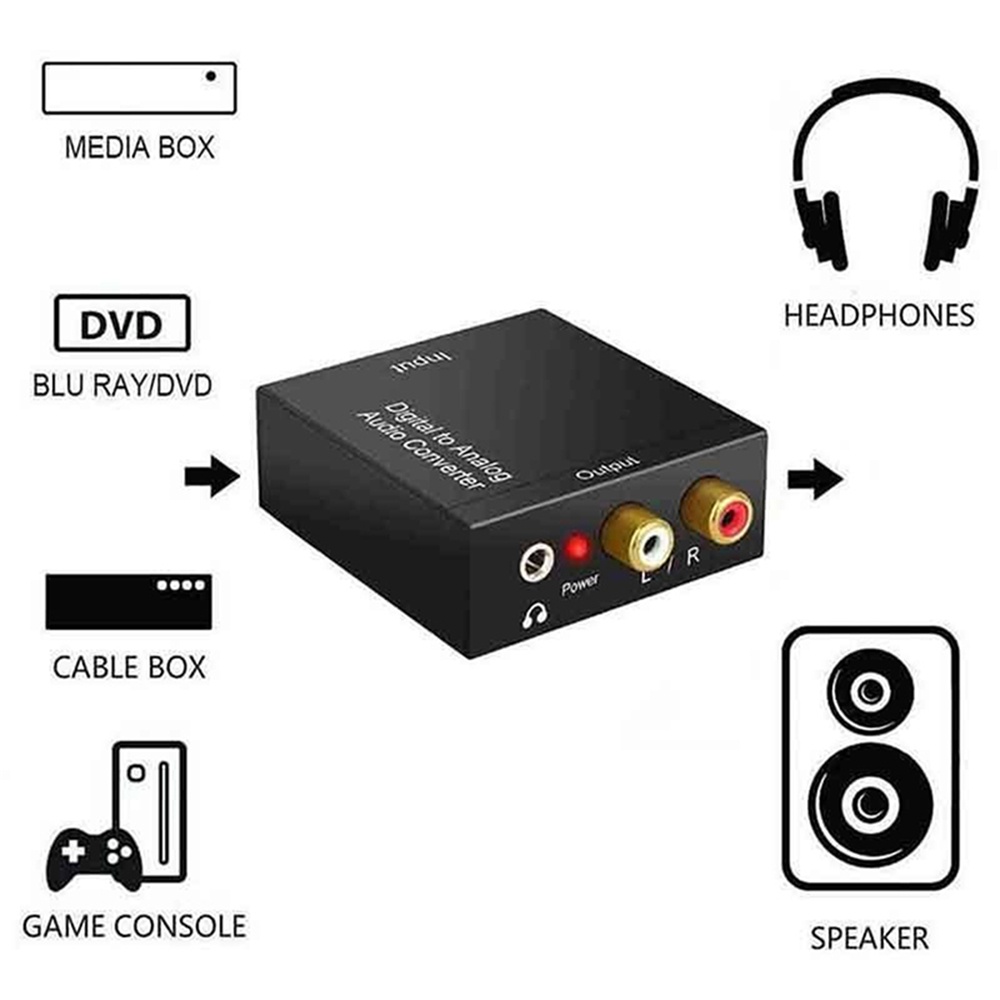

This digital-to-analog audio converter is suitable for home use and professional audio conversion. It can convert coaxial or optical digital audio signals into left and right channel analog audio signals, and connect an external device through the L/R analog audio interface, such as Amplifier, it also has a 3.5mm audio output interface for connecting headphones.

【Product Features】
1. Convert the coaxial cable or Toslink digital audio signal into analog L/R audio.
2. Support sampling rates of 32, 44.1, 48 and 96 KHz.
3. Support 24 bit S/PDIF incoming bit stream pairs for left and right channels.
4. No electromagnetic noise transmission.
5. Simple installation and easy to use.


【Product Specifications】

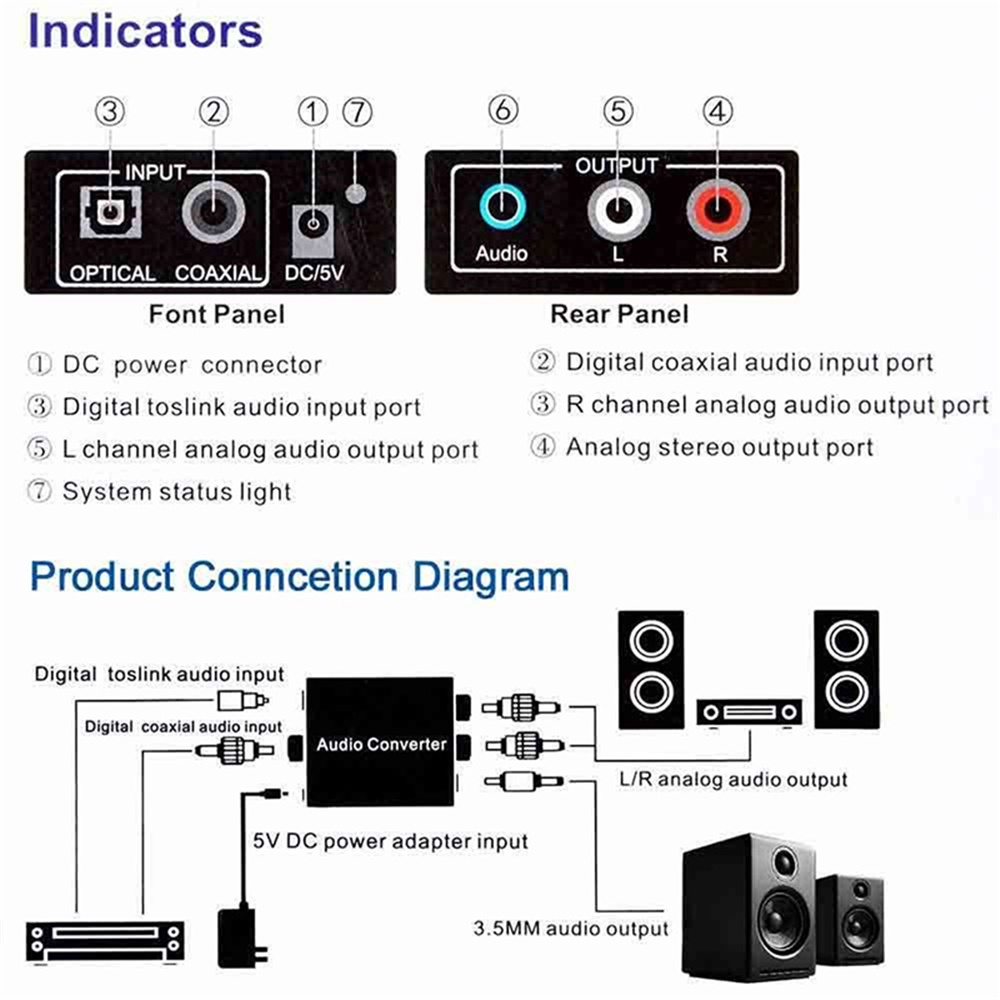

Input terminal: 1 × coaxial digital (coaxial) terminal, 1 × optical digital (SPDIF / Toslink) audio terminal

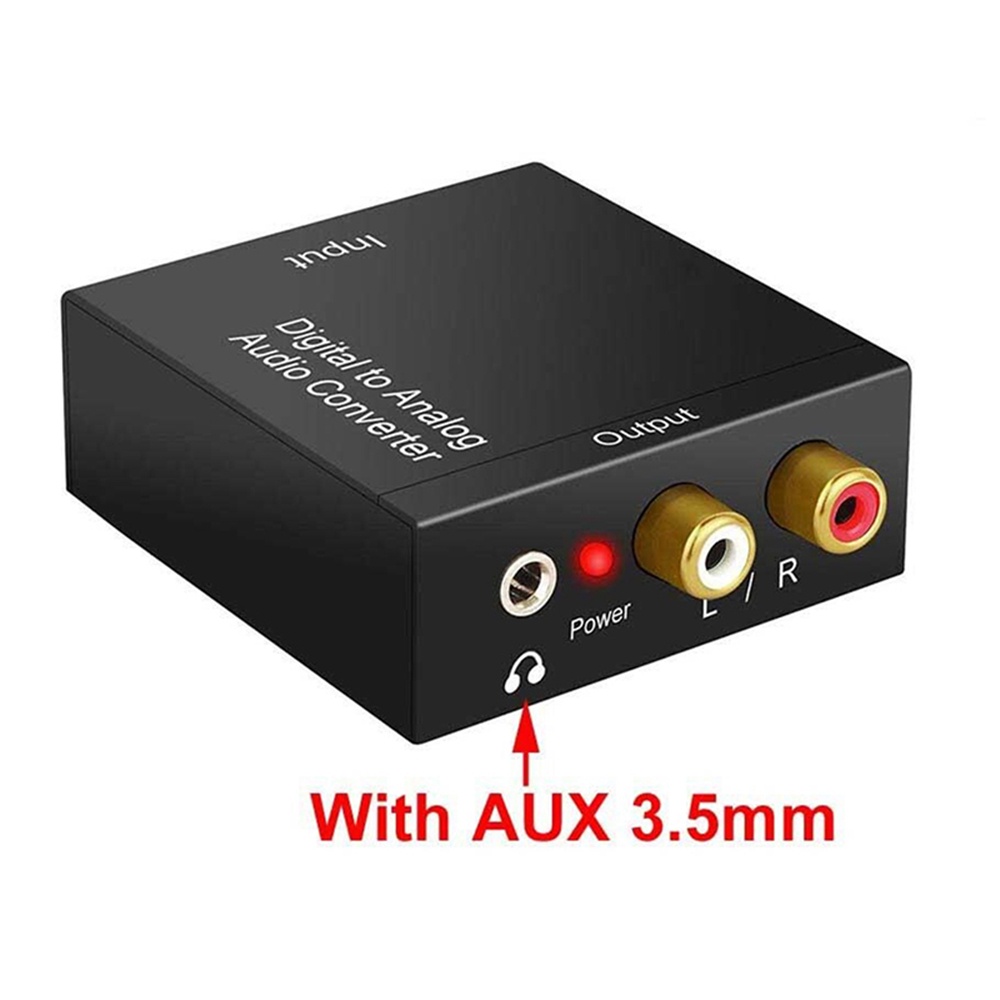

Analog output: 1×RCA (L/R) terminal, 1×3.5 mm earphone terminal
Digital output: 1 x coaxial digital (coaxial) terminal, 1 x optical digital (SPDIF / Toslink) audio terminal
Sampling rate: at 32kHz, 44.1KHz, 48KHz, 96KHz, 192KHz, 24 bits
Input power: DC5V Ato 500MA

Product specifications
Signal input/output
Audio signal input coaxial cable or optical digital audio cable
Audio signal output L/R audio
Connector
Audio input connector optical cable, 1xRCA (coaxial)
Audio output connector 2XRCA (R/L)
Sampling rate 32, 44.1, 48 and 96 KHz
Environmental requirements
Temperature (when in use) 0℃to +70℃
Humidity (when in use) 10% to 85% RH (no crystals)
Temperature (when stored) -10℃to +80℃
Humidity (during storage) 5% to 90% RH (no crystals)
Power requirements
External power supply 5VDC@1A
Energy consumption (maximum) 0.5 W

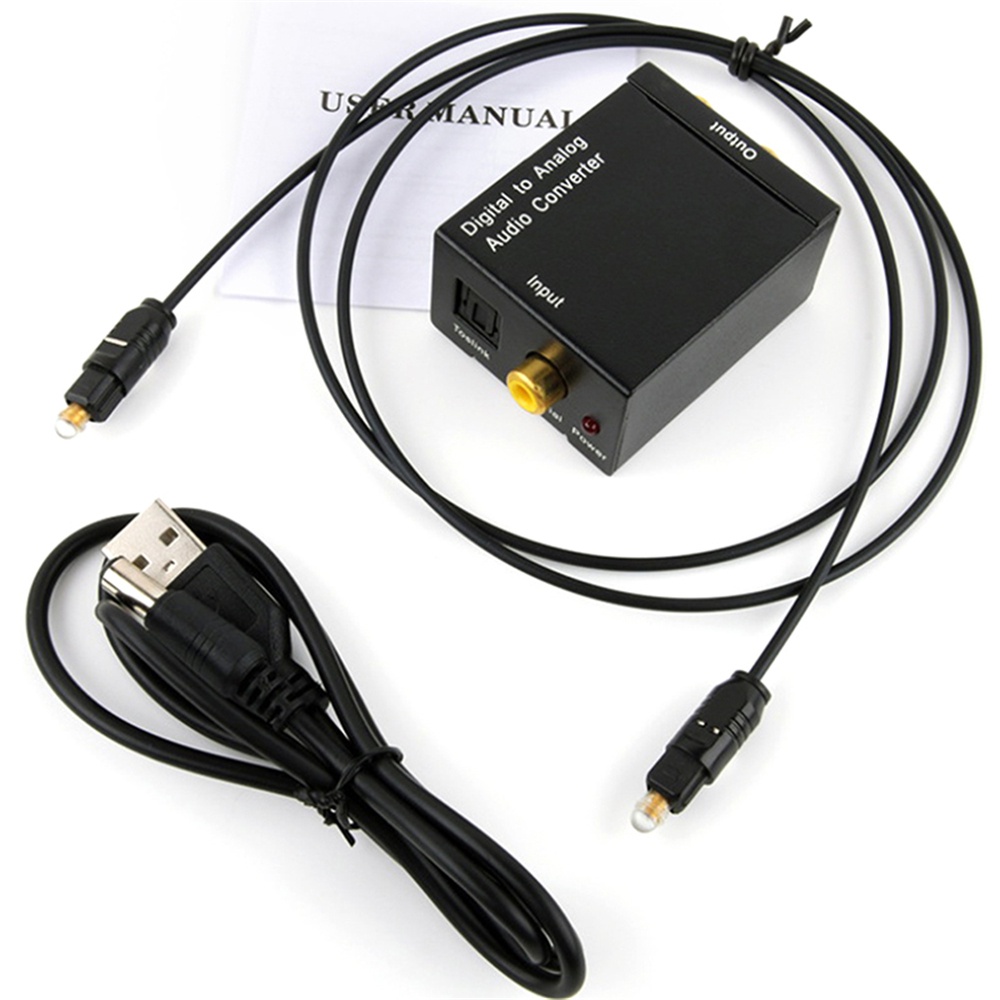

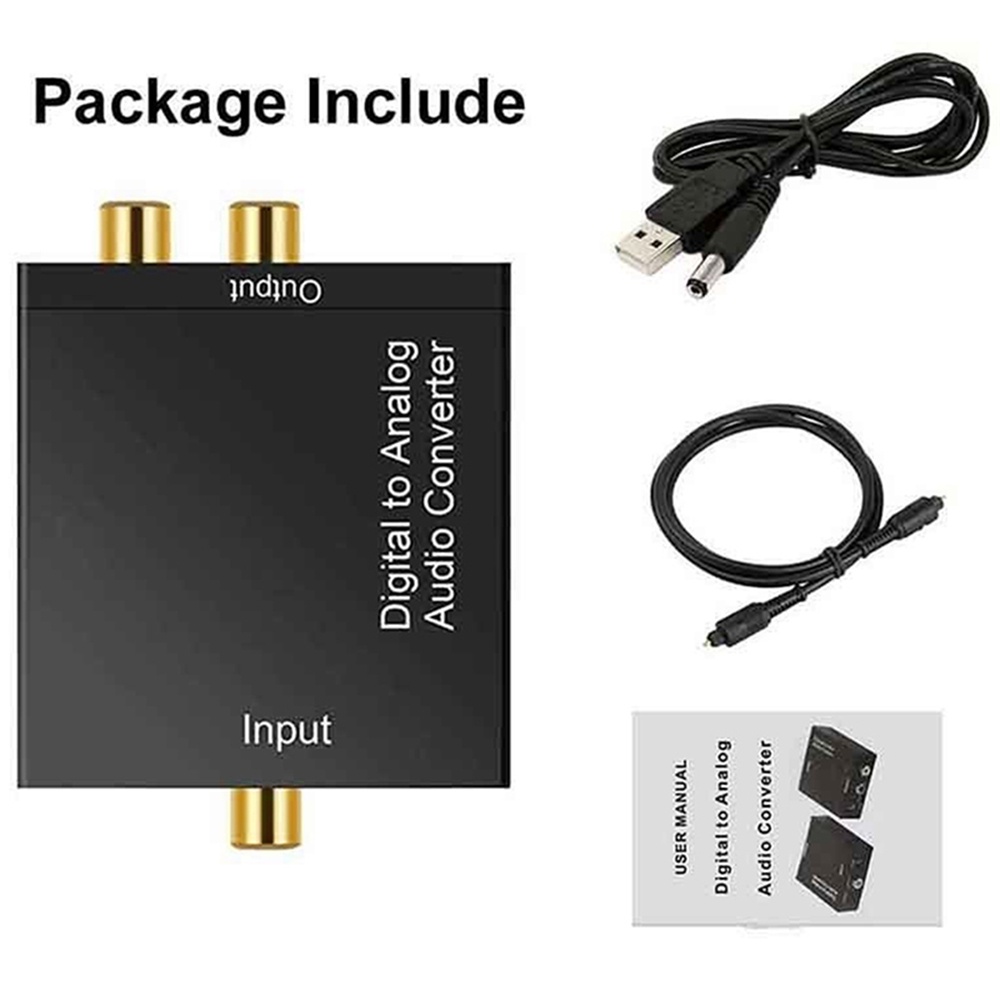

packing list:
1*Converter
1*User Manual
1*Fiber optic cable
1*USB data cable"

Hình ảnh sản phẩm
