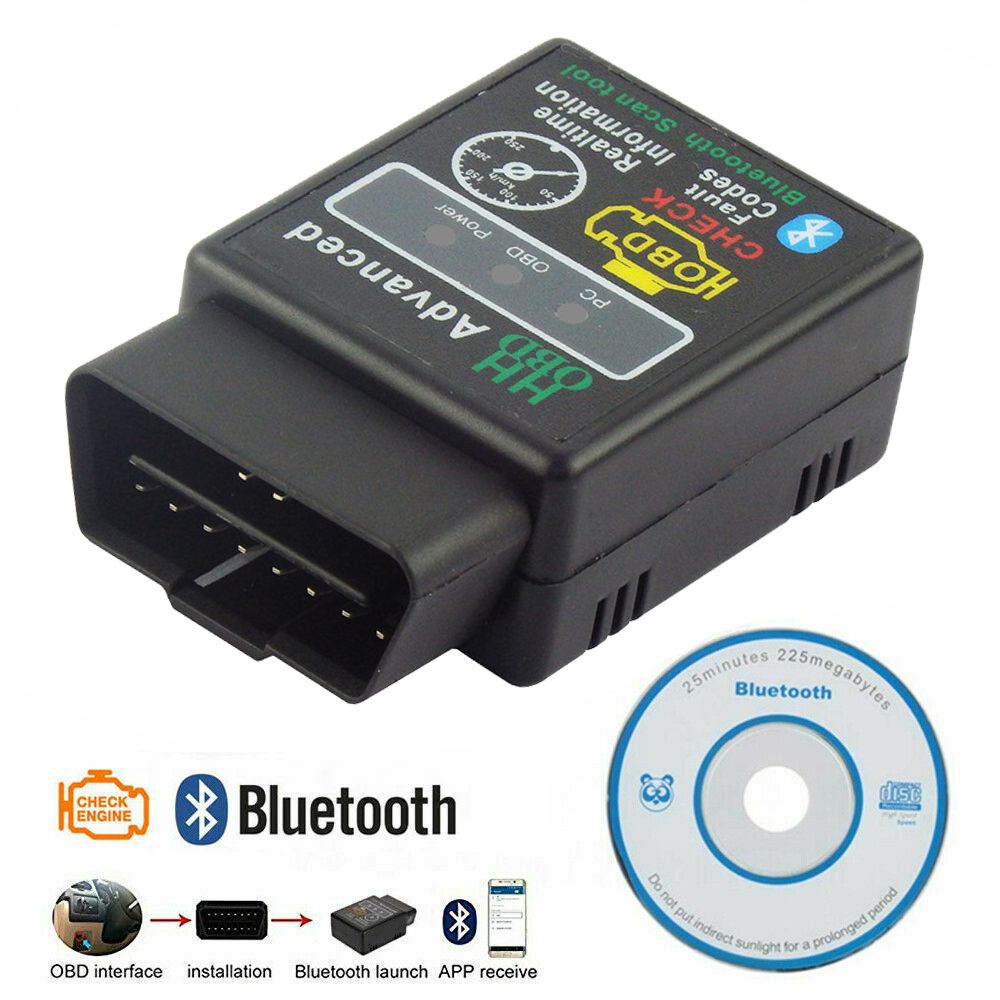

Thiết bị quét chẩn đoán lỗi xe hơi ELM327 OBD-II HH OBD 2 Advanced Mini V2.1

Dimensions: 4.8 x 6.5 x 2.8
Operating Voltage: 12 V
Bluetooth Version: V2.1
Function: Car diagnose
Color: Black
Technical Parameters: It supports all OBD-II protocols, Works with all OBD-II compliant vehicles
Material: Plastic
The OBD-II protocol supported by this product is:
1) ISO9141-2(5 baud init, 10.4Kbaud)
2) ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
3) ISO14230-4 KWP (fast init, 10.4 Kbaud)
4) ISO15765-4 CAN (11bit ID, 500 Kbaud)
5) ISO15765-4 CAN (29bit ID, 500 Kbaud)
6) ISO15765-4 CAN (11bit ID, 250 Kbaud)
7) ISO15765-4 CAN (29bit ID, 250 Kbaud)

Functions:
1) Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2) Clear trouble codes and turn off the MIL ("Check Engine" light)
3) Display current sensor data, including:
4) Engine RPM
5) Calculated Load Value
6) Coolant Temperature
7) Fuel System Status
8) Vehicle Speed
9) Short Term Fuel Trim
10) Long Term Fuel Trim
11) Intake Manifold Pressure
12) Timing Advance
13) Intake Air Temperature
14) Air Flow Rate
15) Absolute Throttle Position
16) Oxygen sensor voltages/associated short term fuel trims
17) Fuel System status
18) Fuel Pressure

Android Apps (ab Android 4.0):
Torque (Lite), ScanMaster (Lite), EOBD Facile, VGA Erase DTCA 2,Aload Terminal, OBD Car Doctor Free, OBD2-ELM327 Car Diagnostics, OBD Dashboard,ScanMyOpel Lite, OBDLink, hobDrive Demo, EcoShifter OBD2 Car, Scanator Android, Efficiency, VAG DTC Fault Memory erase, BMWhat Lite

Package:
1 x Car Diagnostic Scanner
1 x CD

Tip: Do not support IOS devices, please attention.
