Thiết bị quét lỗi ô tô không dây V2.1 Mini ELM327 giao diện bluetooth
Mô tả ngắn
Nhà Cửa & Đời Sống > Đồ dùng phòng ăn > Bát > Thiết bị quét lỗi ô tô không dây V2.1 Mini ELM327 giao diện bluetooth
- Giao hàng toàn quốc
- Được kiểm tra hàng
- Thanh toán khi nhận hàng
- Chất lượng, Uy tín
- 7 ngày đổi trả dễ dàng
- Hỗ trợ xuất hóa đơn đỏ
Giới thiệu Thiết bị quét lỗi ô tô không dây V2.1 Mini ELM327 giao diện bluetooth
Super ELM327 Bluetooth Scanner V2.1 Wireless Interface Auto ELM 327 Interface Code Readers Diagnostic Tool ODB2/OBDII Protocols Highlights For ELM327 V2.1:ELM327 MINI OBD SCAN is the newly developed wireless scan tool.
It supports most standard OBD-II protocols Hardware V2.1,Software V2.1
Bluetooth Password :0000 / 1234 / 6789 Woks on Android Torque (support Android smart phone System with Android 4.0-Android 4.4 version) /PC( win XP/WIN 7 32bits and close anti-virus programm),BUT IT NO WORKS iOS! It CAN'T support for Diesel or Trucks.
This ELM327 V2.1 supports most of OBD-II protocols cars,but it can not do all models ,also some OBDII protocols may do not support( like J1850 VPW &J1850 PWM protocols no supports). If the CD is broken or unreadable, pls contact us to send you download link,thanks. Hardware V2.1 Supprots 7Protocols: 1.ISO9141-2(5 baud init,10.4Kbaud) 2.ISO14230-4 KWP(5 baud init,10.4 Kbaud) 3.ISO14230-4 KWP(fast init,10.4 Kbaud) 4.ISO15765-4 CAN(11bit ID,500 Kbaud) 5.ISO15765-4 CAN(29bit ID,500 Kbaud) 6.ISO15765-4 CAN(11bit ID,250 Kbaud) 7.ISO15765-4 CAN(29bit ID,250 Kbaud) A.SAE J1939 CAN(29bit ID,250*Kbaud) B.USER1 CAN(11*bit ID,125*Kbaud) C.USER2 CAN(11*bit ID,50*kbaud) *default settings (user adjustable)
Default Settings(user adjustable)
1.Works with OBD-II compliant vehicles
2.Wireless (Bluetooth) 5~10 meter
3.Software included for Pa, PDA,Mobile
4.Software included for Windows PC ,Can also be used with a PC with a Bluetooth Card.
5.Software included for Windows Smartphone Android torque
Functions:
1.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2.Clear trouble codes and turn off the MIL ("Check Engine" light) 3.Display current sensor data, including:
4.Engine RPM
5.Calculated Load Value
6.Coolant Temperature
7.Fuel System Status
8.Vehicle Speed
9.Short Term Fuel Trim
10.Long Term Fuel Trim
11.Intake Manifold Pressure
12.Timing Advance
13.Intake Air Temperature
14.Air Flow Rate
15.Absolute Throttle Position
16.Oxygen sensor voltages/associated short term fuel trims 17.Fuel System status
18.Fuel Pressure
19.Many others.

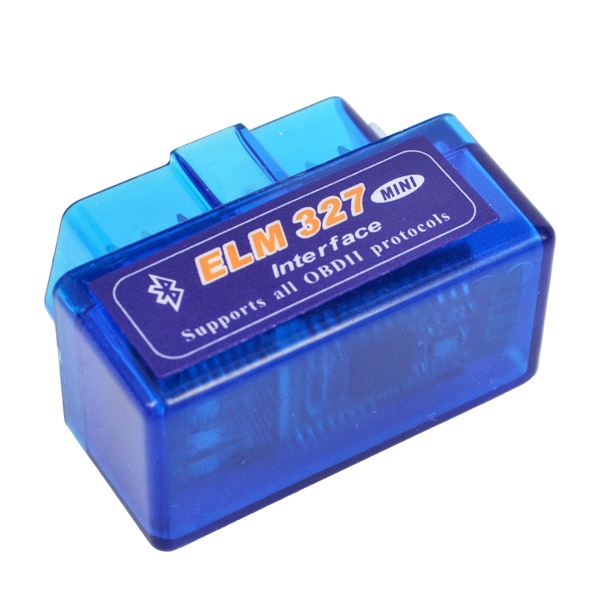

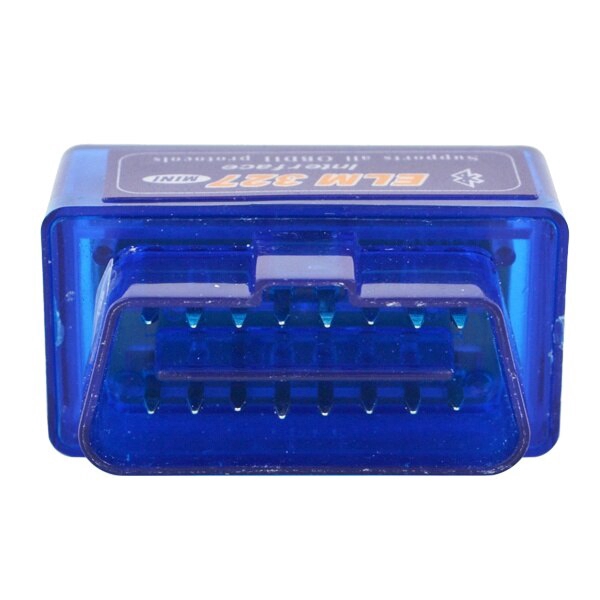

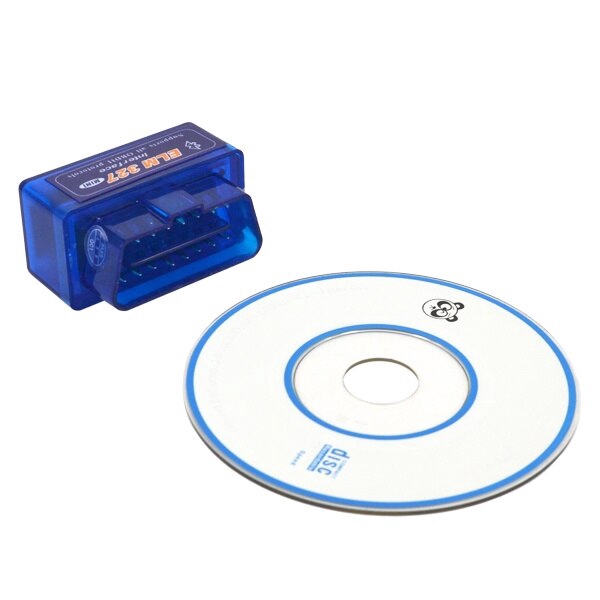

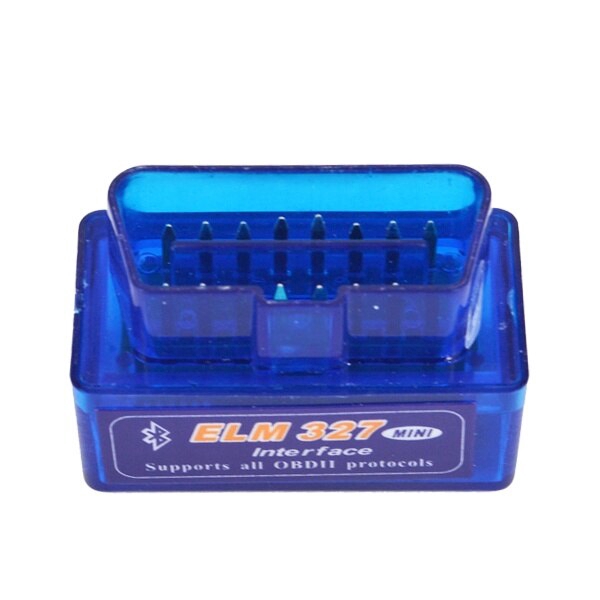

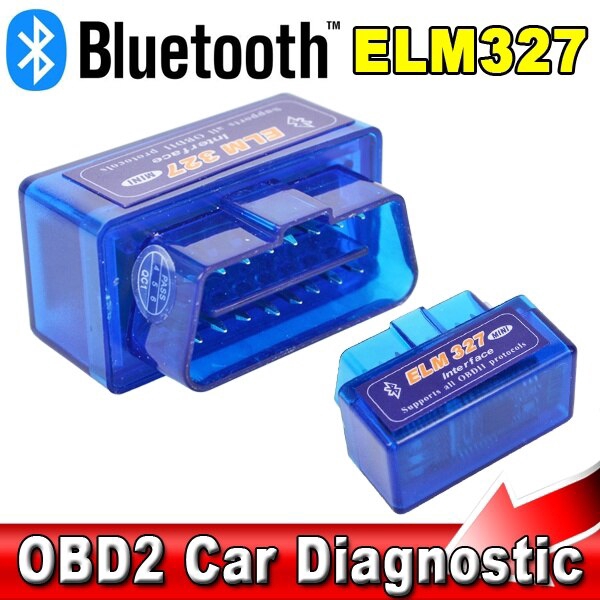

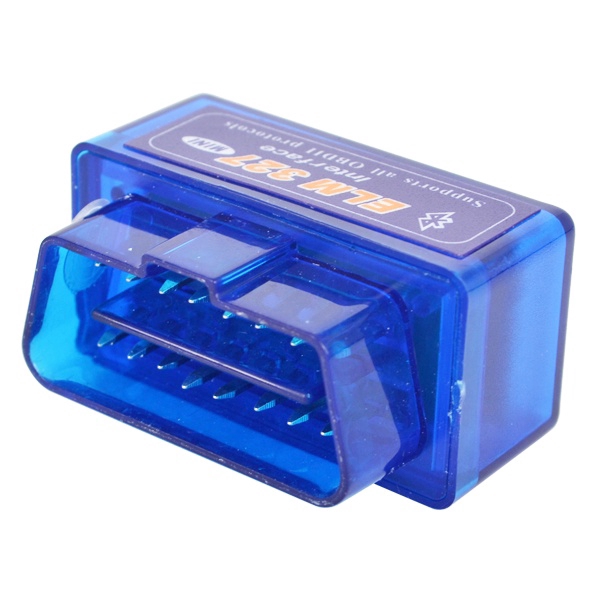

Hình ảnh sản phẩm
