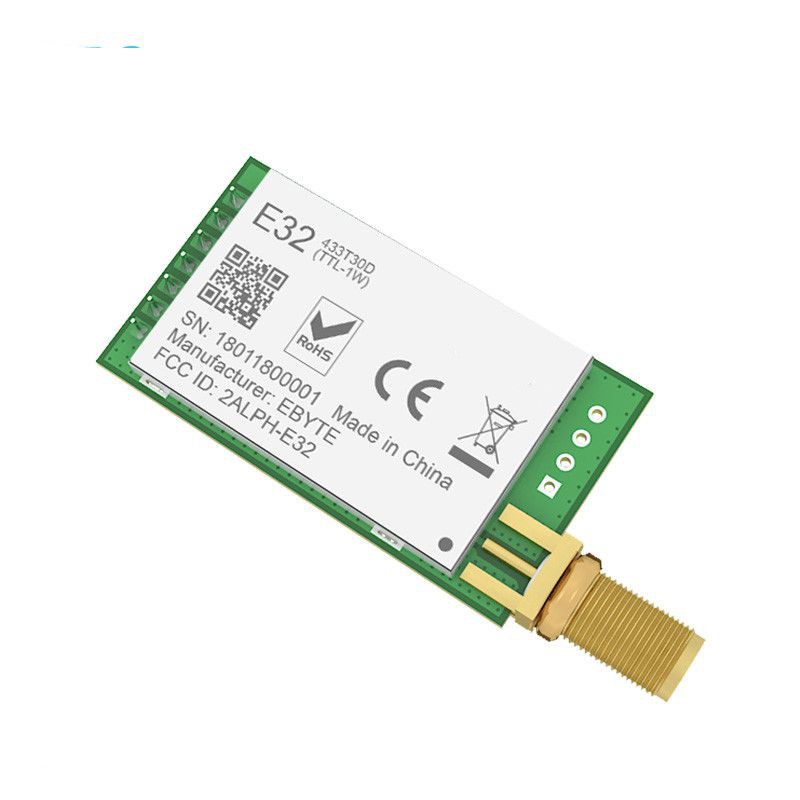

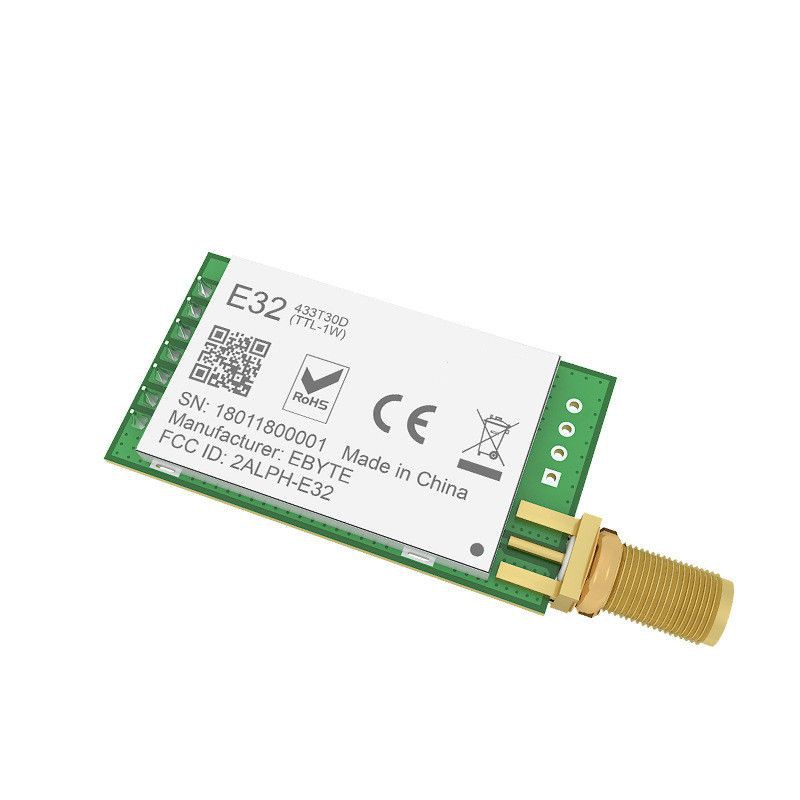

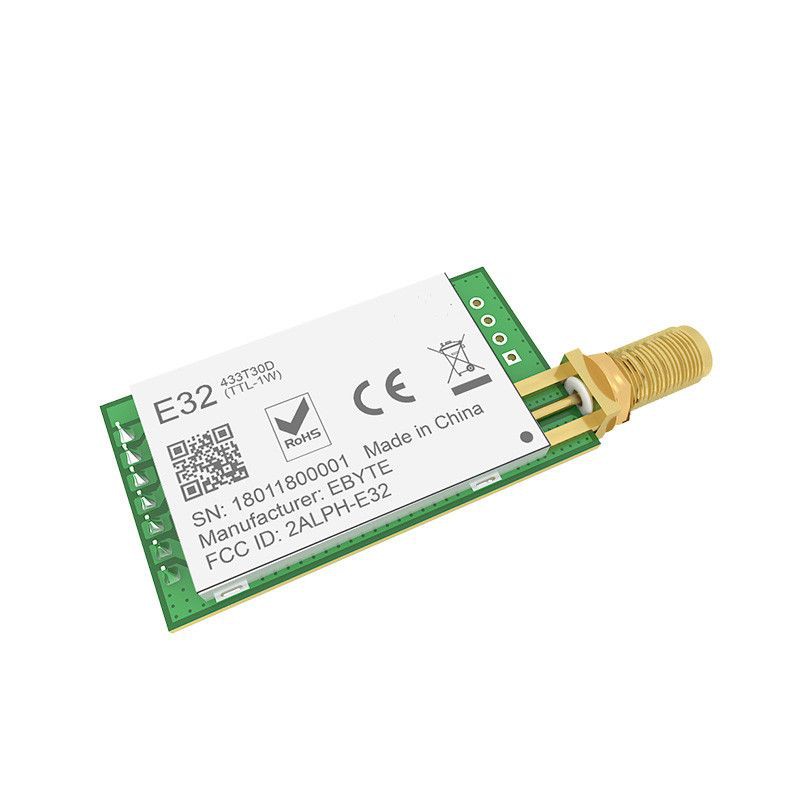

Giới thiệu Bộ Thu Phát Tín Hiệu 433mhz 30dbm 1w E32-433T30D Sma
Description:100% brand new and high quality.
Feature:
Made of high-quality material, durable, firm and stable for us to use.
This 2.4Ghz wireless transceiver module based on nRF24L01P with SPI interface features small size and various application usage.
This module is embedded with imported electronic parts, such as industrial crystals with high precision and TCXO.
In open and clear air, with maximum power, 5dBi antenna gain, height of 2m.
Wireless RF Module only, other accessories demo in the picture is not included!
Specifications:
Item Type: Wireless RF Module
Model Number: E32-433T30D
working frequency:410～411MHz(Default: 433MHz)
Transmitting power:21~30 dBm(Default: 30dBm（About 1W）)
Test distance:8000 meter(In open and clear air, with maximum power, 5dBi antenna gain, height of 2m,)
Communication interface:UART(Baud rate: 1200~115200, default: 9600)
Package form:DIP in～line

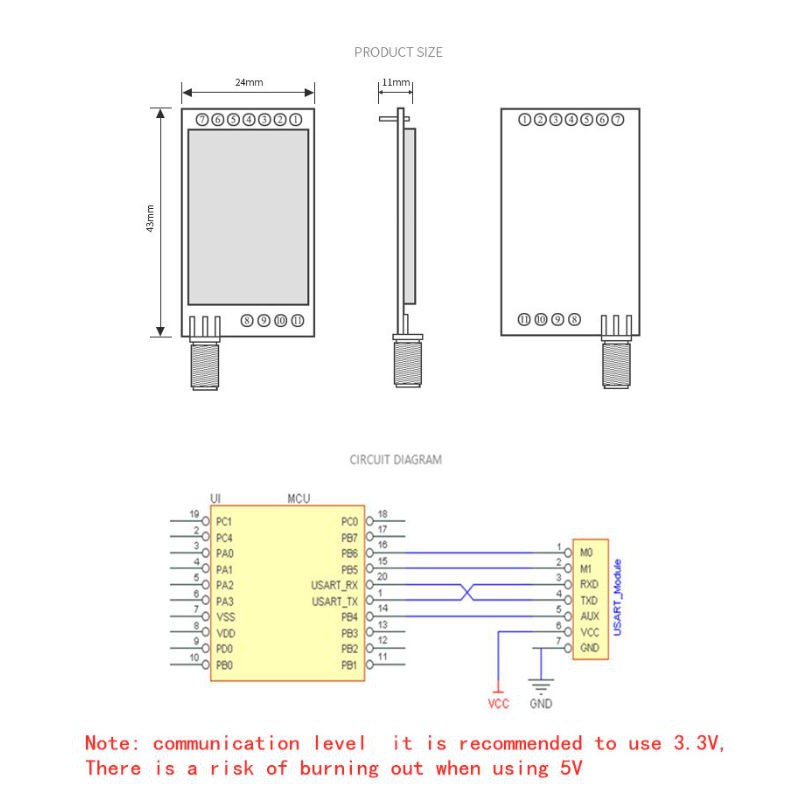

Product Size:43x24mm
Emission current:610mA(Typical value)
Supply voltage:3.3～5.2V DC(Typical value )
Operating temperature:一40°C～+85°C(Industrial grade)
Baud rate:1200～115200(Describe 9600)
Airspeed:03k～19.2kbps(Describe 2.4 kbps)
Send and receive length:512 byte(Automatically sub-packaging with 58 bytes per package)
Receive sensitivity:一147dbm@0.3kbps(0.3kbps)
Note:
No retail package.
Transition: 1cm=10mm=0.39inch
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package Includes:
1 x Wireless RF Module
