Giới thiệu Bộ Trộn Âm Thanh Mini Mx500 Rca 5 Kênh Chuyên Dụng Cho Live And Studi-O
#MX500 #Mini #Stereo #Microphone #Mixer #Rca #5-Channel #Mixer #Small #Mixer #Mixer #Stereo #Dispenser #for #LiveMX500 Mini Stereo Microphone Mixer Rca 5-Channel Mixer Small Mixer Mixer Stereo Dispenser for Live and Studi-o
Description:
100% brand new and high quality
Feature:
Five-channel stereo microphone mixer with earphone monitoring.

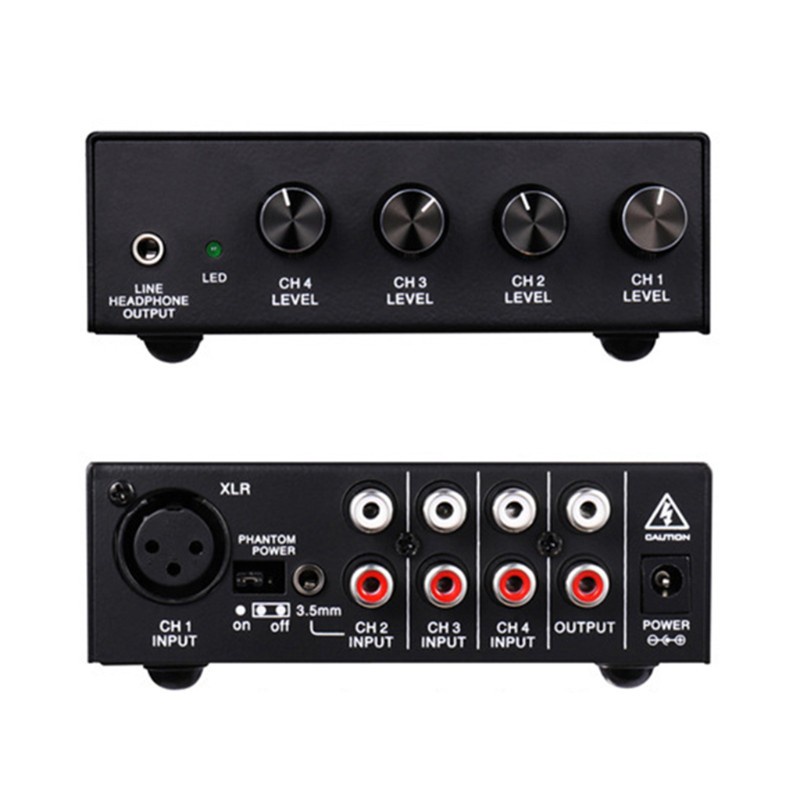

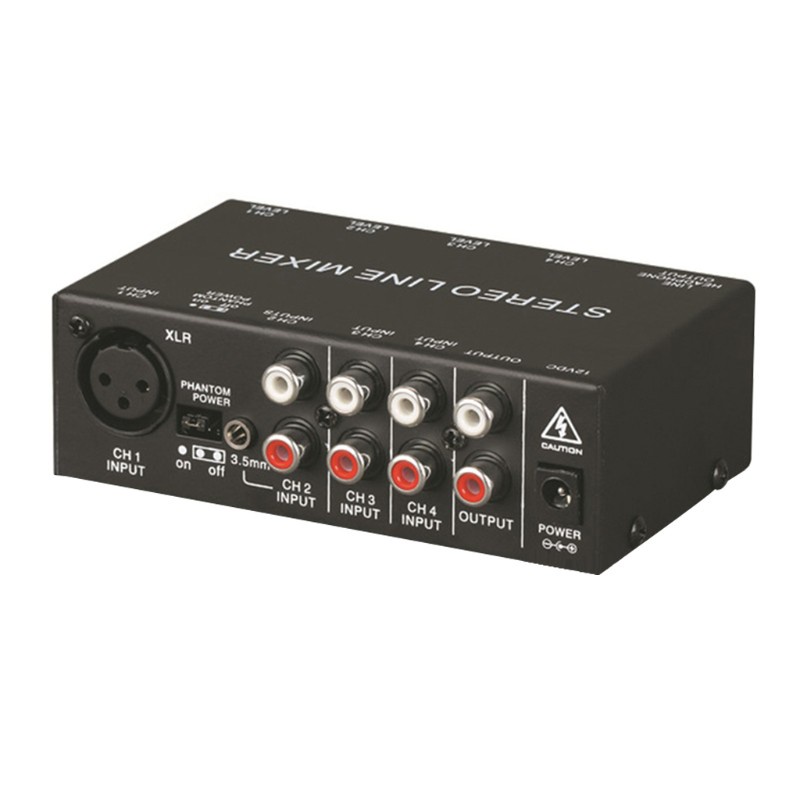

The MX500 is a mini five-channel stereo mixer designed for -audio and video applications with independent volume control and earphone/line output. The product has one XLR input, one 1/8 input and three groups stereo RCA inputs. It has enough gain and output level to connect to the power amplifier with RCA or 1 / 8 Jack. 12VDC adapter power supply. Channel 1 has a microphone XLR input with a switchable Phantom Power supply. Channel 2 has 1/8 and RCA input. Channel 3 and channel 4 have RCA jacks. The product can also output 1/8 headset output, can drive up to 600 ohms headphone, with a full frequency response.
DC PWR：used to connect a DC12V power supply.
OUT: stereo RCA jack for connecting mixers or amplifiers.
CH 4 and CH 3 INPUT: stereo RCA jack for connecting signal sources such as -CD player, tape deck, tuner, computer, mobile phone, tablet, etc.
CH 2 input: stereo RCA and a 1/8 jack (parallel) are used to connect signal sources, such as those mentioned in CH 3 and CH 4, or to wireless microphones or musical instruments. CH 1 INPUT: XLR Jack used to connect the microphone. A switchable jumper power source marked on the unit. Line/headphone output: 1/8 stereo jack for connecting sound console, amplifier, or stereo headset. CH 1-4 LEVEL: adjust the volume of each channel.
Specifications:
Item Type: Sound Mixer
Model: MX500
Material: ABS+Metal
For mixed microphone XLR input and up to three RCA input signals
Input impedance: 10K ohms per jack
CH 1 gain: 32dB XLR jack (maximum gain)
Phantom power: for CH 1 microphone XLR
CH2 gain: 26dB 1 / 8 "and RCA
CH 3 and CH 4 gain: each RCA--26dB
Output: 1/8 "stereo and stereo RCA
Signal-noise ratio: > 90dB
THD：<. 008％
IMD（SMPTE）：<. 008％
Power supply: 12V DC adapter

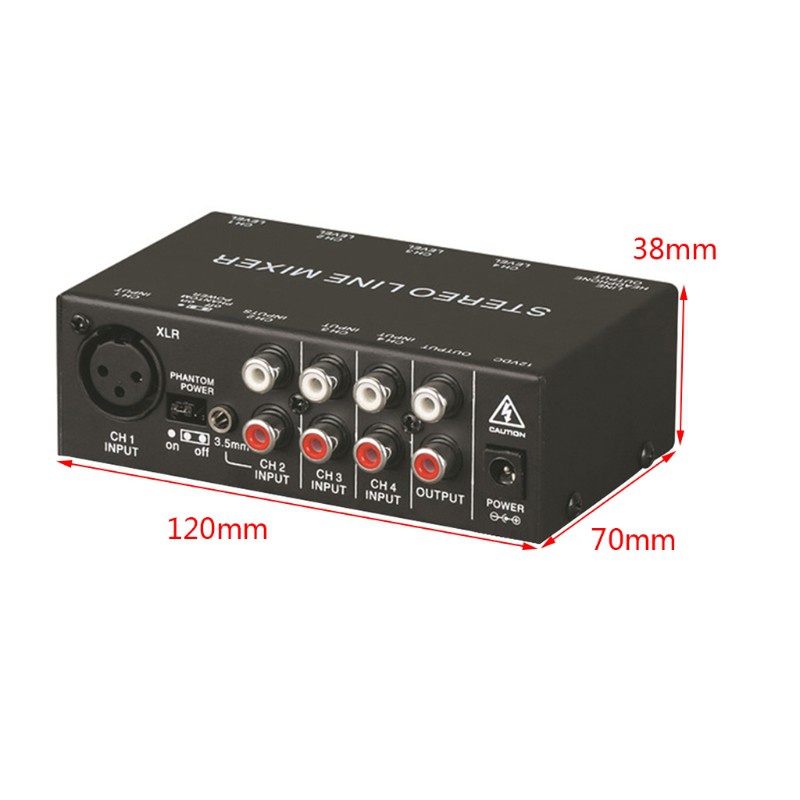

Size: 120x70x38mm
Color: Black
Quantity: 1 PC
Note:
Transition: 1cm=10mm=0.39inch
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

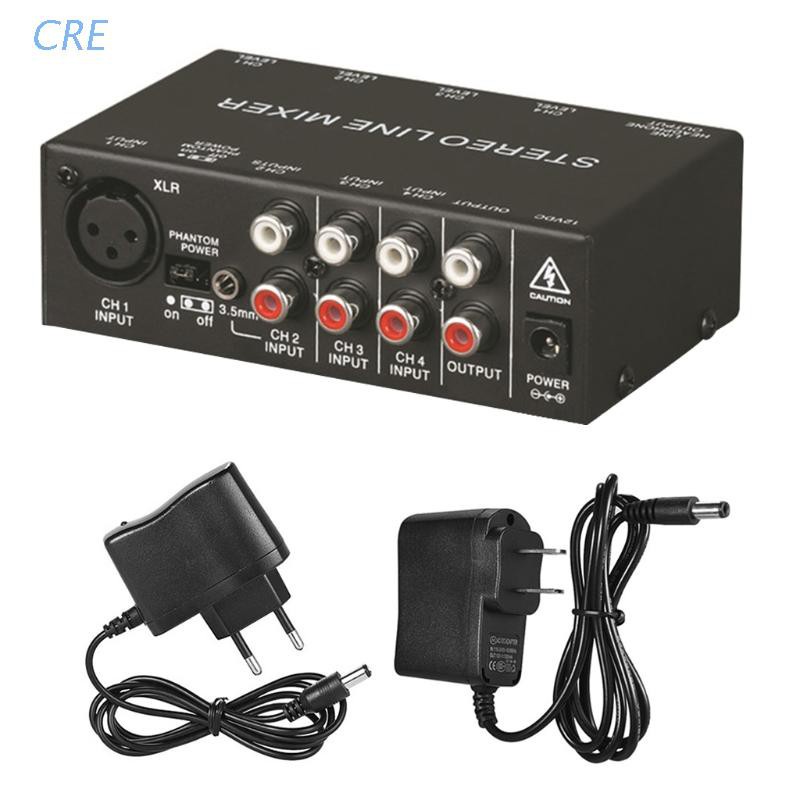

Package Includes:
1 x Stereo Microphone Passive Mixer
1 x Power Supply Adapter
