Giới thiệu USB Blaster descargar línea ALTERA (CPLD) CPLD FPGA programador estable de alta velocidad no calor

USB Blaster descargar línea ALTERA (CPLD) CPLD FPGA programador estable de alta velocidad no calor

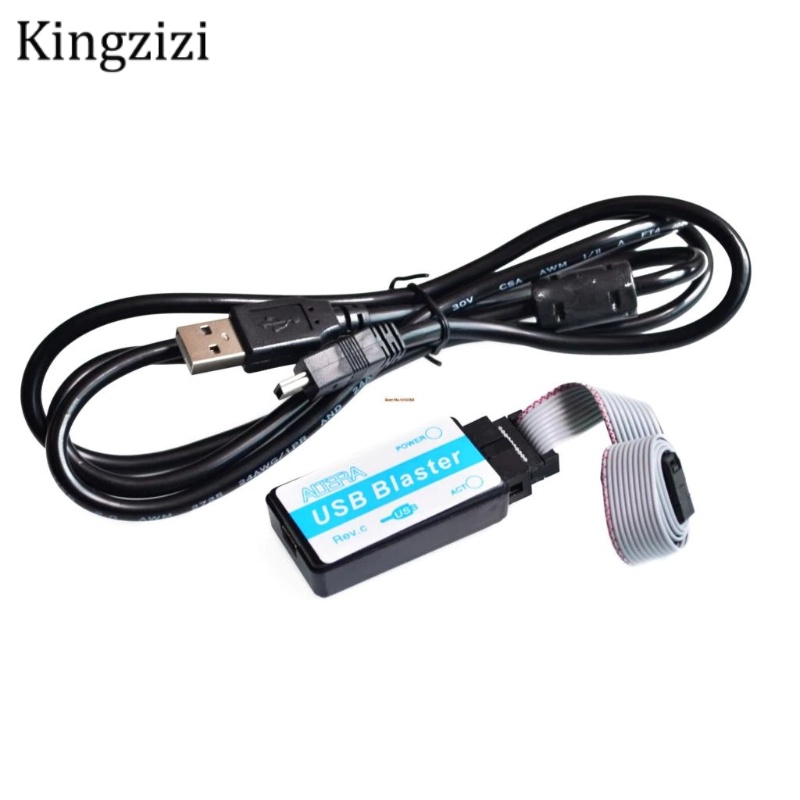

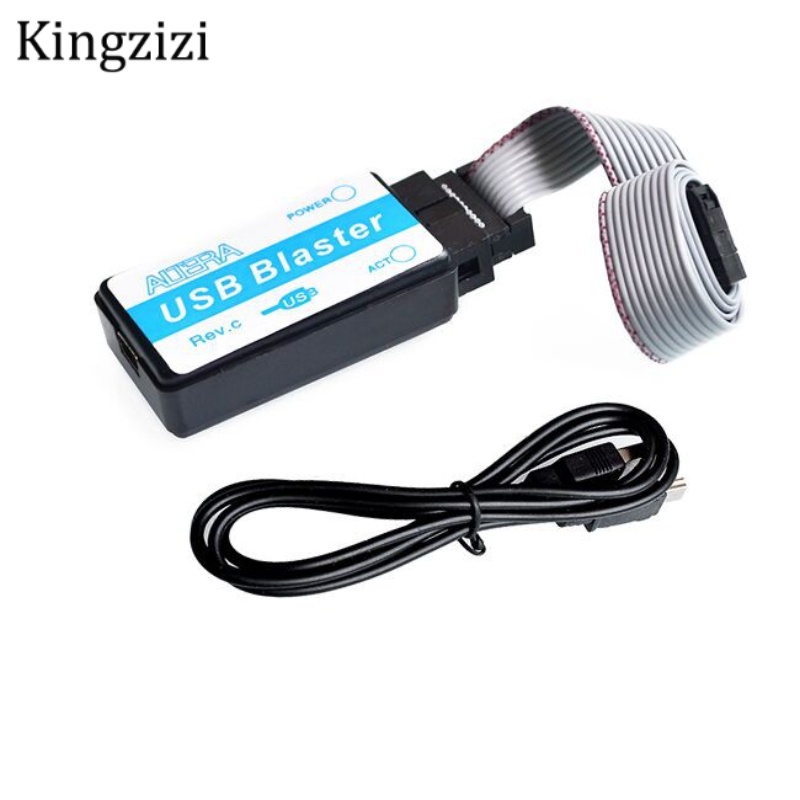

Basic features of this product USB Blaster downloader
1. Stable support for the integrated logic analyzer function SignalTap II, data capture will never catch up!
2. Supports the full range of ALTERA devices. Full range, do not worry about a device that is not compatible.
◇ (CPLD) CPLD: MAX3000 ... MAX7000 ... MAX9000 ... MAXII?
◇ FPGA: Stratix ... StratixII ... StratxIII ... cyclone CycloneII ... CycloneIII ... ACEX1K ... APEX20K ... FLEX10K?
◇ Serial configuration device active: EPCS1, EPCS4, EPCS16, EPCS64, etc.
◇ Improved configuration device: EPC1, EPC4, etc.
3. Supports three download modes: AS, PS and JTAG
4. supports communication with the integrated soft core processor Nios II and in the debugging system, Rev. C latest firmware.
5. Fast: 6 times faster than the popular parallel port download line ByteBlasterII
6. Easy to use: MiniUSB interface, easy to connect, 2 status indicators make debugging more comfortable
7 ESSENTIAL: At present, the laptop has almost eliminated the parallel port, so the download lines ByteblasterMV and ByteblasterII are often not used in the notebook, so for the user of the notebook, it is convenient to use the line of USB download.
8. Fully compatible with ALTERA USB Blaster, the use, function and performance are consistent with ALTERA original download line
9, WIN7 clients, download Quartus II10.1 or later.
Note: Version 8.1 or higher comes with a driver and no additional download is required;
