Van Khí Nén 3 Vị Trí 1 / 4 '' PT 5 Chiều

Giới thiệu Van Khí Nén 3 Vị Trí 1 / 4 '' PT 5 Chiều

Strict selction of each part including the material and other spare parts, fine processing of thread and coil fulfill the high quality of pneumatic valve.



Features:

Type: 5 way 3 position. Port Size: air inlet (P)= PT 1/4, air outlet (A B)= PT 1/4, air exhaust (R S)= PT 1/8.

Working Pressure Range: 1.5~8kgf/ cm². Working Temperature: -20~70℃.

Sensitive handle lightsome to change direction, stable to push and pull.

Valve body made of high precision aluminum alloy with high hardness and long service life.

Each thread is finely processed, no burrs, smooth and easy to install.



Specifications:

Material: Aluminium Alloy

Type: Optional

Type A: 5 Way 2 Position; Air Inlet=Air Outlet=PT 1/4, Air Exhaust= PT 1/8

Type B: 5 Way 3 Position; Air Inlet=Air Outlet=PT 1/4, Air Exhaust= PT 1/8

Type C: 5 Way 3 Position; Air Inlet=Air Outlet=PT 3/8, Air Exhaust= PT 1/4

Swing Angle:

Type A: ±15°

Type B: ±8.5°

Type C: ±10°

Working Pressure Range: 1.5~8kgf/ cm²

Working Temperature Range: -20~70℃

Working Medium: Air

Item Size:

Type A: 7.6 * 3.3 * 9.1cm / 3.0 * 1.3 * 3.6in

Type B: 9.3 * 3.3 * 9.1cm / 3.7 * 1.3 * 3.6in

Type C: 10.9 * 3.8 * 9.4cm / 4.3 * 1.5 * 3.7in

Item Weight:

Type A: 147g / 5.18oz

Type B: 182g / 6.41oz

Type C: 273g / 9.64oz

Package Size:

Type A: 7.9 * 7.0 * 3.6cm / 3.1 * 2.8 * 1.4in

Type B: 10.0 * 8.0 * 4.0cm / 3.9 * 3.1 * 1.6in

Type C: 15.5 * 8.5 * 5.0cm / 6.1 * 3.3 * 2.0in

Package Weight:

Type A: 159g / 5.60oz

Type B: 200g / 7.06oz

Type C: 307g / 10.81oz



Package List:

1 * Pneumatic Valve

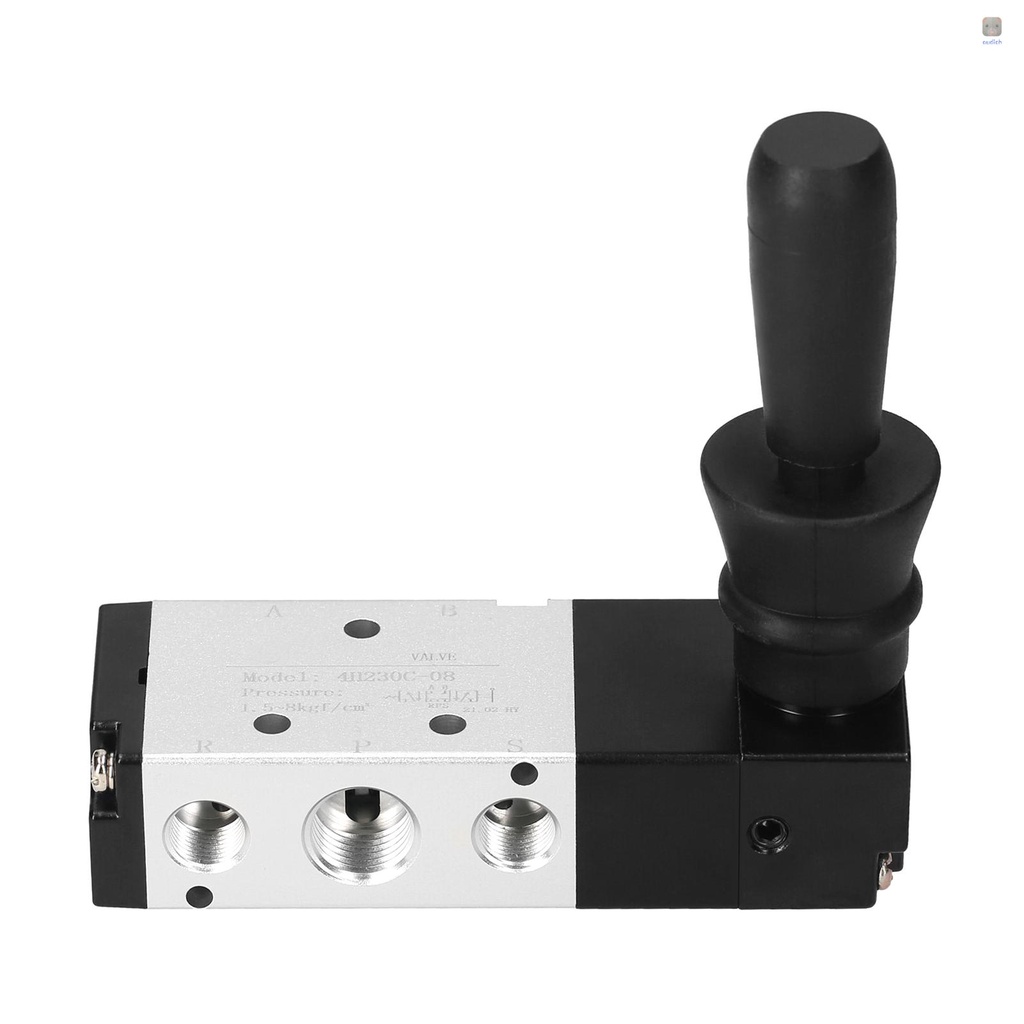

Hình ảnh sản phẩm
