Vạn Năng Kế Mastfuyi FY123 Đếm 6000 True RMS Kỹ Thuật Số Thông Minh 600V AC / DC

Giới thiệu Vạn Năng Kế Mastfuyi FY123 Đếm 6000 True RMS Kỹ Thuật Số Thông Minh 600V AC / DC

This meter is a handheld digital multimeter, with fast measurement speed, large LCD screen display and flashlight function, it is suitable for professional, factory, school, hobbyist or home use.



Features:

1. Digital Multimeter: The digital multimeter can measure AC and DC voltage, AC and DC current, resistance, capacitance, frequency, continuity, ambient temperature, NCV, true RMS, live wire, diode.

2. LCD Screen: LCD screen greatly enhance the reading experience. Backlight function make it very easy to read even in bright sunlight or poor light.

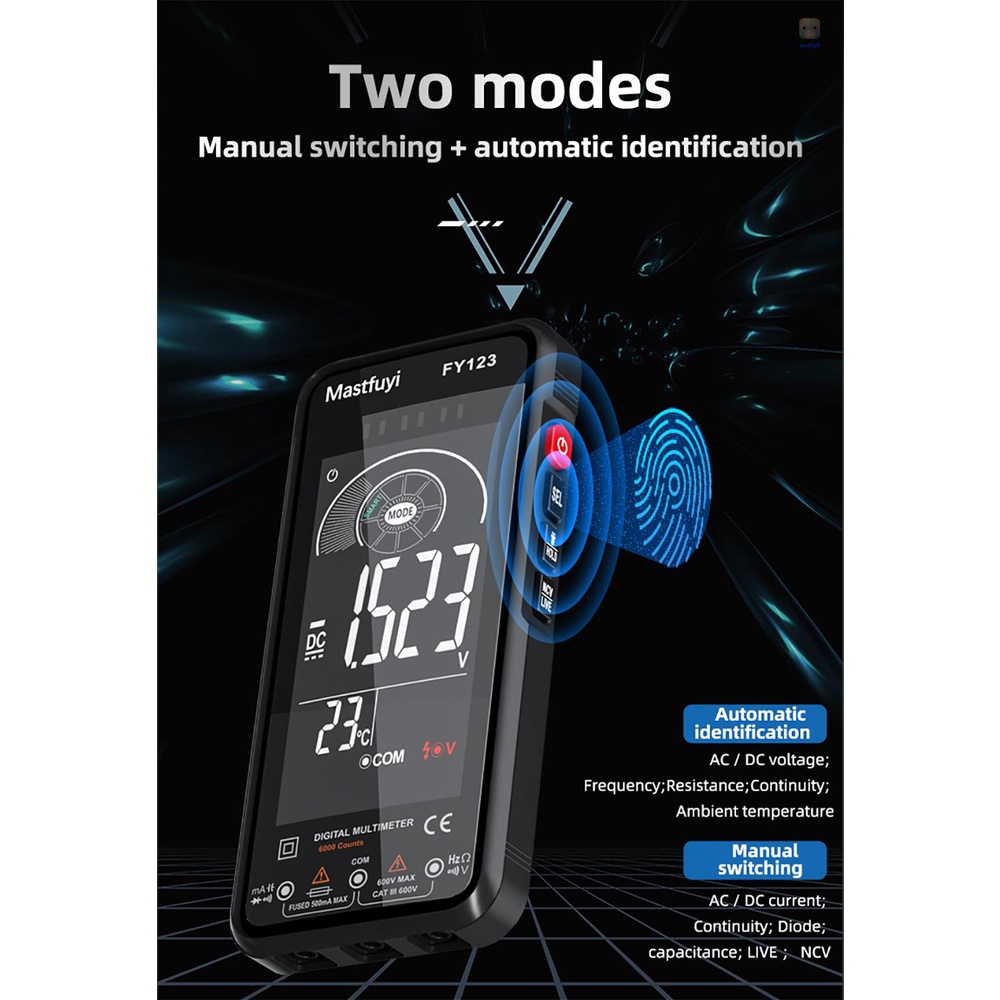

3. Smart (AUTO) Measurement: In smart mode, it can automatically measure AC / DC voltage, resistance, short circuit and frequency.

4. Flashlight Function: Flashlight design lets you test efficiently and comfortably anywhere, indoors and outdoors, day and night.

5. Convenient & Easy: The digital multimeter lets you test safely and efficiently, light and compact, easy to carry.

Note:

1. Do not measure any voltage higher than 600V DC / 600V AC to prevent electric shock or damage to the instrument.

2. Do not apply more than 600V DC voltage / 600V AC voltage between the common terminal and the earth to prevent electric shock or damage to the instrument.

3. Due to manual measurement, the size may be slightly different. Thank you for your understanding.

4. Due to different light conditions and different monitors, item color displayed in photos may be showing slightly different from real object.



Specifications:

Brand: Mastfuyi

Model: FY123

Color: Black

Shell Material: ABS

Application Environment: 600V CAT. Class II pollution

Altitude: < 2000 m

Working Environment Temperature And Humidity: 0~40 ℃ ( < 80% RH, not considered when 10 ℃ )

Storage Environment Temperature And Humidity: -10~60 ℃ ( < 70 % RH, remove the battery )

Conversion Rate: Approx. 3 times / s

Temperature Coefficient: 0.1 accuracy / ℃ ( < 18 ℃ or > 28 ℃ )

Display: 6000 counts LCD display

Over Range Indication: LCD will display "OL"

Maximum Allowable Voltage Between Measuring Terminal and Earth: 600V DC or 600V AC RMS

Battery Low Voltage Indication: YES

Data Hold: YES

Flashlight Function: YES

Overload Protection: YES

Auto Shutdown: No operation after 5 minutes

Input Polarity Indication: Automatically display "-" sign

Power Supply: 3 x 1.5V AAA battery ( not included )

Item Size: 16.2*8*2.4cm / 6.38*3.15*0.94in

Net Weight: 218g / 7.69oz

Packing Size: 20.5*13.5*4cm / 8.07*5.31*1.57in

Packing Weight: 430g / 15.17oz

( Please refer to the picture for more technical parameters. )



Package List:

1 * Multimeter ( with Protective Case )

2 * Test Leads

1 * Storage Bag

1 * Manual ( English )
