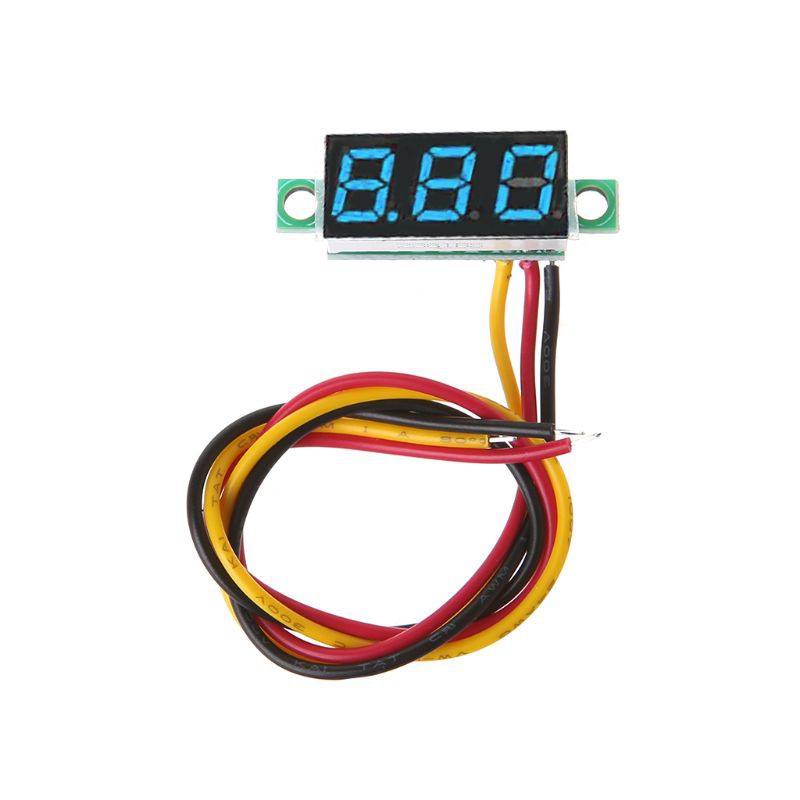

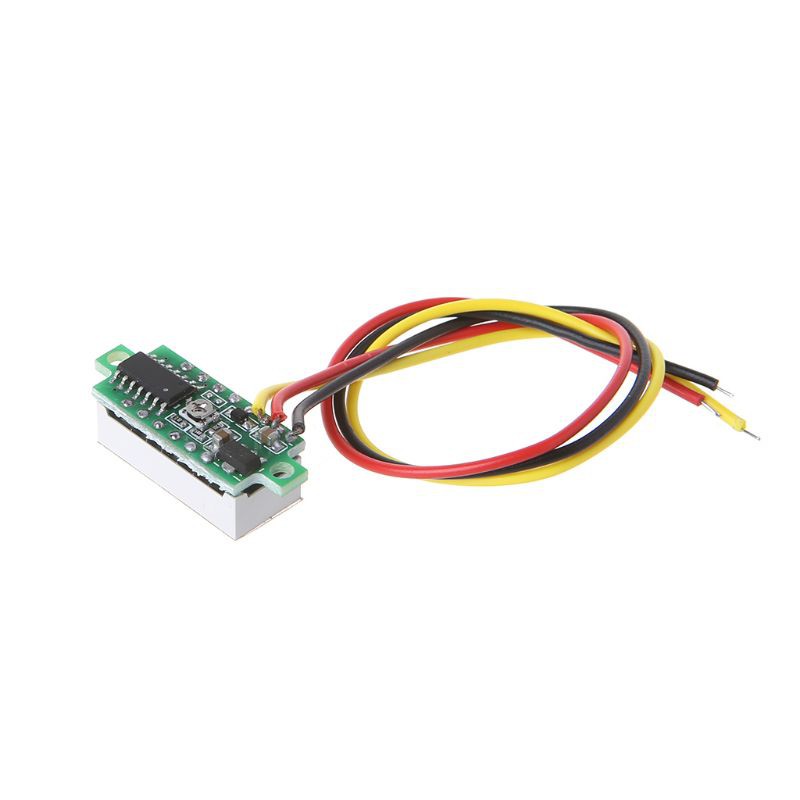

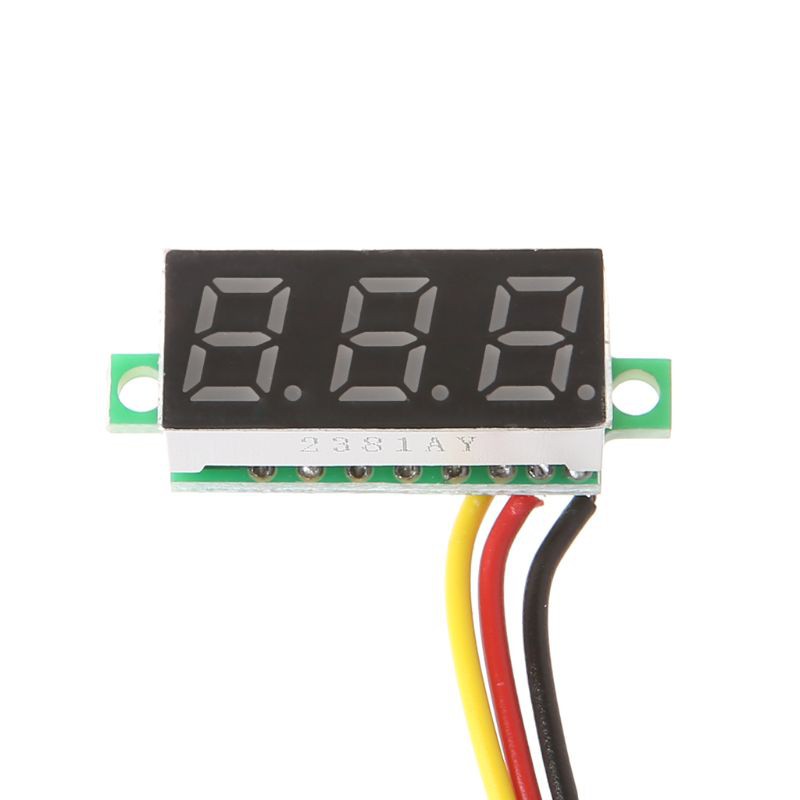

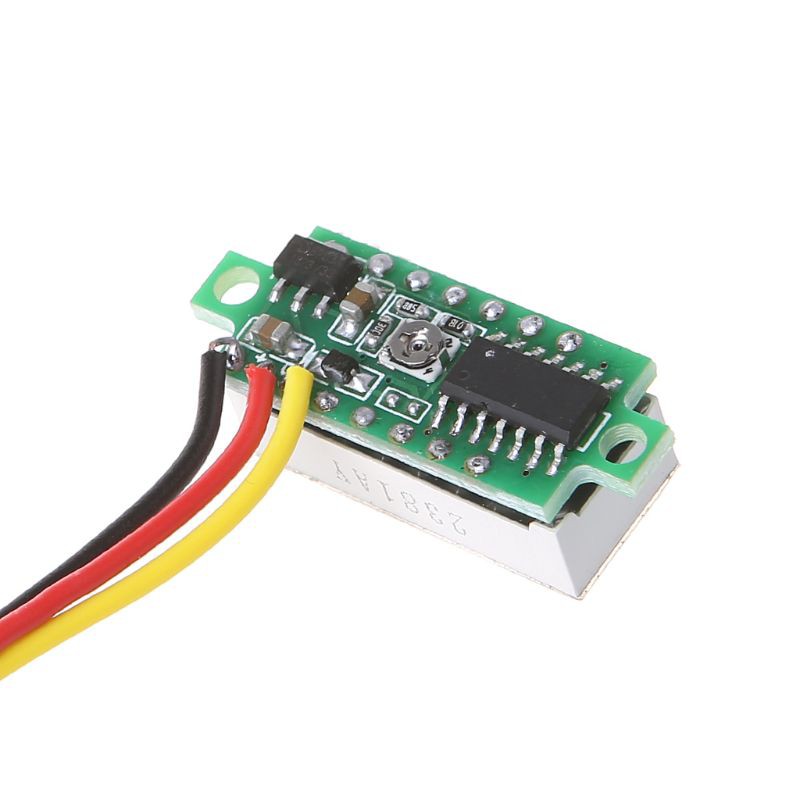

Vôn kế điện tử 0.28 inch DC 0-100V 3 có đèn LED

Giới thiệu Vôn kế điện tử 0.28 inch DC 0-100V 3 có đèn LED

100% brand new and high quality.
Description:
Range DC 0-100V, 2-wire and 3-wire products are common, breaking the conventional voltmeter, is the latest design, can work directly in 5V, 9V, 12V, 24V and other circuits, no need for voltage regulation.
Equipped with three wirings, it is easy to connect to the car/battery car/motorcycle car line, with reverse connection protection function, the wire connection will not burn.
It is used to monitor the battery voltage, keep abreast of the battery voltage status, and can also be used for voltage measurement of other products.
Note: The three-wire use voltage range is 0-100V, which can also be used for two-wire but the voltage should be within 40V.

Features:
1. Good product stability and high measurement accuracy
2. The appearance is standard size and easy to install
3. Power supply uses polarity protection circuit

Specifications:
2-wire working voltage: 4.0~40V (with reverse connection protection)
2-wire detection voltage: 0.0~40V
3-wire working voltage: 4.0~40V (with reverse connection protection)
3-wire detection voltage: 0.0~100V
Working current: <20mA

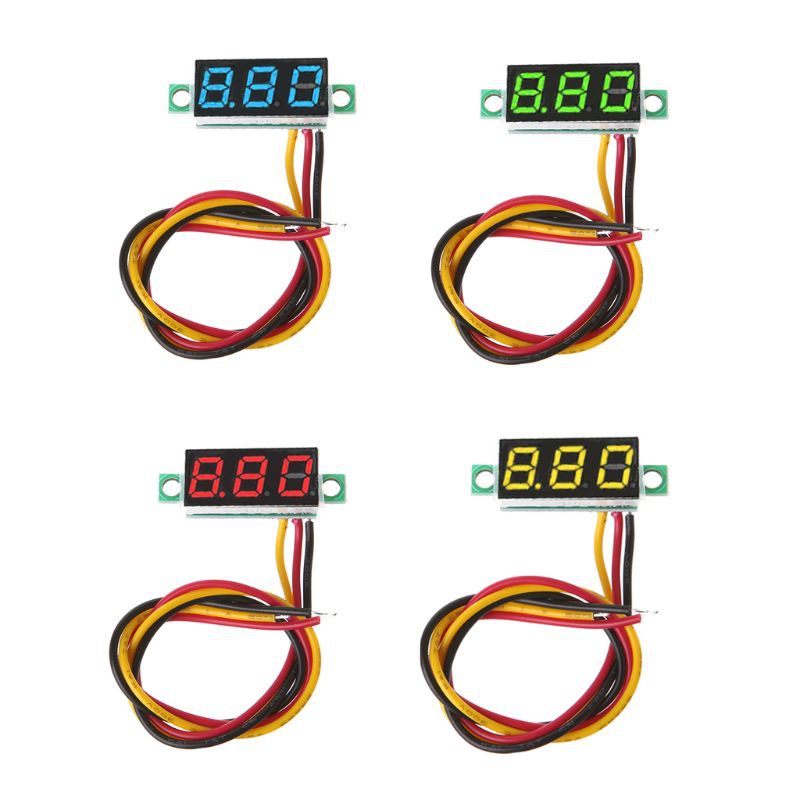

Display mode: 0.28" LED, red blue green yellow (color optional)

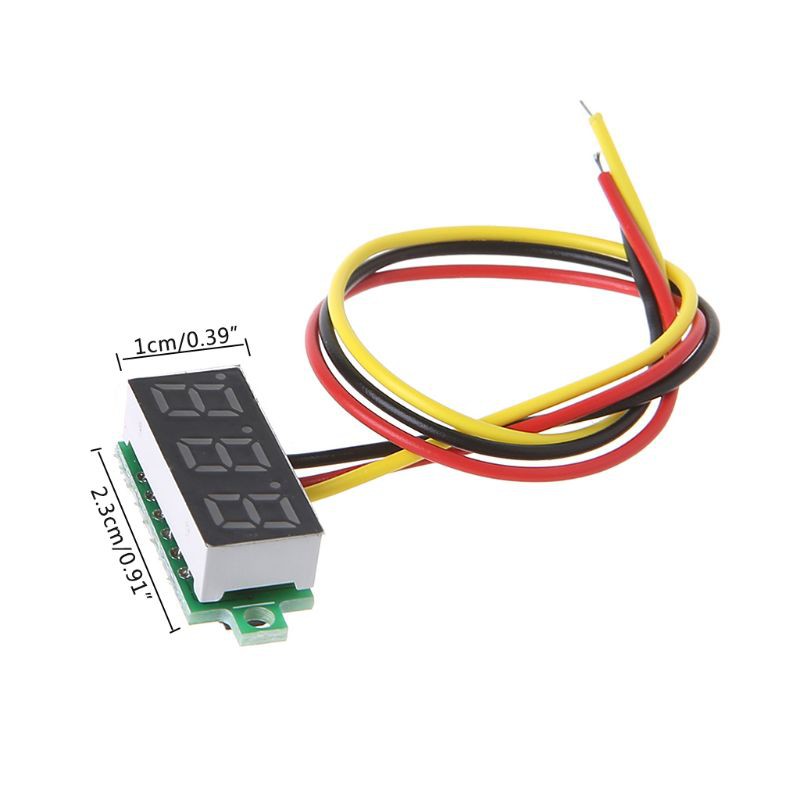

Mounting opening: 23 × 10 mm
Measurement rate: ≥200mS/time
Measurement accuracy: 3%
Minimum working voltage: +4.0V
Maximum working voltage: +40V
Working temperature: -10 ~ +65 ° C
Working humidity: 10~80% (no condensation)
Working pressure: 80 ~ 106kPa
Sunlight: no direct illumination

Note: Please allow 1-3cm error due to manual measurement. please make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes:
1 × Digital Voltmeter
#Vôn kế điện tử 0.28 inch DC 0-100V 3 có đèn LED
