Vôn Kế Điện Tử 3 Dây 0.56in Dc 0-100v

Giới thiệu Vôn Kế Điện Tử 3 Dây 0.56in Dc 0-100v

Description:
1.This voltmeter uses 0.56inch LED digital tube and partially closed ABS plastic casing without rear cover.
2.The voltmeter is super thin with small shape and low price and stable performances. It can display well.
3.This voltmeter's measurement range is wide，it's DC0-100V.
4.It need outer working power supply and the voltage is DC4.5-30V.
5.There is protection when the wires aren’t correctly connected.
6.This voltmeter's display resolution is 0.1V.
7.This voltmeter is suitable for clients who has DC power supply，because this can save cost. And it can be used when the voltage need to be measured from 0V.

Feature:
With 3 wires, easy connection; anti-impact shell, dust free plant producing; superior chip;
No extra power supply is needed for DC4.5- 30V voltage;
High precision, low starting working voltage; with reverse protection, prevent burning wires; fine adjustment function;

Specifications:
Measuring range: DC0-100V
The highest input: DC120V (risk of burning above this voltage)
Allowable error: ±1%
Display mode: three 0.56′′ LED digital tubes

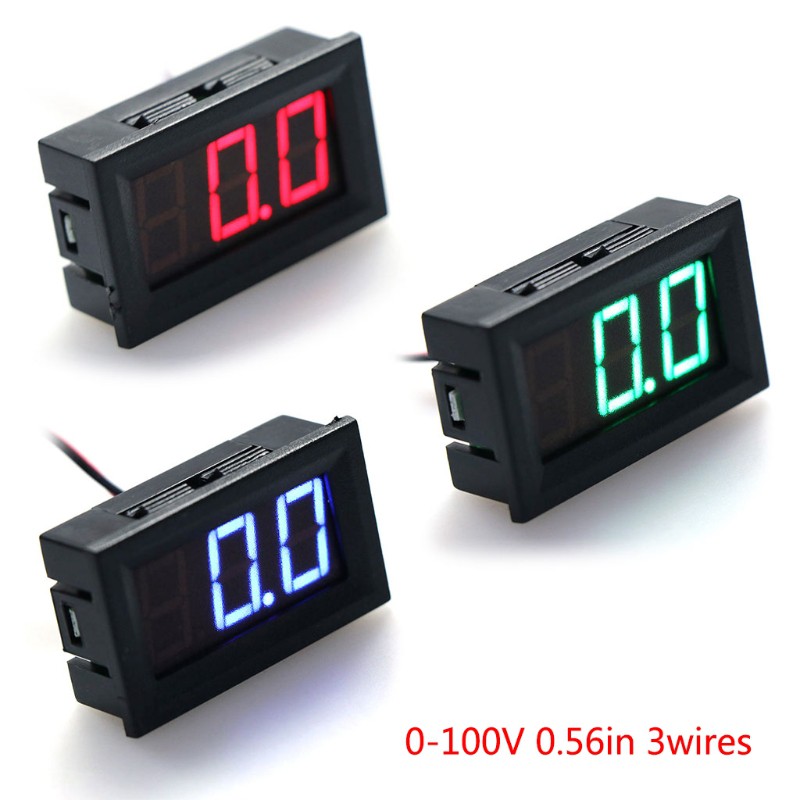

Display Color: Red/Green/Blue (optional)
Refresh rate: about 200mS/times
Power supply: DC4.5-30V
Current consumption: less than 20mA, generally 5-15mA
Working temperature: -10°C~65°C
Dimensions: 48mm x 29mm x 16mm / 1.89in x 1.14in x 0.63in (Length x Width x Thickness)
Opening size: 46mm x 27mm / 1.81in x 1.06in (Length x Width)
Lead length: 20cm

Precautions

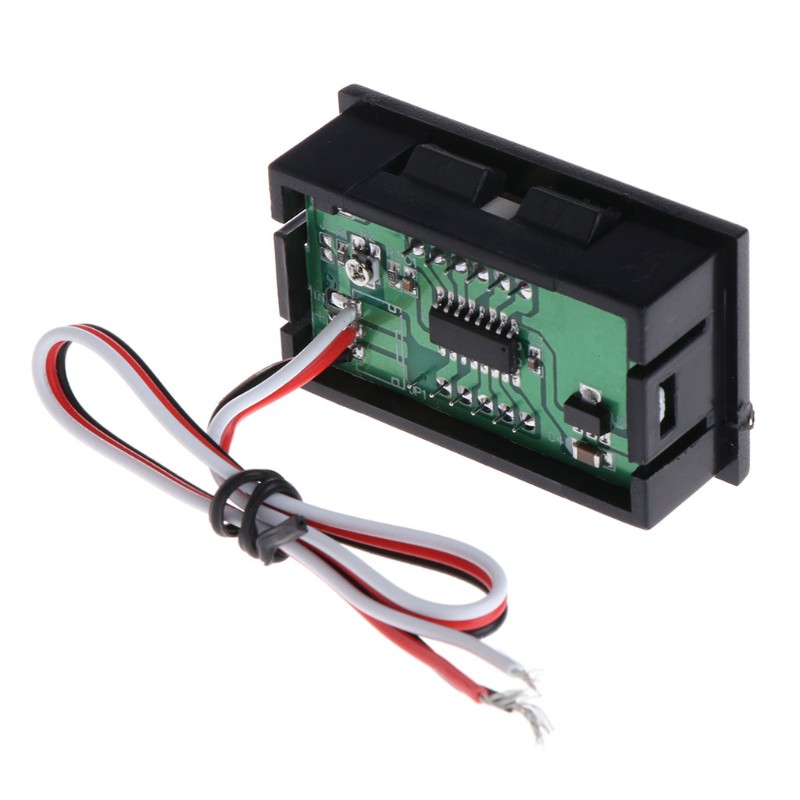

1.This voltmeter's measurement range is 0-100V，this voltage is just measurement signal and it can't be regarded as voltmeter's working power supply. This voltmeter need outer working power supply which can supply DC4.5-30V as working power supply. About three wires，the black wire is communal negative pole，the white wire is connected to measuring voltage's positive pole，the red wire is connect to working power supply's positive pole，the measuring circuit and power circuit's negative pole are communal.
2.The voltage of this voltmeter's working power supply is 4.5-30V，30V is the voltmeter’s maximum operating limited voltage，please leave enough margin when working，to avoid voltmeter’s permanent damage because of electrical spark，power supply ripple，or other too high abrupt change of voltage.
3.This voltmeter didn’t do moisture-proof,waterproof,shockproof,anti-oil processing,please be careful or handle by yourself when using.

Package include:
1 x DC100V Voltmeter

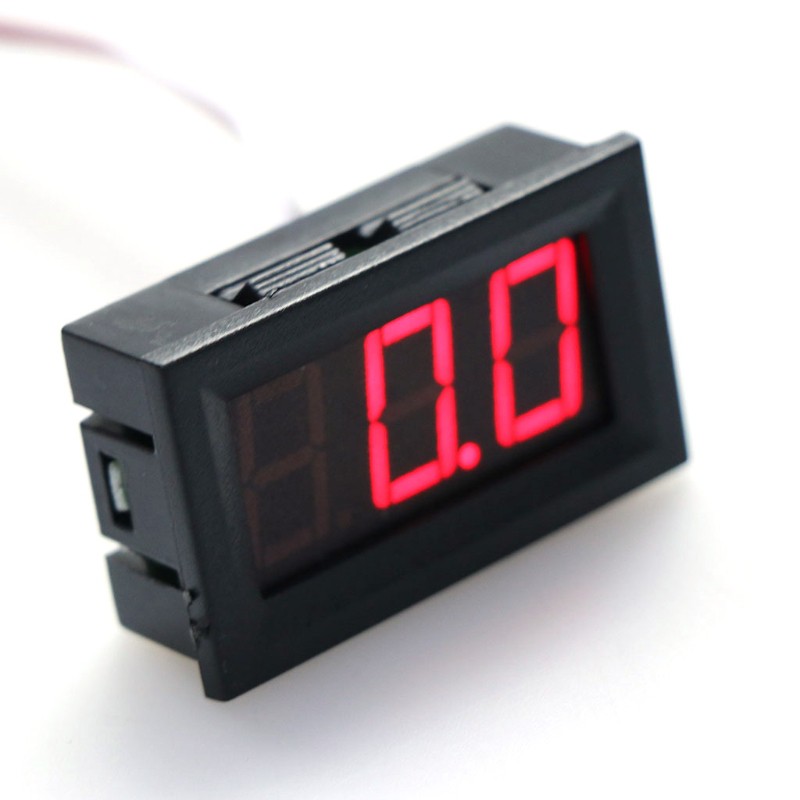

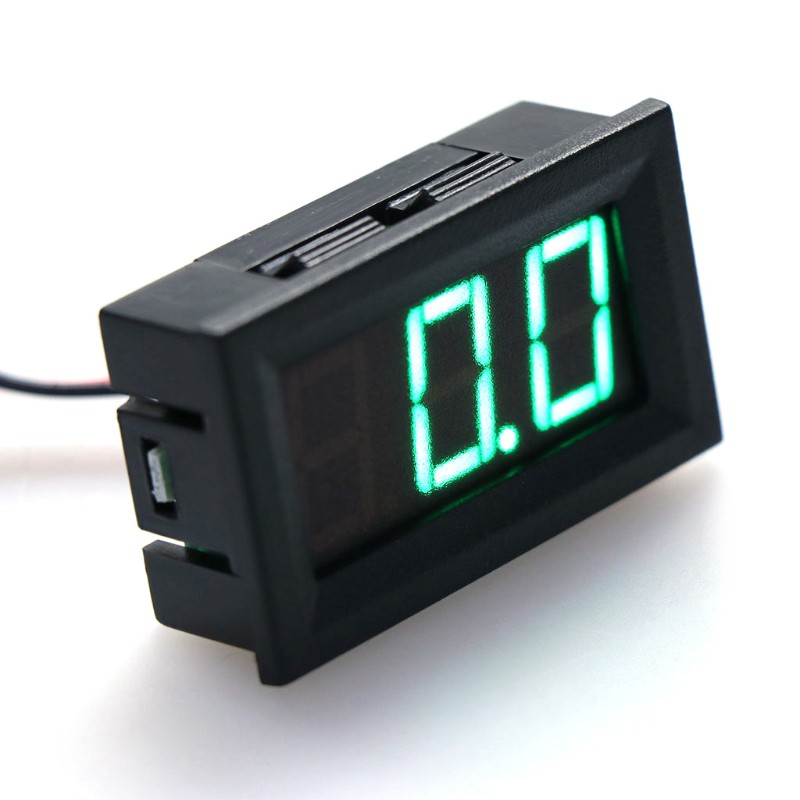

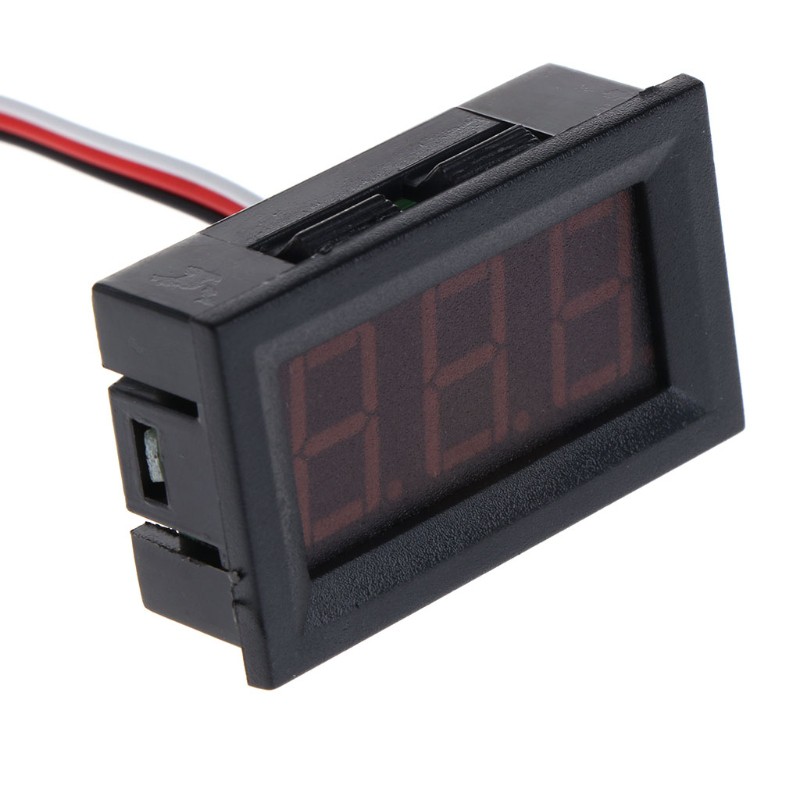

Hình ảnh sản phẩm
