Description：
The MINI HDMI to SDI Converter allows HDMI signals to be shown on SDI display while ensuring high bit rates of 2.970 Gbit/s to give you high resolution signal without any loss. For professionals this means that it is now easier to convert your high def HDMI signal with audio to SDI for long distance transmission and display your work on SDI display.
II. Features
Shows HDMI source on SDI display.
SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s.

Supports HDMI input timings: 480i@59.94, 576i, 720p@50/59.94/60, 1080i@50/59.94/60, 1080p@23.98/24/25/29.97/30/50/59.94/60.
Converts HDMI signal to SDI:
480i/576i to SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s)
720p/1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s or 1.485/1.001 Gbit/s)
1080p to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s)
Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)
III. Package
3G HDMI to SDI Converter
5V1A DC Power Supply Adaptor
Operation Manual

IV. Specifications
Input Port 1 x HDMI
Output Port 1 x BNC (SDI/HD-SDI/3G-SDI)
SDI Transmission Rates 2.970 Gbit/s and 2.970/1.001 Gbit/s
In/Output Resolution 480i, 576i, 720p@50/59.94,60 ,1080i@50/59.94/60
1080p@23.97/24/25/29.97/30/50/59.94/60
Power SupplyDC 5V -12V
ESD Protection Human body model ±8kV (air-gap discharge) ,
±4kV (contact discharge)
Dimension 80mm x 41mm x 25 mm
Weight 150g
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
Elative Humidity 20 ~ 90% RH (Non-condensing)
Power Consumption (Max) 5W
V. Operation controls and Fuctions
3G HDMI to SDI converter

HDMI-SDI is a device designed to convert HDMI high-definition multimedia signals to SDI high-definition signals. At the same time will be separated by the HDMI audio signal embedded into the SDI signal, in order to achieve the sound and image synchronization transmission.

Features:
Input resolution support up to 1080P @ 60Hz.
Support HDMI input all the way, all the way SDI output
Adaptive HDMI input resolution
Embedded audio and image synchronization output
In line with HDMI1.4 standard, HDCP1.2 agreement, support CEC
Built-in ESD protection circuit, which can effectively prevent electrostatic damage Installation is simple and convenient

Product acessories
SDI-HDMI converter host 1 Taiwan
Power adapter 5V / 2A 1
1 manual

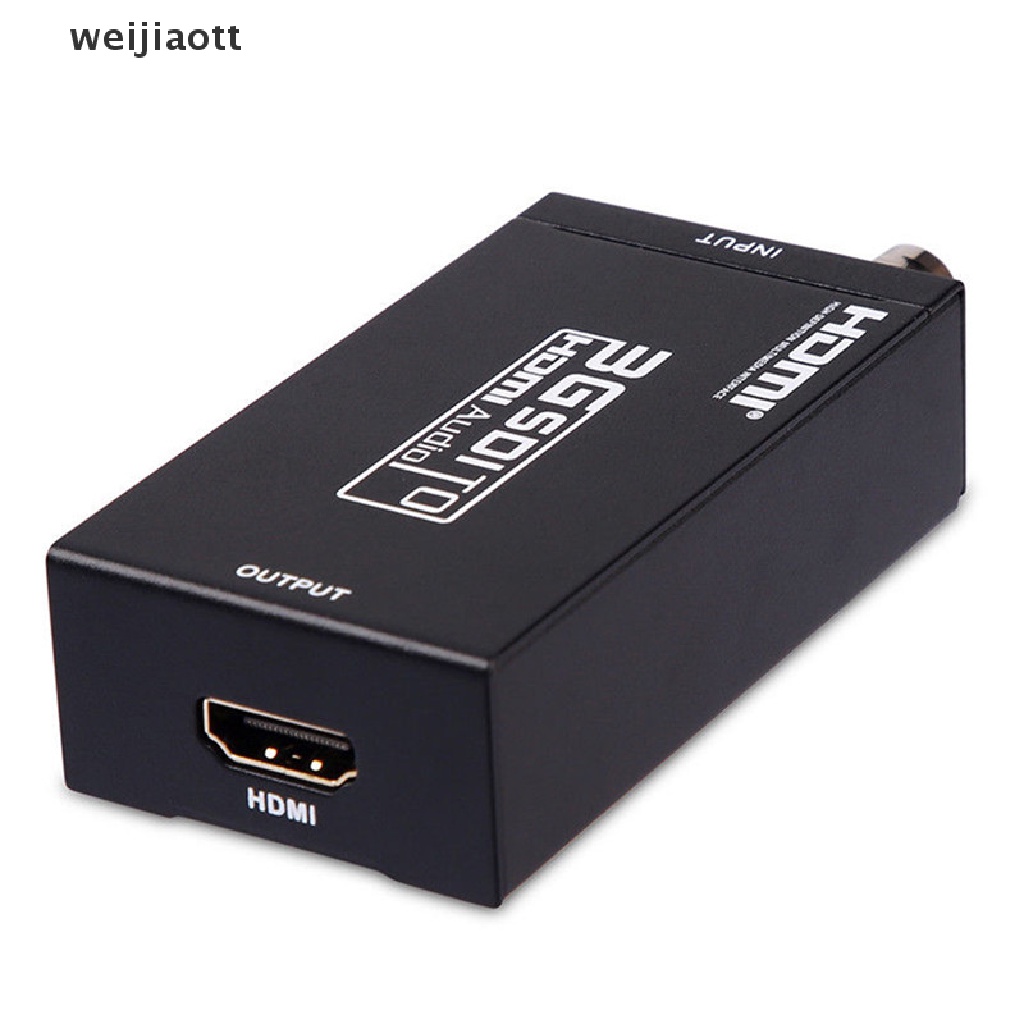

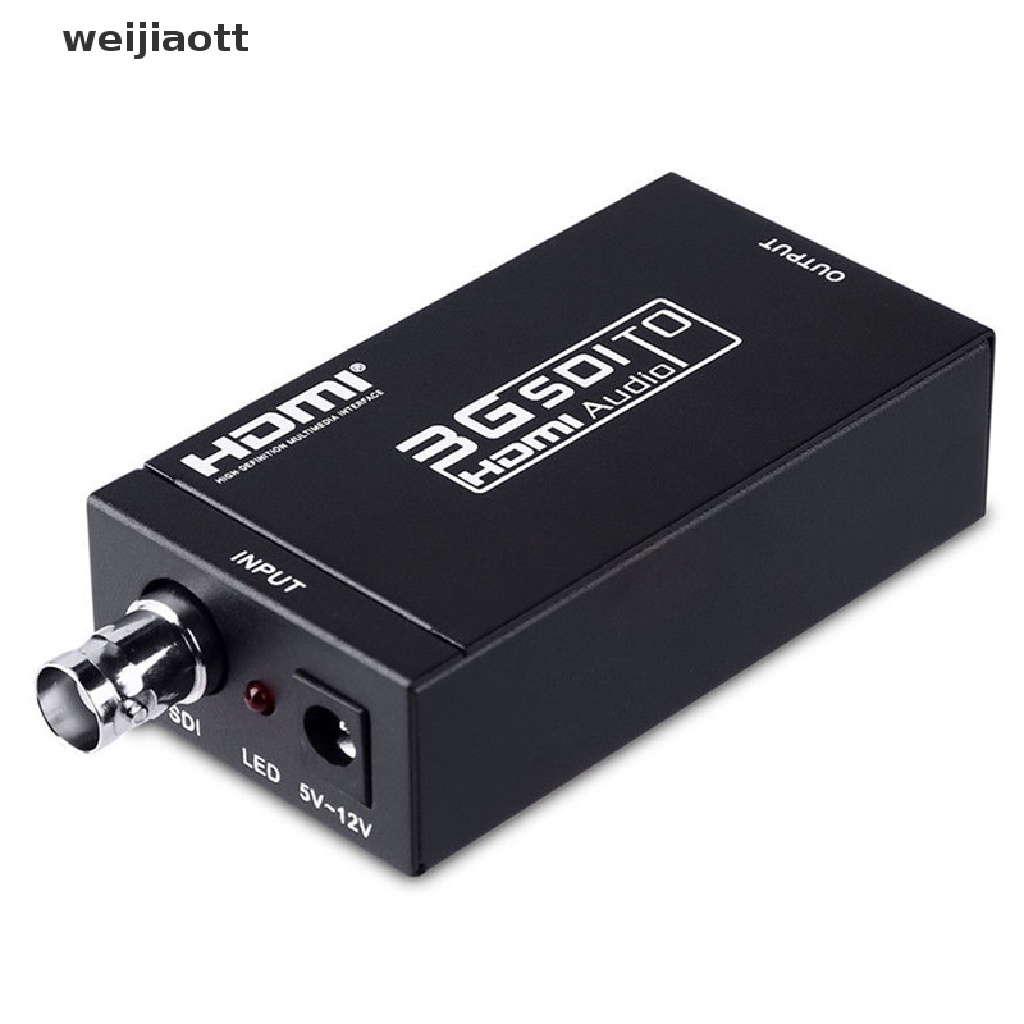

Hình ảnh sản phẩm
