Westvirginia058 DC 12V~48V 40A Brush Motor Governor Speed Control Module Electric Controller

Giới thiệu Westvirginia058 DC 12V~48V 40A Brush Motor Governor Speed Control Module Electric Controller

@Dear master, it's been a long time for you, welcome to Xiaoer's
industrial shop *westvirginia058*

❥(^_-)Welcome the owner to pay attention to Xiaoer's industrial shop, we will have more and more exquisite gifts waiting for the owner❥(^_-)

❥#This shop has enough stock, the owner can add and place an order if he finds his favorite products. The owner is also welcome to collect this shop#❥

%#After the owner places the order, Xiaoer will deliver the goods quickly#The quality and quantity will be delivered to the owner#%

❥(^_-) If you place an order for this shop again or again, you will get more benefits. Xiaoer looks forward to your additional purchase and order❥(^_-)

------------------------------------Welcome Host-------------------------------------
Seller information & Disclaimer:
Company name：Shenzhen Huotong Bafang Cross-border E-commerce CO., Ltd
Address：Room 310, No 2007, Baoyuan Road, Labor Community, Xixiang Street, Baoan District, Shezhen
Business license number: 91440300MA5G3KT301
Any issue could directly contact us via shop web chat!

Disclaimer: We will take all the responsibility for the goods shipping not Shopee.

Features:
Use electronic control to adjust the working speed, reliable and stable performance.
DC motor governor input is direct current, can not be directly connected to AC, otherwise it will burn out.
Do not reverse connect the positive and negative poles of the DC power supply, otherwise the governor will be damaged.
The potentiometer knob can change the governor output duty ratio, thus changing the motor speed.

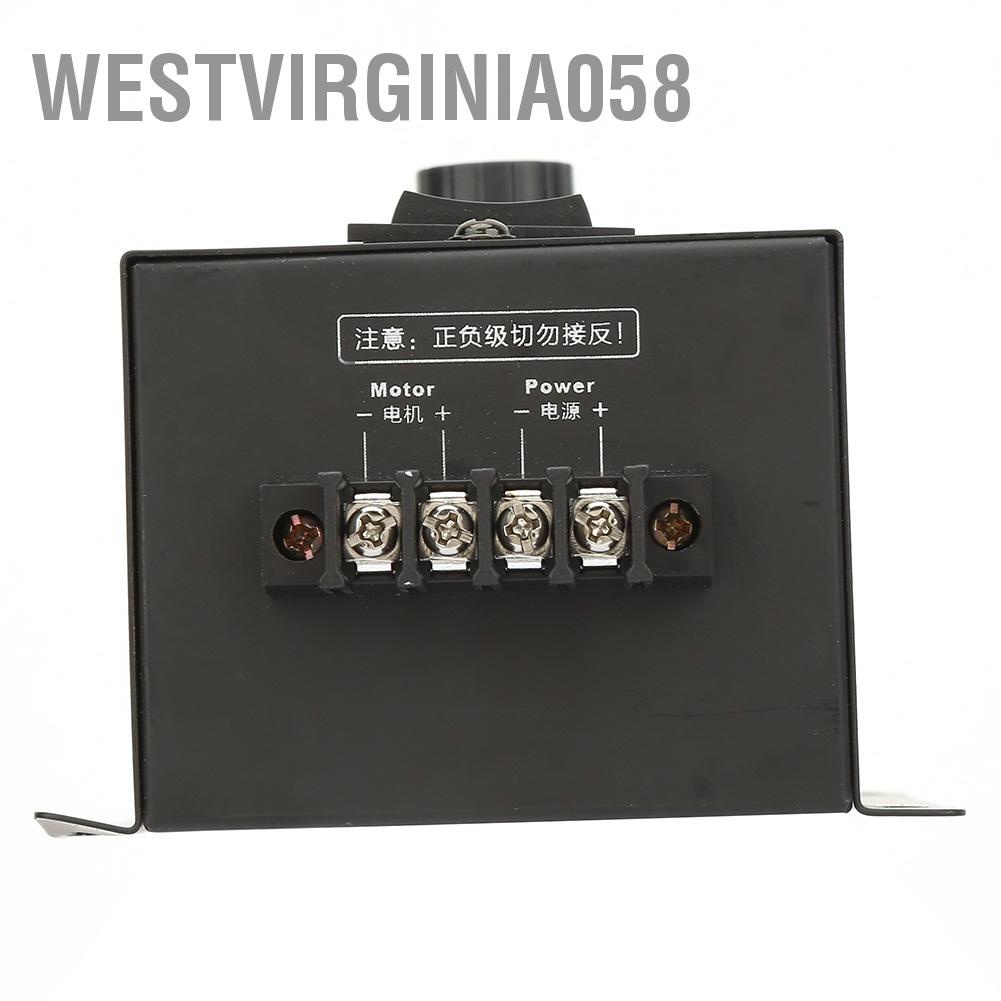

The motor can be connected without any positive or negative directions. The direction can be changed by adjusting the line sequence.

Specification:
Applicable voltage: DC12~48V (no AC connection)
Applicable current: rated current 20A; maximum current 40A; static current 0.005A
Power range: within 20A for a long time; limit power 1200W
Voltage regulating range: PWM output range 0% ~ 100%, (stop ~ maximum speed)
PWM frequency: 25kHZ

Package List:
1 x DC Motor Governor

Note:
This governor is only used for brush DC motor. It is not suitable for brushless DC motor and cannot be used as voltage regulator.
