Features:
This Ultra-thin port type relay is mainly used between the PLC controller and actuators, coupling switch amplification
AC solid state relay output, no spark, wear-resistance, durable
Overall shrinkage volume for saving space, TS - 35 rail installation
With LED input state indicator, IP20 protection shell contactless
Adjacent relay can bridge, fast connection operation
Input and output protection circuit, the isolation voltage can be up to 4 kv
Flame retardant shell, the integration of structure vibration resistance, impact resistance, stable performance

Specification:

Model: MRA-23D3
Relay type: solid state relay
Input: 3-32V DC
Output: 250V~ AC3A

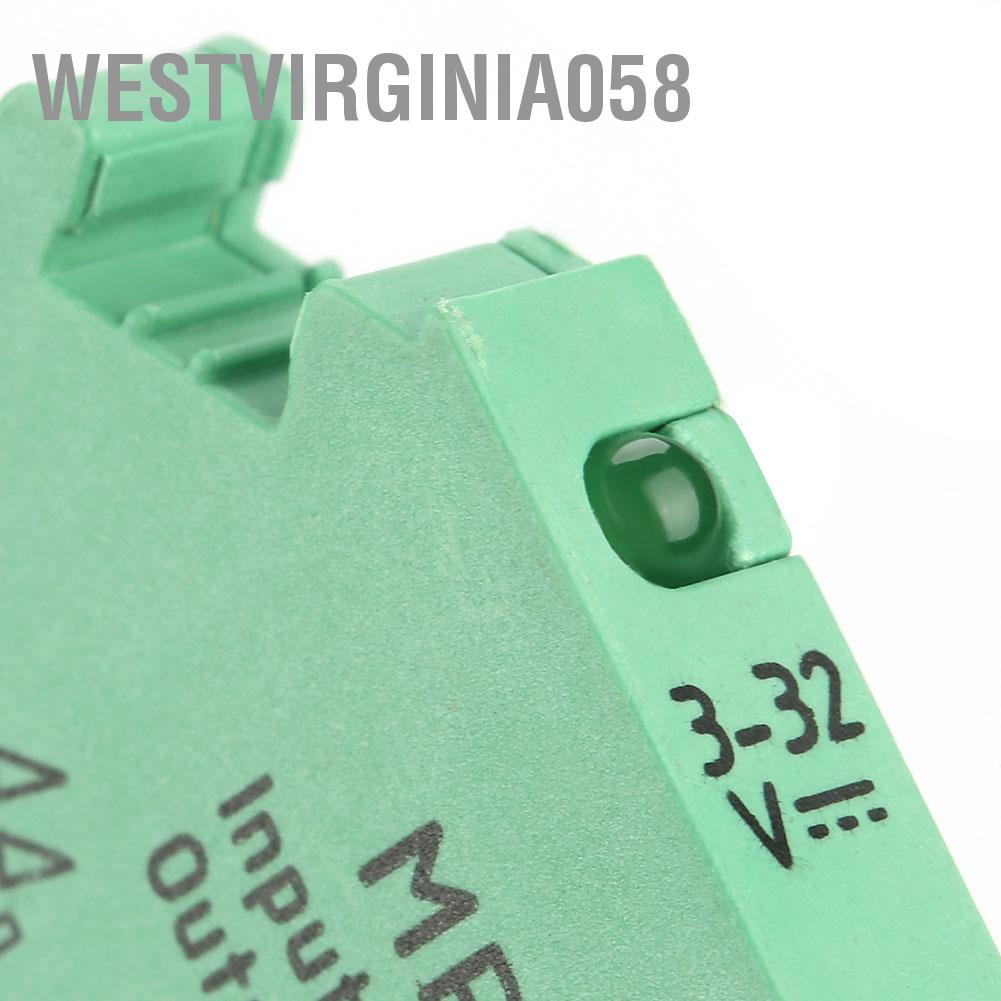

Status indicates: green led luminous tube
Protection circuit: diode reverse polarity protection
Input/output response time: 20ms
The isolation voltage rating: 4 kv
Working temperature: -25 ~ 60℃
Storage temperature: - 40 ~ 80℃
UL94 level of flame retardant: V - 0
Connection: screw connection
Weight: Approx.33g/1.1oz


Package List:
1 x PLC Interface Relay

Hình ảnh sản phẩm

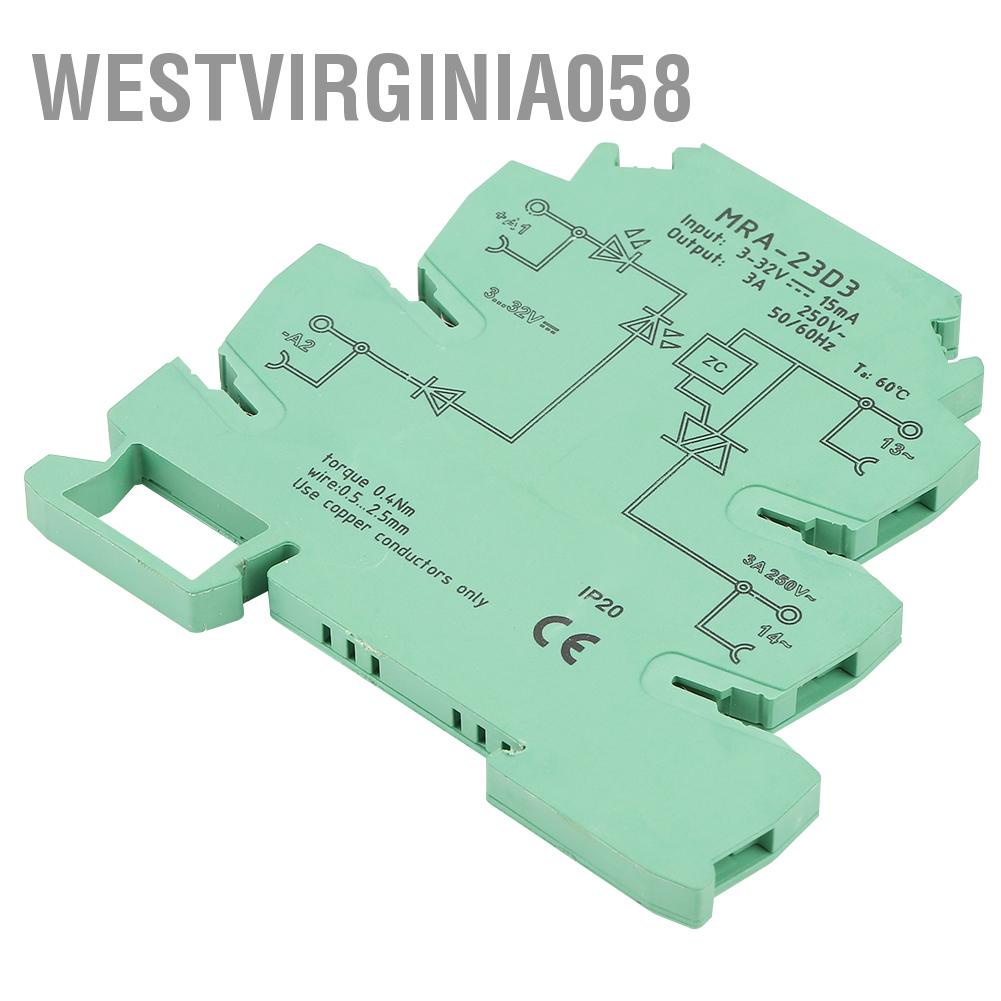

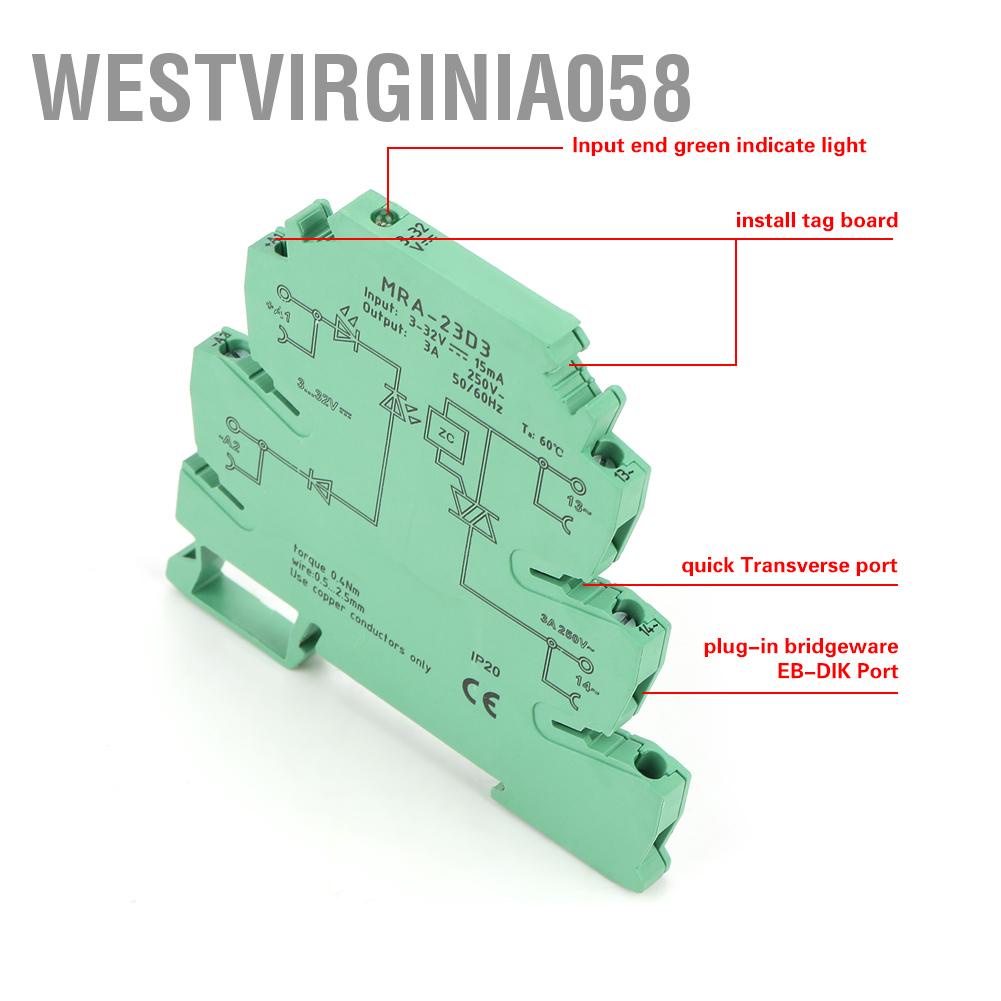

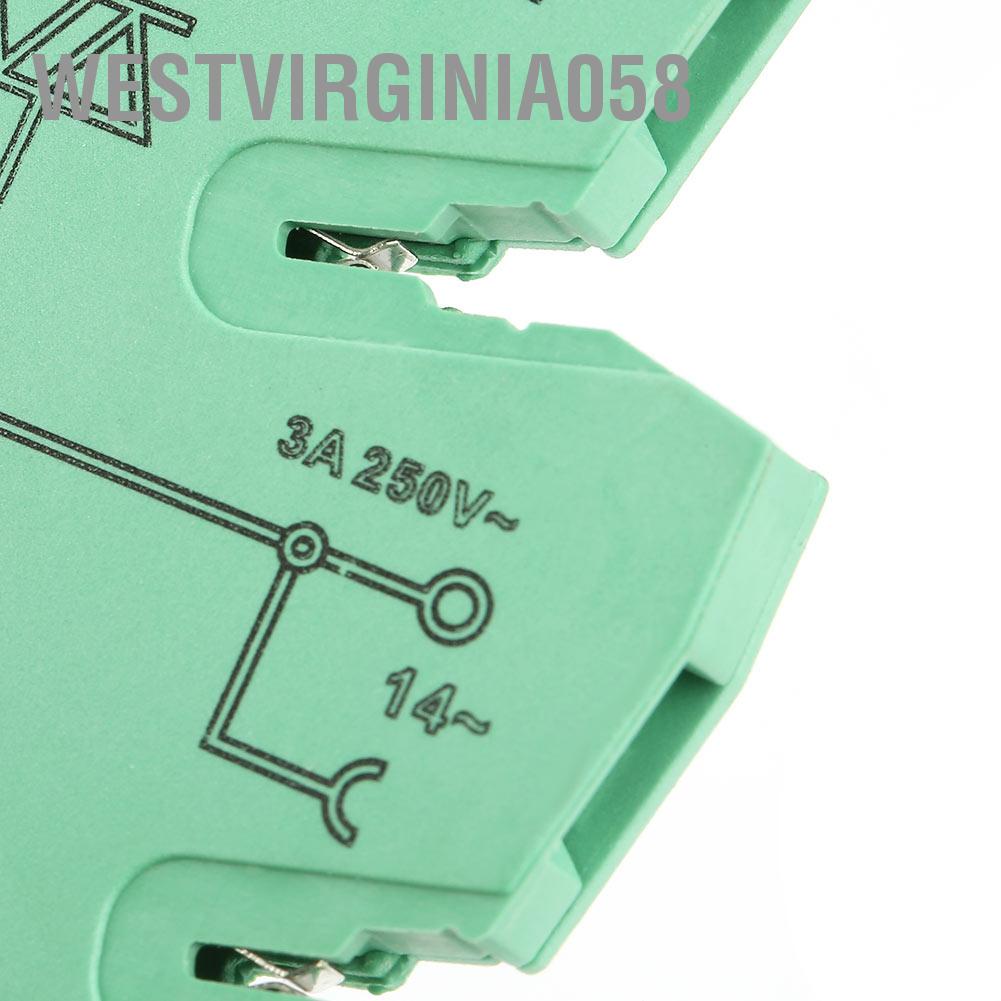

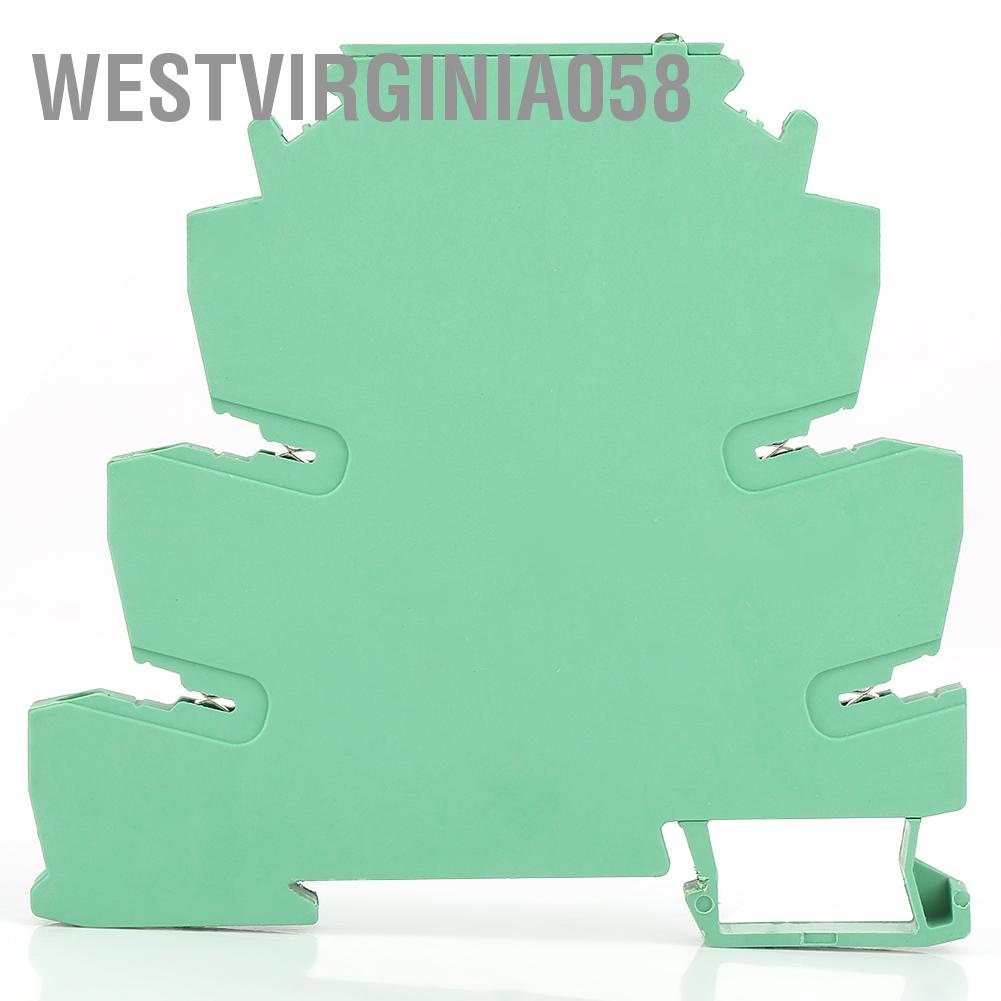

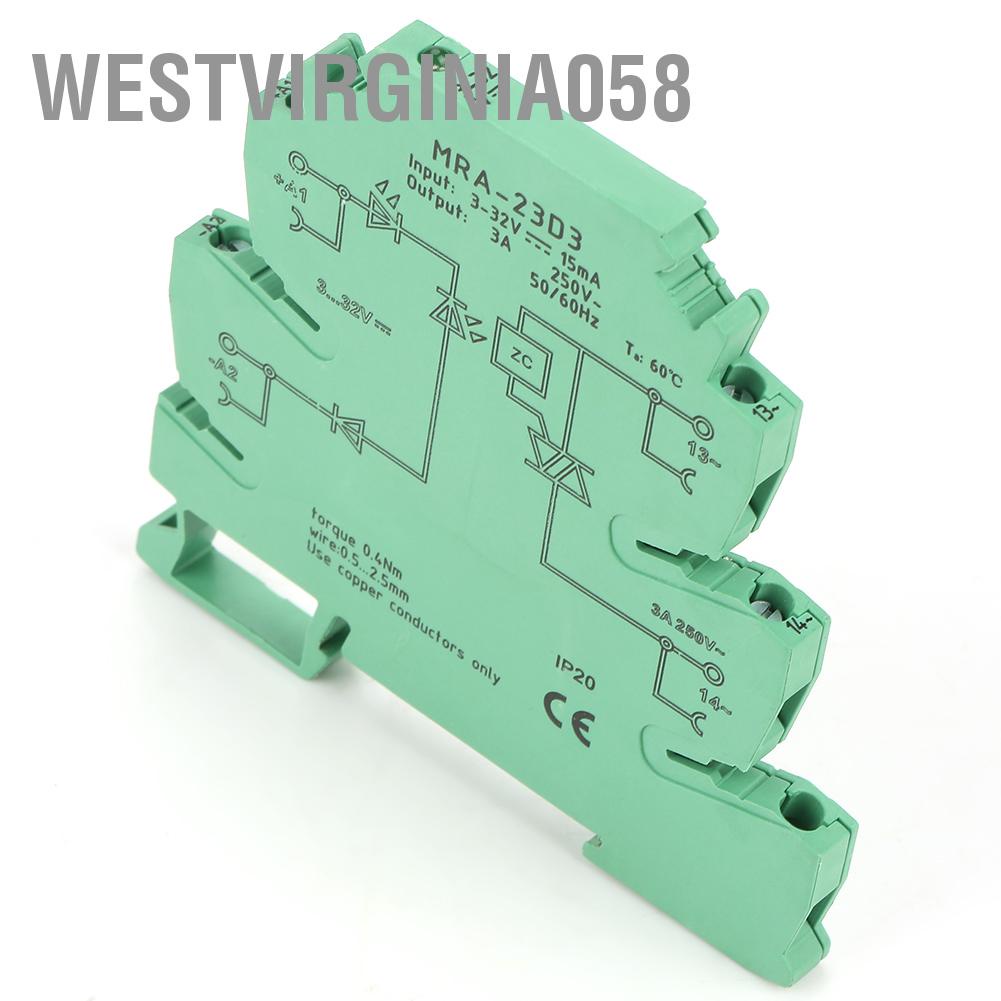

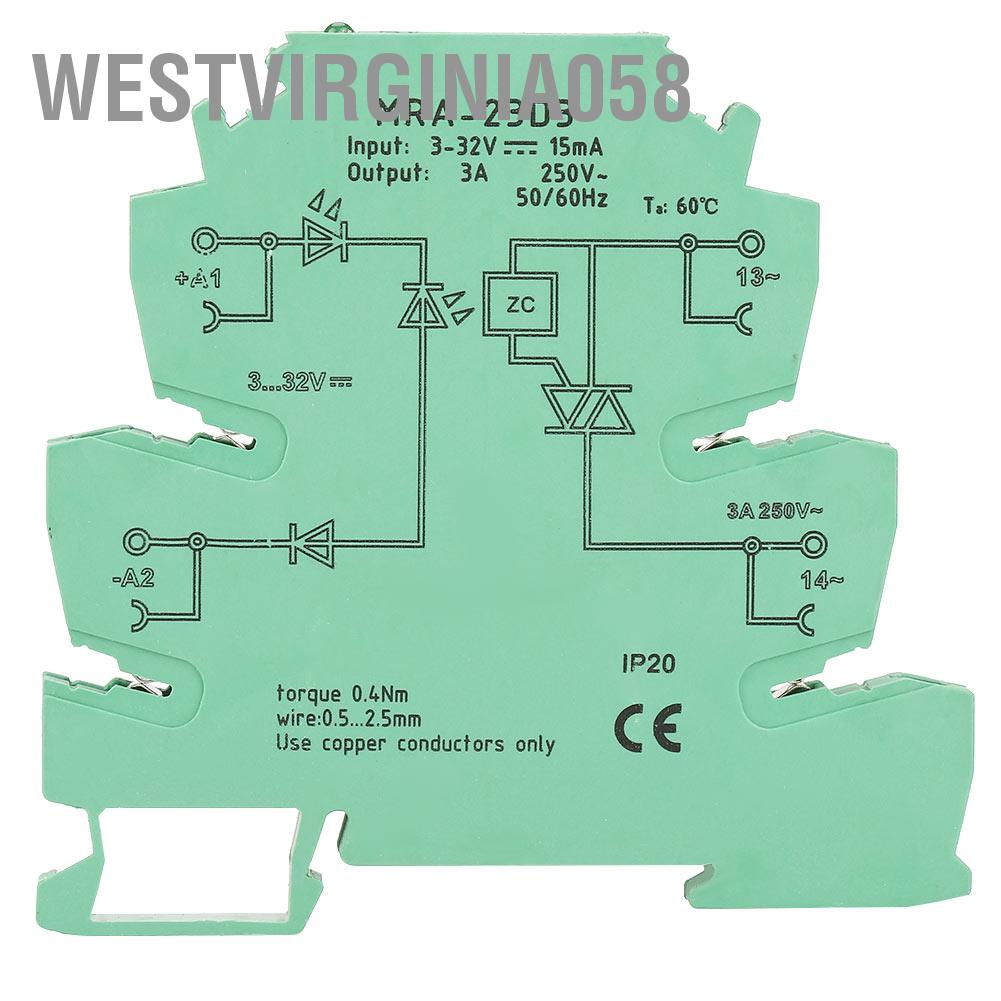

Westvirginia058 MRa 23D3 Ultra Thin PLC Relay Power Amplifier Board AC Solid State Module
