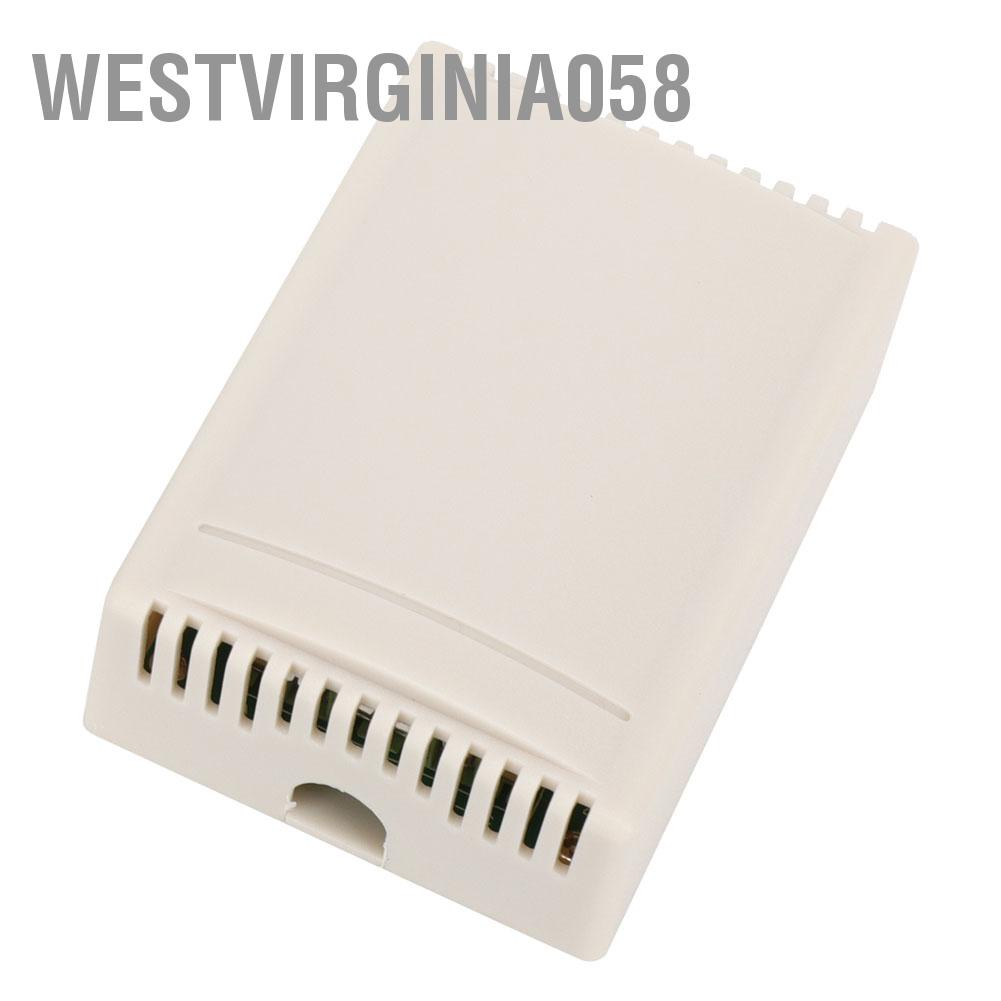

Westvirginia058 Wireless Remote Control Module Motor CW CCW Switch 1 to 3 Dual Channel

Giới thiệu Westvirginia058 Wireless Remote Control Module Motor CW CCW Switch 1 to 3 Dual Channel

@Dear master, it's been a long time for you, welcome to Xiaoer's
industrial shop *westvirginia058*

❥(^_-)Welcome the owner to pay attention to Xiaoer's industrial shop, we will have more and more exquisite gifts waiting for the owner❥(^_-)

❥#This shop has enough stock, the owner can add and place an order if he finds his favorite products. The owner is also welcome to collect this shop#❥

%#After the owner places the order, Xiaoer will deliver the goods quickly#The quality and quantity will be delivered to the owner#%

❥(^_-) If you place an order for this shop again or again, you will get more benefits. Xiaoer looks forward to your additional purchase and order❥(^_-)

------------------------------------Welcome Host-------------------------------------
Seller information & Disclaimer:
Company name：Shenzhen Huotong Bafang Cross-border E-commerce CO., Ltd
Address：Room 310, No 2007, Baoyuan Road, Labor Community, Xixiang Street, Baoan District, Shezhen
Business license number: 91440300MA5G3KT301
Any issue could directly contact us via shop web chat!

Disclaimer: We will take all the responsibility for the goods shipping not Shopee.

Feature:
1. Applicable to household electric lights, motors, electric switch doors, rolling doors, retractable doors, etc.
2. Stable performance, small size, high receiving sensitivity.
3. Wireless intelligent remote control system for multiple using scenarios.
4. With 2 relays, the equipment to be controlled can reach the forward and reverse rotation of the motor, or the on/off switching of the switch and various special control procedures. The product has the characteristics of stable performance, small size and high receiving sensitivity.
5. Mainly used in electric door, window, lifting equipment, gateway, lifter, industrial control and security industry, etc., it can be combined with remote control to form a complete wireless intelligent remote control system. It is widely used, especially for wired. Door and window control systems and anti-theft alarms enable wired to wireless system switching.
6. The receiver is powered by 12V. The default is an independent relay semaphore output (ie, no voltage output). The output terminals are normally open, normally closed, and common (no voltage).

Specification:
Item Type:Remote Control System
Working voltage: DC12V
Static working current: ≤6mA
Working temperature: –20°C to +60°C
Receive sensitivity: 3-105dBm
Working frequency: 433MHz
Size:68 x 48 x 16.8mm / 2.68 x 1.89 x 0.66in
This switch can be applied to the following two occasions.
1. With 12V voltage output, this only needs to draw a positive line from the input terminal to the common terminal and then share the input negative line to directly control the 12V device!
2. Directly connect the normally open end and the common end of the output side to other voltage circuits to control its opening and closing! (Recommended control vol
