Description:

Features:
100% brand new and high quality.
About Working mode:
- Momentary: Push the remote button, the relay connects, release the remote button, the relay dis-connects.
- Toggle: Push once the remote button , the relay connects , push twice the remote button , the relay dis-connects .
- Latching: Push the remote button A, the relay connects, push the remote button B, the relay dis-connect.
- Time delay mode: Push the remote control button, the relay connects, from when release the remote button, after 5s or 10s or 15s, the relay disconnect automatically.

Clearing the code :
Push the learning button on the receivers for 8 times , the codes will be cleaned.
After clearing the code, all the remote control cannot work any more.

1. Learning the code: (Momentary)
Push the learning key on the receiver once time, it comes into momentary setting mode.
Wait for a moment, the LED will be off , it comes into learning state.
Push the remote button, LED indicator on the receiver board will flash then come off.
After 3 seconds, the LED indicator will be on again, learning successfully.
2. Learning the code: ( Toggle )
Push the learning key on the receiver twice time , it comes into toggle setting mode
Wait for a moment, the LED will be off , it comes into learning state .
Push the remote button, LED indicator on the receiver board will flash then come off.
After 3 seconds , the LED indicator will be on again , learning successfully .
3. Learning the code: ( Latching )
Note: When you choose for latching mode , in order to learn more remote control, you need to learn two different button, the first time learnt is for ""ON"", the second time learnt for ""OFF"".
For example: button A = ON , button B = OFF
Push the learning key on the receiver triple time , it comes into latching mode.
Wait for a moment, the LED indicator on the receiver board will flash then come off.
Push the remote button A.
LED flash for 5 times.
Push the remote button B.
LED flash for 5 times.
After 3 seconds , the LED indicator will be on again , learning successfully.
A = ON , B = OFF .

Specifications:
Material: Plastic + Metal
Color: Black

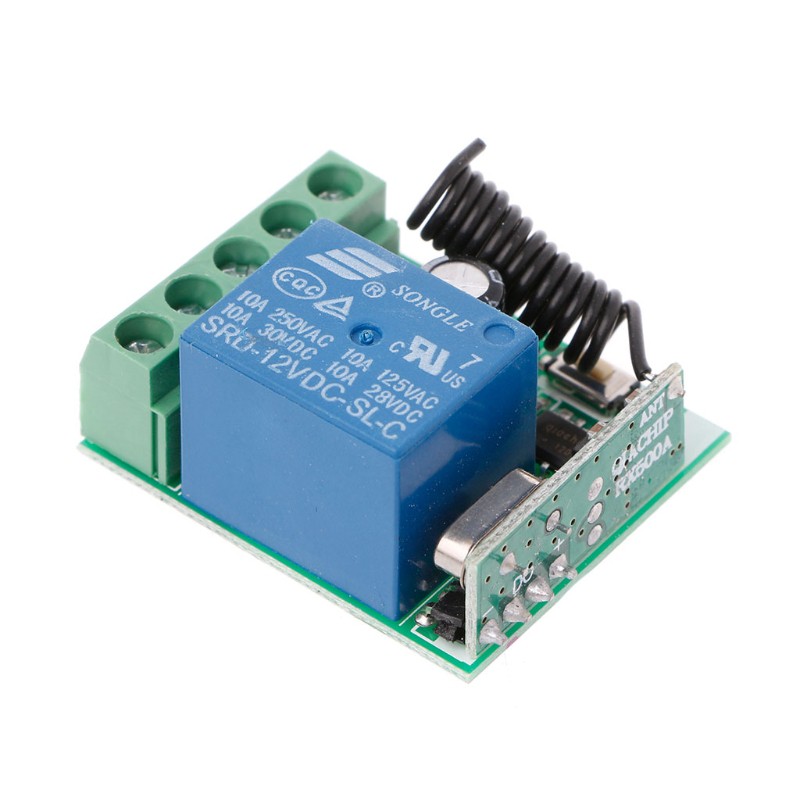

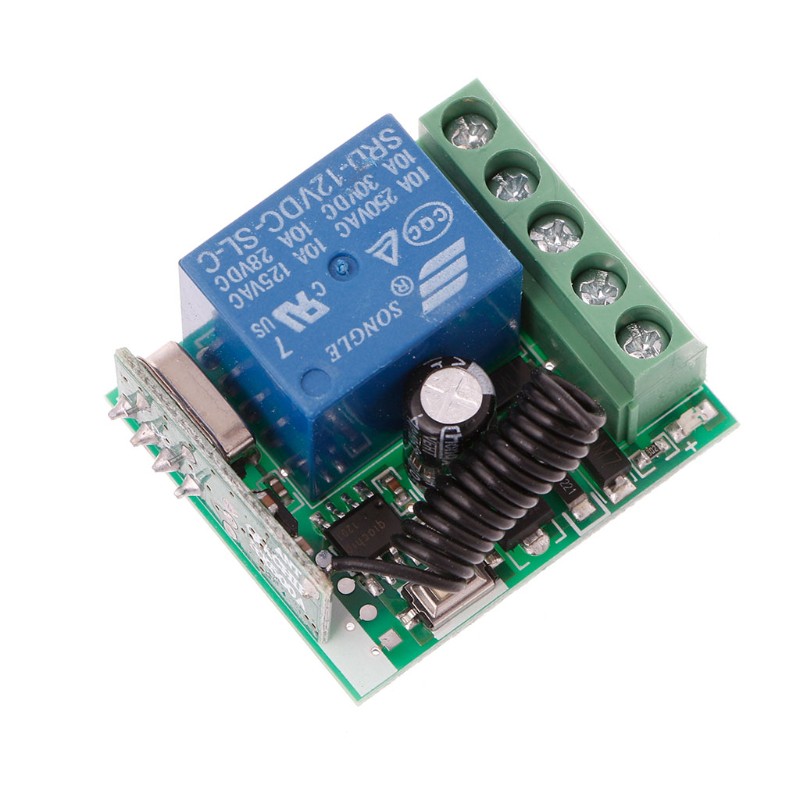

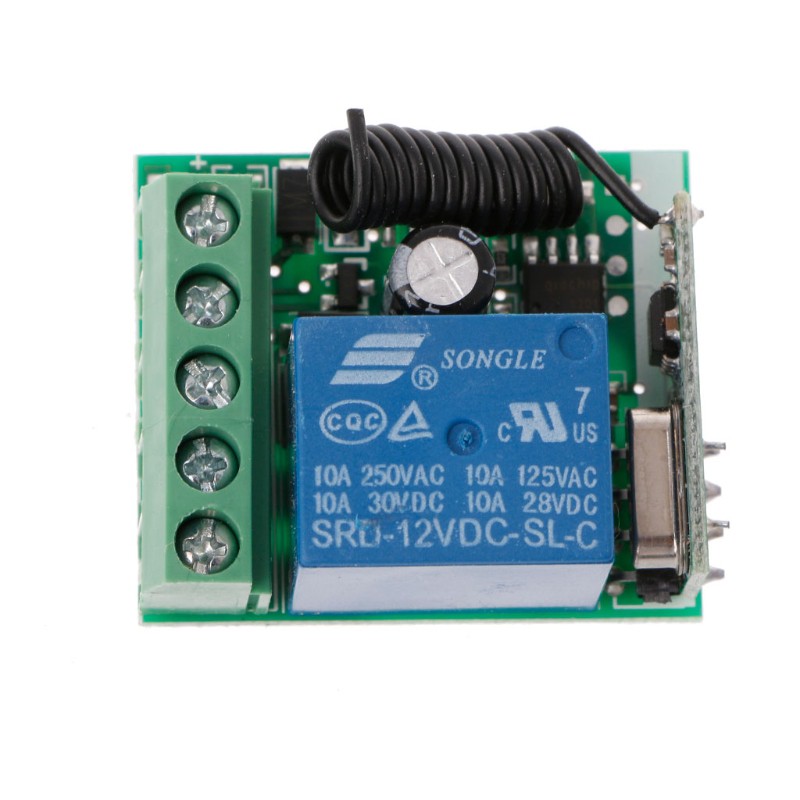

Dimension of PCB: (L×W×H) 35×30×18mm/1.38×1.18×0.71in (Approx.)
Input Power: DC10V-14V
Standby Current: <5MA
RF Frequency: 315M or 433M
RF working mode: superheterodyne
Receive sensitivity: >97dbm
Transmitting distance: >100m ( open space)
Decoding mode: MCU software decoding
Remote storage: 25pcs
Support remote type: Learning code, Fixed code(Rolling code can be design)
Working mode: Momentary, Toggle, Latching Time delay (5s ,10s ,15s )
Wiring type: fixed terminal

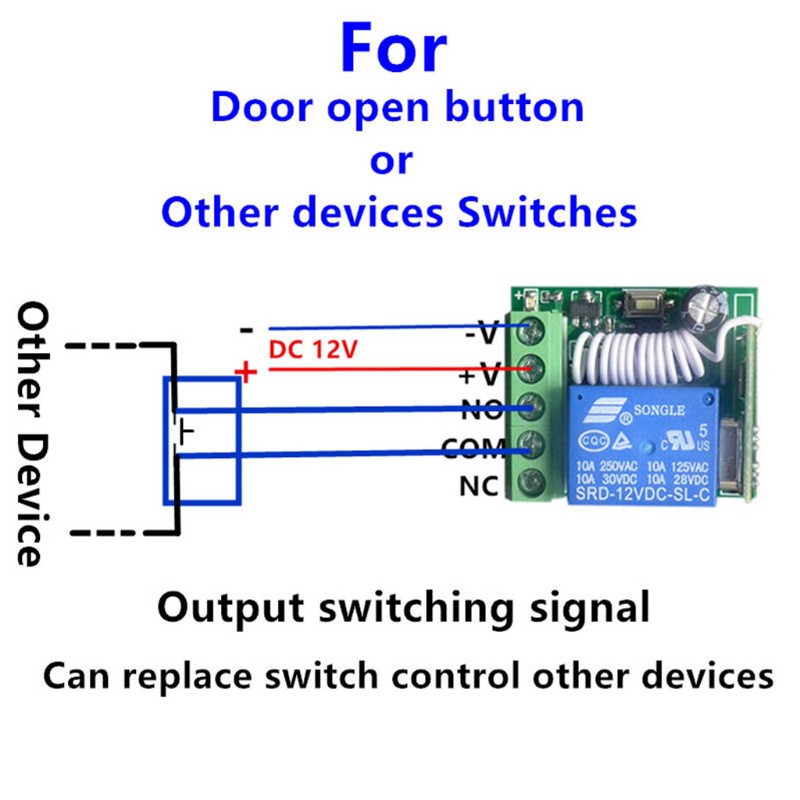

Output Terminal: NO , NC , COM
Quantity: 1 Set (other accessories demo in the picture is not included)

Package includes:

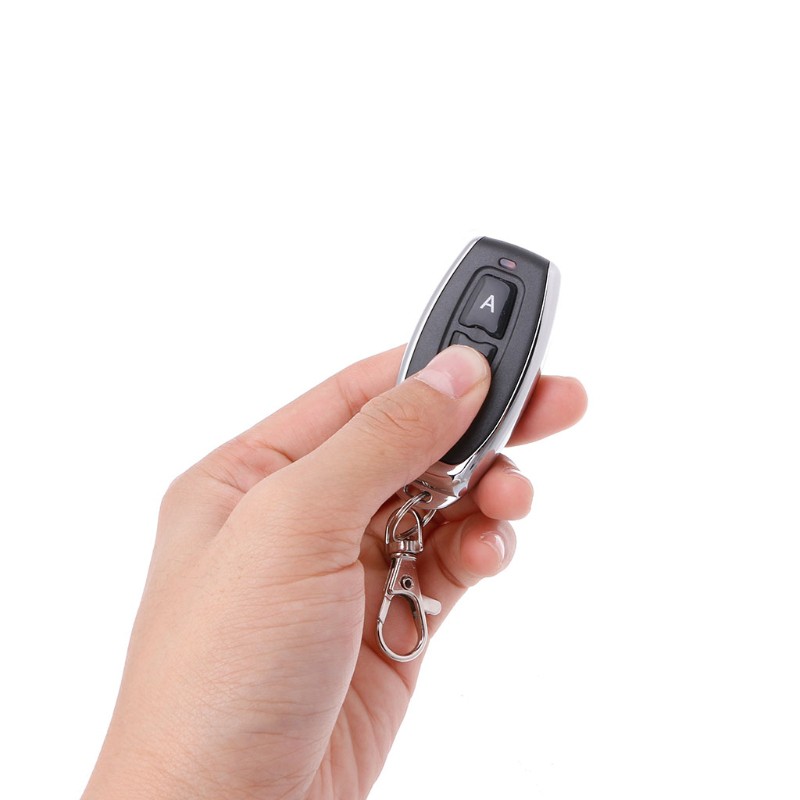

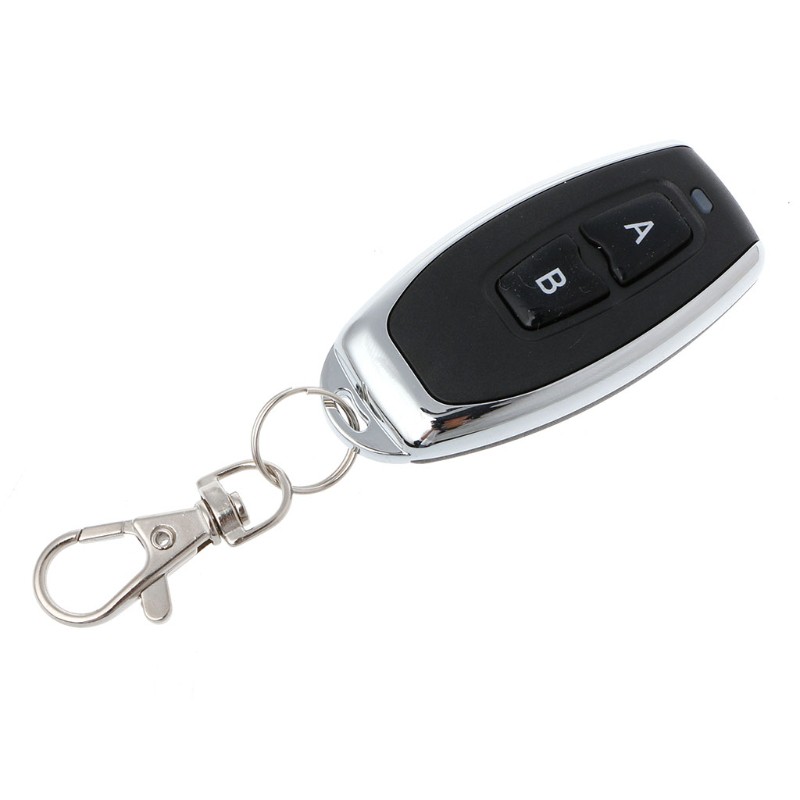

2 X Remote Control Transmitter(including battery) (No retail package)

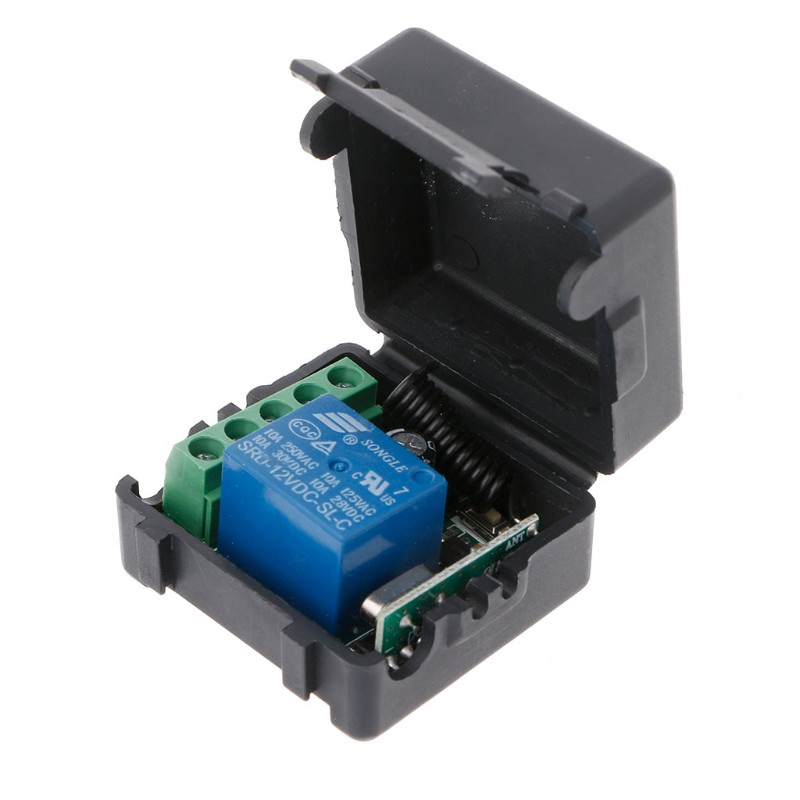

1 X Remote Receiver Module (including Shell)"
