Giới thiệu Wisconsin059 Aviation Plug Socket Durable Stable Safe Reliable Corrosion Resistance Connector for Program Controlled Machines
★Dear customer, welcome to wisconsin059.★★Our shop is dedicated to industrial supplies and security equipment, our vision is to help people improve their productivity and provide people with good security equipment.★
★Hope our products can help you.★
★Follow the store to get more benefits.★
Seller information & Disclaimer:
Company name：Shenzhen Huotong Bafang Cross-border E-commerce CO., Ltd
Address：Room 310, No 2007, Baoyuan Road, Labor Community, Xixiang Street, Baoan District, Shezhen
Business license number: 91440300MA5G3KT301
Any issue could directly contact us via shop web chat!
Disclaimer: We will take all the responsibility for the goods shipping not Shopee.
Feature:

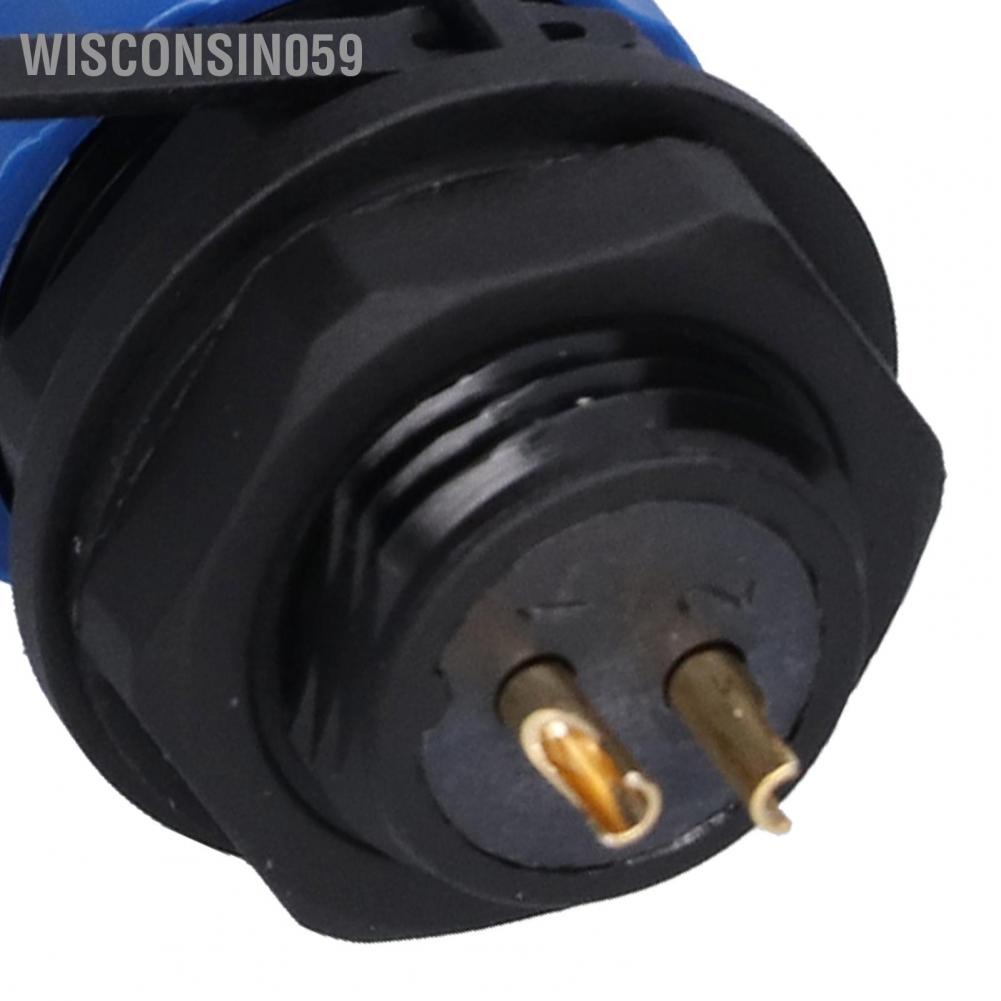

1. LONG SERVICE LIFE: This socket is not a hollow pin, which is resistant to plugging and unplugging, is made of pure copper and gold plated, with oxidation resistance and long service life
2. SAFE and RELIABLE: The shell is made of PA66 and PA6 materials, which has corrosion resistance and flexibility, and will not cause the safety hazard of cracking due to low temperature
3. VARIETY of
Specifications: A variety of specifications of core numbers are available to meet the needs of use. This is a 380V 10A SP16 rear nut IP68, and is also an for M16 x 1.5mm/0.06in aviation connector
4. ELECTRIC SOLDERING IRON WELDING: This socket uses electric soldering iron welding method for conductive wire connection to ensure that the connection is firmer and more convenient to use

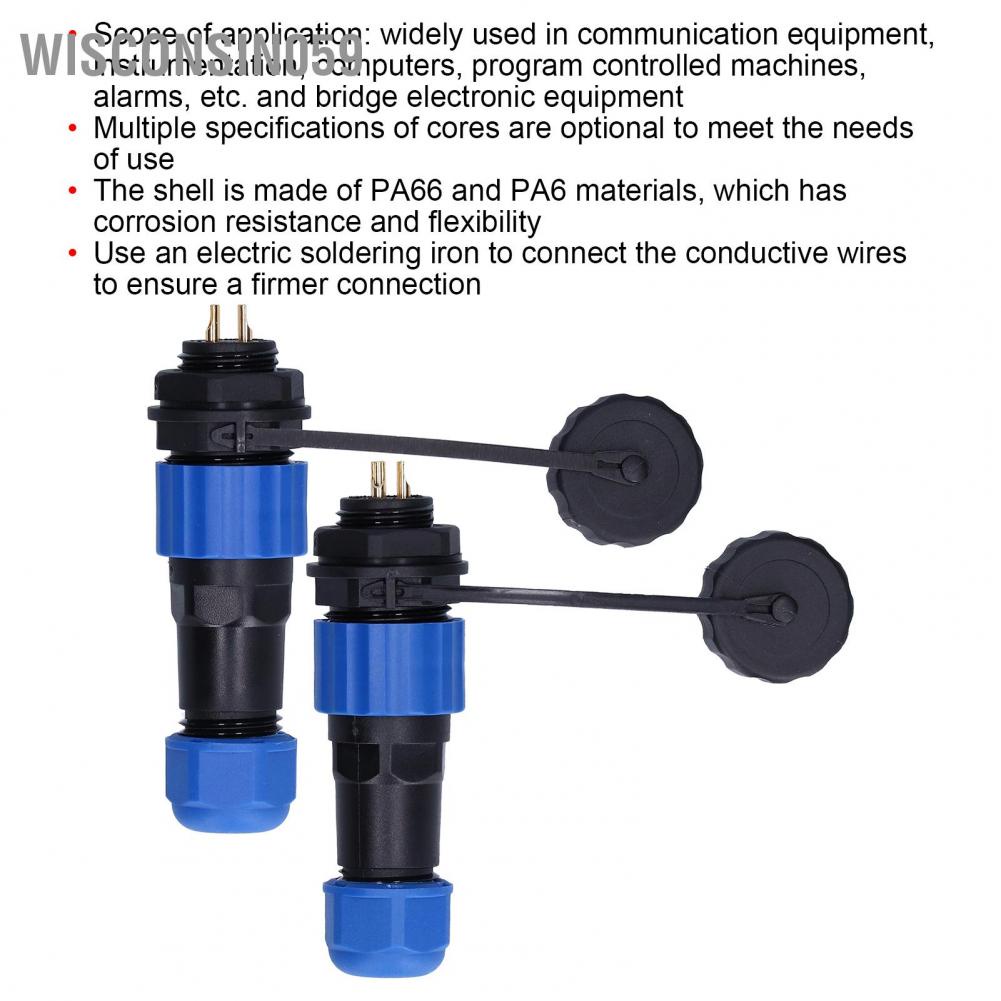

5. SCOPE of APPLICATION: Widely used in communication equipment, instrumentation, computers, program controlled machines, alarms, etc. and bridge electronic equipment
Specification:
Item Type: Aviation Plug Socket
Material: PA66, PPS, Silica Gel, Copper
Uses: Widely Used in Communication Equipment, Instrumentation, Computers, Program Controlled Machines, Alarms, Etc. and Bridge Electronic Equipment
Shell Material: PA66, PA6
Insulator: Thermoplastic PPS (high temperature resistant 220℃)
Contact Material: Copper (gold plated)
Connection Method: Soldering (if solder paste is used, it must be cleaned with alcohol)
Connection Method: Threaded Connection
Head Size: Approx. 16mm/0.6in
Thread
Specification:
For M16 x 1.5mm/0.06in
Insulation Resistance: 2000mΩ
Copper Needle Diameter: Approx. 1.8mm/0.07in
Applicable Wire Gauge for Copper Needle (mm²/AWG): ≤1.5/14
Rated Current: 10A
Working Voltage: 380V
Applicable Cables for Shell: Φ6~7.5mm²
Mating Times: More Than 500 Times
Operating Temperature Range: -25℃ to 85℃
Tightness: According with IP68
Package List:
1 x Male Aviation Plug Socket
1 x Female Aviation Plug Socket
