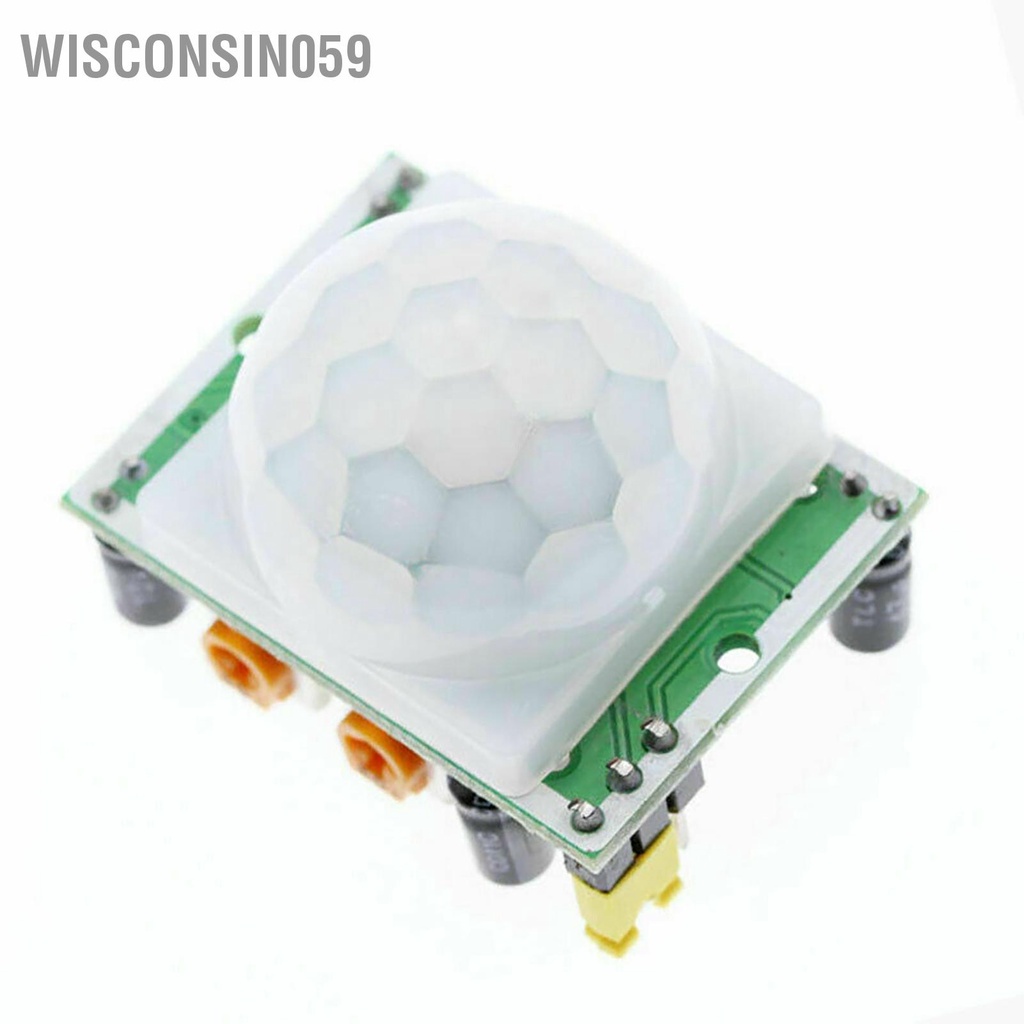

Giới thiệu Wisconsin059 Human Body Infrared Sensor PCB Micro Sensing Module for Industrial Automation Control
★Dear customer, welcome to wisconsin059.★★Our shop is dedicated to industrial supplies and security equipment, our vision is to help people improve their productivity and provide people with good security equipment.★
★Hope our products can help you.★
★Follow the store to get more benefits.★
Seller information & Disclaimer:
Company name：Shenzhen Huotong Bafang Cross-border E-commerce CO., Ltd
Address：Room 310, No 2007, Baoyuan Road, Labor Community, Xixiang Street, Baoan District, Shezhen
Business license number: 91440300MA5G3KT301
Any issue could directly contact us via shop web chat!
Disclaimer: We will take all the responsibility for the goods shipping not Shopee.
Feature:
1. Application: Can be widely used in security products, human body induction toys, human body induction lighting, industrial automation control, etc.
2. Quick Start: Automatic and quick turn on all kinds of incandescent lamps, fluorescent lamps, buzzers, automatic doors, electric fans, automatic washing machines and dryers and other equipment
3. High Performance: Automatic control module based on infrared technology, with high sensitivity, strong reliability and low voltage working mode, practical in daily life
4. PCB Material: Infrared sensor is made of PCB material, the working voltage is DC5V to 20V, and the static power consumption is less than 60 microamps
5. Basic
Specifications:
Level output is high 3.3V, low 0V, the delay time is adjustable (0.3 seconds ~ 18 seconds), the blocking time is 2.5 seconds
Specification:
Item Type: Human Body Infrared Sensor
Material: PCB
Working Voltage: DC5V to 20V
Static Power Consumption: Less than 60 Microamps
Level Output: High 3.3V, Low 0V
Delay Time: Adjustable (0.3s ~ 18s)
Blocking Time: 2.5s
Trigger Mode: L is not repeatable, H is repeatable, the default value is H
Induction Range: Less than 120 degrees cone angle, within 7 meters
Working Temperature: -15~+70℃
PCB Size: Approx. 32 x 24mm / 1.26 x 0.94in, Screw Hole Distance: Approx. 28mm / 1.10in, Screw Hole Diameter: Approx. 2mm / 0.08in
Induction Lens Size: Approx. 23mm / 0.90in (diameter)
Package List:
1 x Infrared Sensor
