Xi lanh khí nén mini MAL 16mm x 50/100/150/200mm hoạt động kép thanh đơn
Mô tả ngắn
Nhà Cửa & Đời Sống > Ngoài trời & Sân vườn > Thiết bị làm vườn lớn > Xi lanh khí nén mini MAL 16mm x 50/100/150/200mm hoạt động kép thanh đơn
- Giao hàng toàn quốc
- Được kiểm tra hàng
- Thanh toán khi nhận hàng
- Chất lượng, Uy tín
- 7 ngày đổi trả dễ dàng
- Hỗ trợ xuất hóa đơn đỏ
Giới thiệu Xi lanh khí nén mini MAL 16mm x 50/100/150/200mm hoạt động kép thanh đơn
#MAL #16mm #x #50/100/150/200mm #Single #Rod #Double #Acting #Mini #Pneumatic #Air #CylinderMAL 16mm x 50/100/150/200mm Single Rod Double Acting Mini Pneumatic Air Cylinder
Features:
100% brand new and high quality.
More durable for your cars' daily use.
Adjustable cushion on both cylinder end covers to make sure the cylinder works very smoothly, safly and with low noise.
With self-lubricating bearing, the piston rod is lubrication free.
It is widely applied to the automatic equipment in light industry, chemical industry, textile industry, electronic and machinery industry.
Product Description:

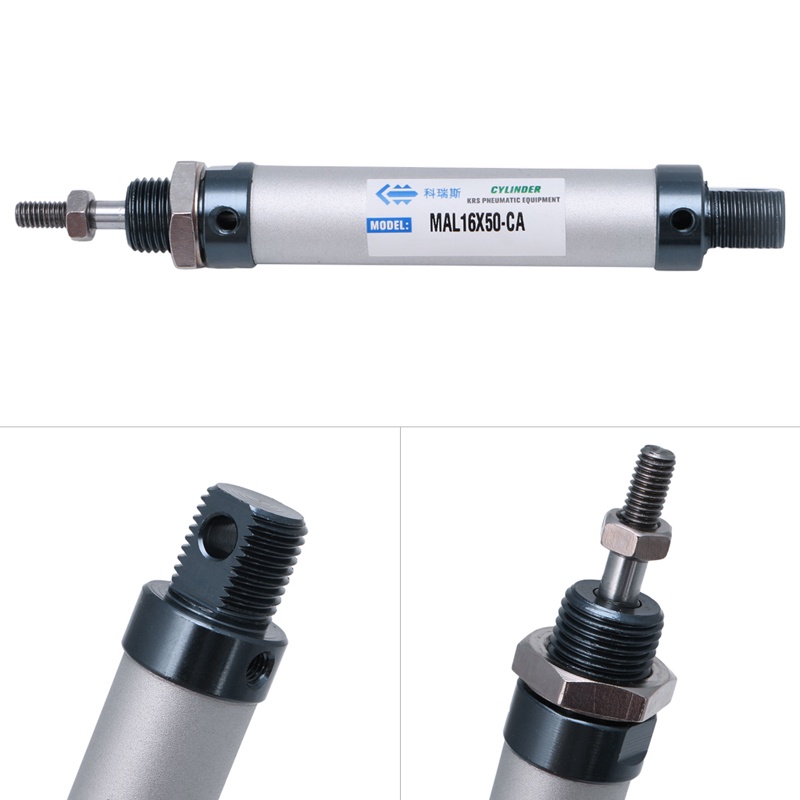

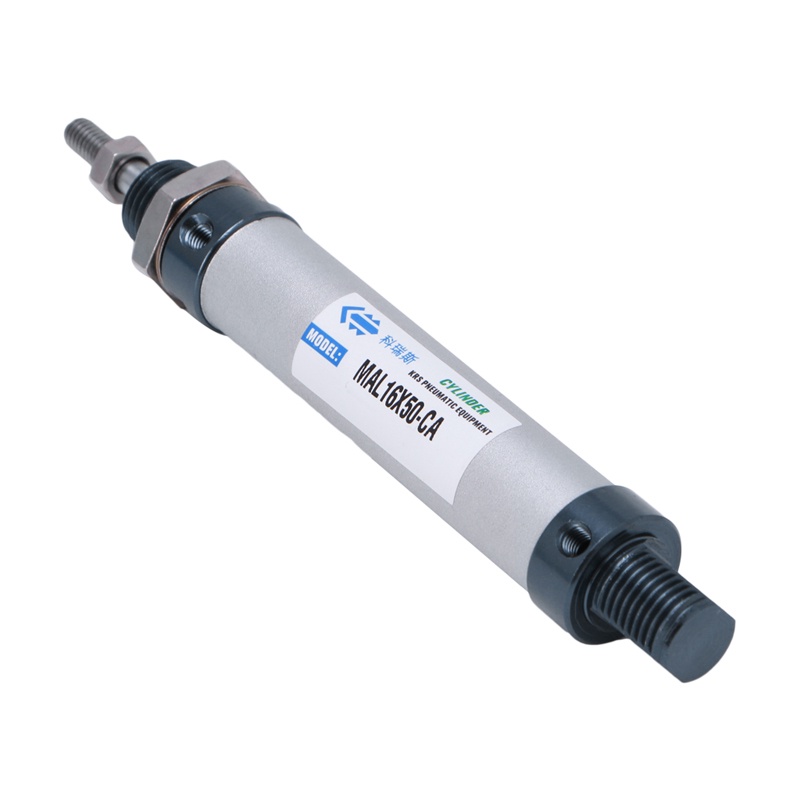

Model: MAL 16 x 50-CA
Action Type: Double Action
Rod type: single rod
Fluid: air
Bore: 16MM
Stroke: 50mm
Piston rod thread: M6 * 1
Screw diameter: 6mm
End cap thread. : 16mm * 1.5
Working pressure: 0.15-1MPA
Weight: 107g
Length: 17.6cm / 6.93 ''
Material : Aluminum Alloy
Model: MAL 16 x 100-CA
Action Type: Double Action
Rod type: single rod
Fluid: air
Bore: 16MM
Stroke: 100mm
Piston rod thread: M6 * 1
Screw diameter: 6mm
End cap thread. : 16mm * 1.5
Working pressure: 0.15-1MPA
Weight: 135g
Length: 21cm / 8.27 ''
Material : Aluminum Alloy
Model: MAL 16 x 150-CA
Action type: double action
Rod type: single rod
Fluid: air
Bore: 16MM
Stroke: 150mm
Piston rod thread: M6 * 1
Screw diameter: 6mm
End cap thread. : 16mm * 1.5
Working pressure: 0.15-1MPA
Weight: 162g
Length: 25.5cm / 10.04 ''
Material : Aluminum Alloy

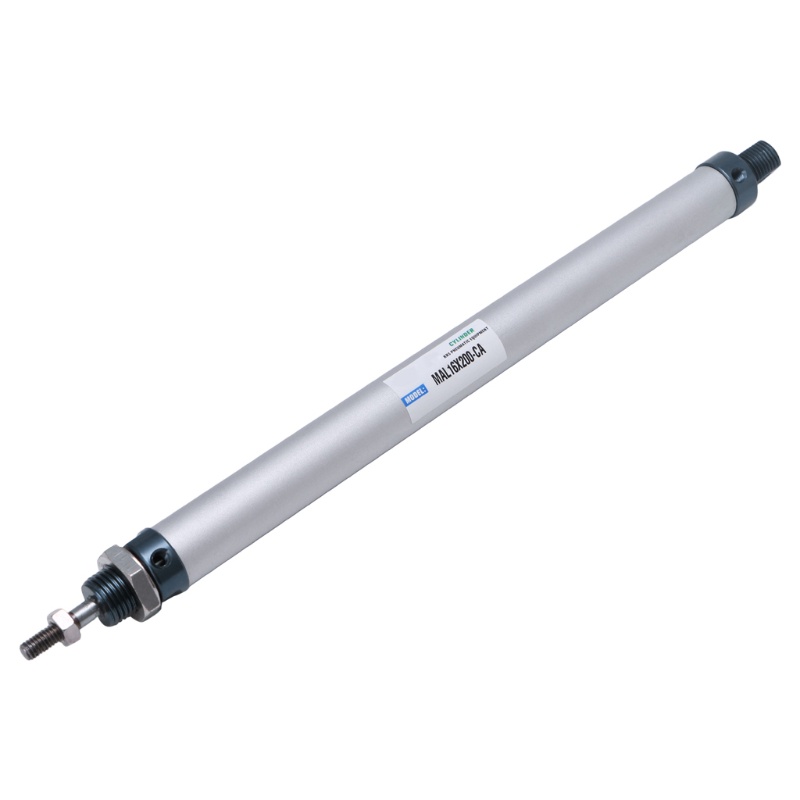

Model: MAL 16 x 200-CA
Action type: double action
Rod type: single rod
Fluid: air
Bore: 16MM
Stroke: 200mm
Piston rod thread: M6 * 1
Screw diameter: 6mm
End cap thread. : 16mm * 1.5
Working pressure: 0.15-1MPA
Material : Aluminum Alloy
Weight: 190g
Length: 31cm / 12.2 ''
No Retail Packages
Quantity: 1Pc
Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Packing list:
1 * Air cylinder
